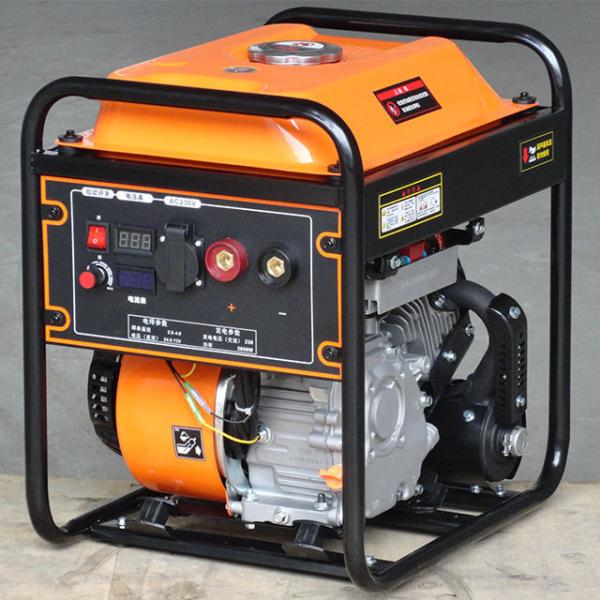

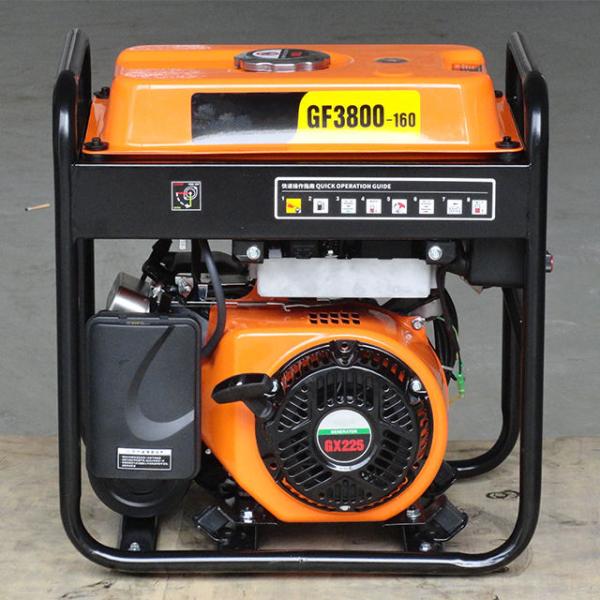

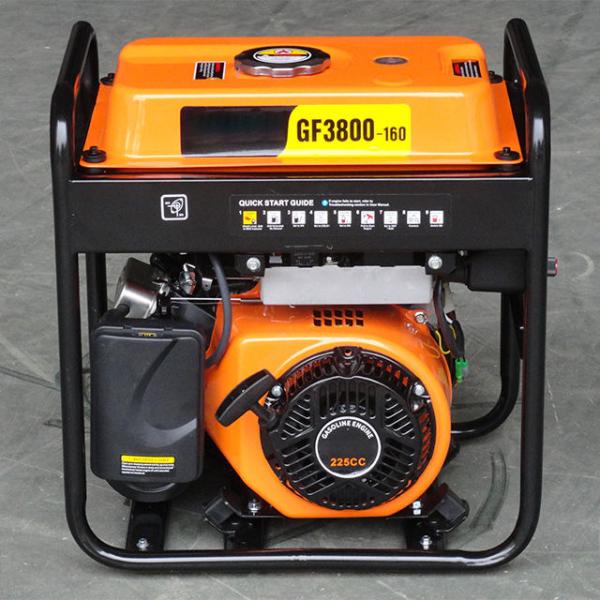

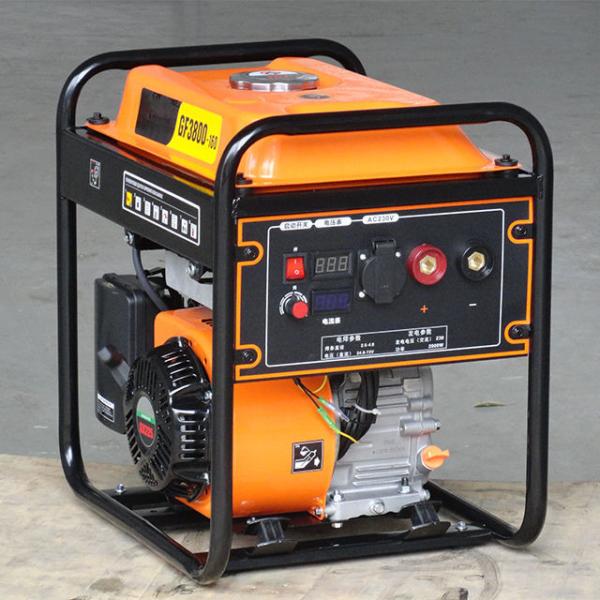

2kW Gasoline Welding Generator with Recoil Start 225cc
2kW Gasoline Welding Generator with Recoil Start 225cc
2kW Gasoline Welding Generator with Recoil Start 225cc
2kW Gasoline Welding Generator with Recoil Start 225cc
2kW Gasoline Welding Generator with Recoil Start 225cc
2kW Gasoline Welding Generator with Recoil Start 225cc
2kW Gasoline Welding Generator with Recoil Start 225cc
2kW Gasoline Welding Generator with Recoil Start 225cc
Specifications
Brand Name :
RDC
Model Number :
KN3800-A
Certification :
CE,EPA
Place of Origin :
China
MOQ :
1 sets
Price :
276-418 usd/set
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
1000 set/moth
Delivery Time :
5-15 days
Speed :
4200RPM,3000RPM, 800RPM, 1000RPM, 1500RPM
Output Power :
AC2kW
Starting system :
Auto Start, Recoil Start, remote start
Displacement :
225cc
Cooling System Type :
Air cooling System
Voltage :
12V DC Electric Start, 24V DC Electric Star
Package Size :
495*410*520mm
Description

Gasoline Welding Machine Lightweight Recoil Start Petrol Generaor

Gasoline electric welding generators are specifically designed for construction sites and other environments where reliable power sources are unavailable or impractical. Its compact and lightweight design makes it highly portable, making it easy to transport and install in remote areas or challenging terrains.
The generator is equipped with a powerful 170 type engine, which ensures stable performance even under harsh conditions. It can handle welding tasks with a current range of 160A and accommodate electrodes of various sizes, including 3.2mm and 4.0mm, enabling it to meet different welding requirements. For projects that require higher current, larger models can be used to meet expansion needs.
In addition, the generator panel is equipped with a built-in 2KW DC220V power supply, providing additional versatility by supporting small tools and equipment such as carbon brush power tools and lighting equipment. This makes it a valuable asset for construction workers, maintenance personnel, and emergency responders who require reliable power sources on site. Whether it's on-site maintenance, infrastructure development, or disaster recovery work, this gasoline electric welding generator can provide a practical and efficient solution for the electricity needs in the most challenging environments.

Model KN3800-A
Current Regulation Range 70-160A
No-load Voltage 55-65V
Operating Voltage 22-28V
Welding Method Hand Arc Welding
Load Persistence Rate 0.6
Electrode Range (Φ) 2.5-3.2
Output Voltage 120V/220V/240V
Output Power AC2kW
Working Status Continuous
Engine Model 170F-2
Fuel Capacity 10L
Lube Oil Capacity 0.6L
Fuel Type 90# Unleaded petrol
Lube Oil Type SAE10W30
Starting System 225cc
Ignition Method Inductive discharge type
Displacement Recoil
N.W. 29kg
G.W. 31kg
Package Size 495*410*520mm
