Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Specifications
Brand Name :
RDC
Certification :
CCC
Place of Origin :
China
MOQ :
1 set
Price :
usd 580-780 /sets 1-29 sets
Payment Terms :
D/A,D/P,T/T
Material :
Cast Iron
Model :
W3.0/0.35-1.6-WY
Flow :
3.6-5.4 m³/h
Power :
1.5kw-2.2kw
Power Source :
Electric
Description

Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank

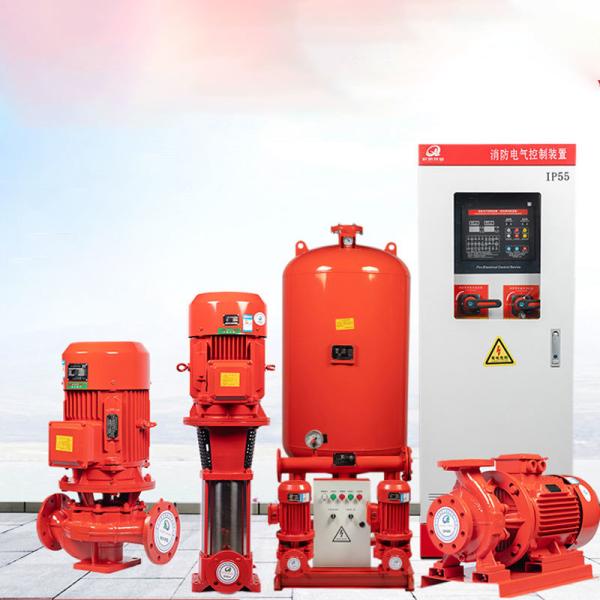

Did you know that the fire-fighting pressure stabilizing equipment is the "heart monitor" of the fire-fighting system in high-rise buildings. It consists of a pressure stabilizing pump, a diaphragm air pressure tank and an intelligent control cabinet. Its core task is to maintain the pressure of the fire-fighting network stable 24 hours a day.


Daily pressure stabilization:


The fire-fighting network will cause the pressure to slowly drop due to micro-leakage of valves (such as 1%-3% of water leakage per day)1. When the pressure drops to the lower limit (such as P3=0.26MPa), the fire-fighting booster and pressure-stabilizing pump automatically starts to replenish the pressure; it stops 410 after rising to the upper limit (such as P4=0.31MPa).

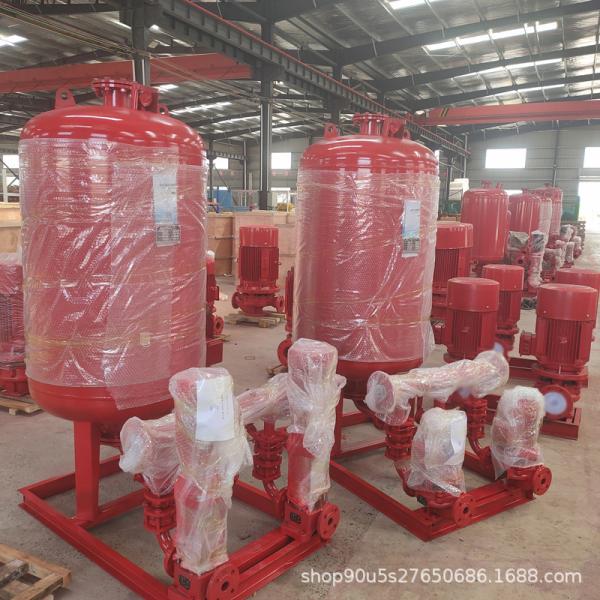

The air pressure tank acts as a "pressure buffer": the internal rubber diaphragm isolates the air from the water, and the air bag expands to squeeze out the water to replenish the pressure when the network is depressurized, reducing the frequent start and stop of the pump (≤15 times per hour)15.


Fire emergency:


When a fire occurs, the fire hydrant uses a large amount of water, causing the pressure to drop sharply. When the pressure drops to the starting value of the fire main pump (P2=0.16MPa), the equipment instantly sends a signal to start the fire main pump, and the pressure-stabilizing pump stops at the same time. The 300L of water (about 30 seconds of use) stored in the air pressure tank ensures that the fire water is sprayed out as soon as possible to extinguish the golden fire


Power(kw) Flow( m³/h ) Head( m ) Pressure tank
1.5 3.6 30 600
1.5 3.6 30 800
1.5 3.6 30 1000
2.2 5.4 30-40 600
2.2 5.4 30-40 800
2.2 5.4 30-40 1000

Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank

Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank


Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
Cast Iron Fire Booster Pump Pressure-stabilizing System With Pressure-stabilizing Tank
