Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Specifications
Brand Name :
RDC
Place of Origin :
China
MOQ :
1 set
Price :
usd 7055 /sets 1-29 sets
Payment Terms :
D/A,D/P,T/T
Material :
Cast Iron
Model :
W3.0/0.35-1.6-WY
Pump model :
XBD10.2/3.3W-GDL
Flow :
1-5L/s
Head :
50Mpa
Power Source :
Electric
Description

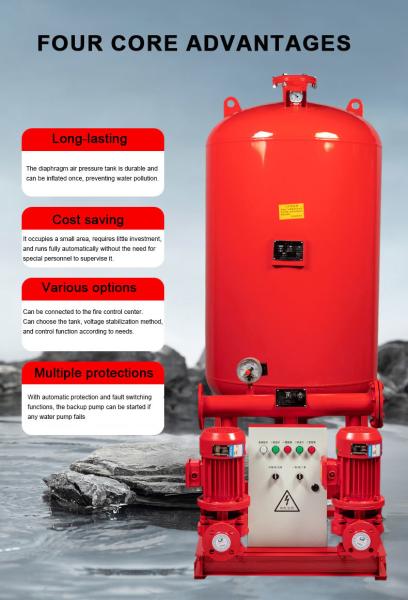

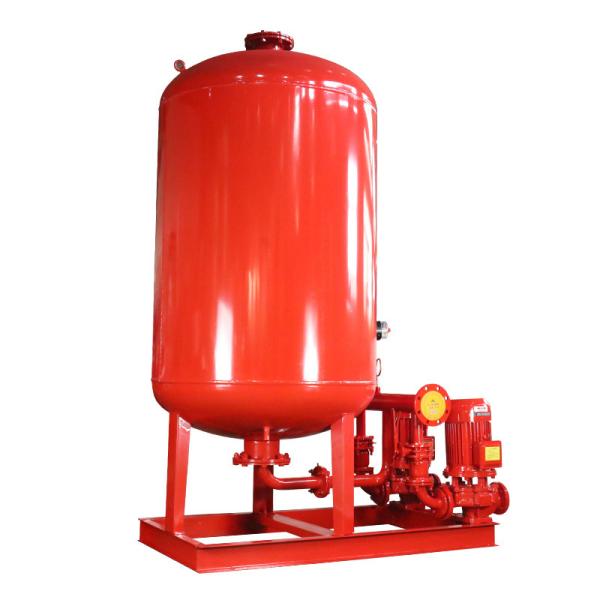

XW-ADL Fire Pressurization and Pressure Stabilization Water Supply Equipment

This equipment is specially designed to meet the pressure stabilization requirements of the fire water supply system and strictly follows national fire protection regulations such as GB 27898. The core consists of an efficient pressure stabilizing pump group, a pressure-resistant air tank and an intelligent control cabinet. By real-time monitoring of the pipe network pressure, the start and stop of the pressure stabilizing pump and the adjustment of the air and water volume of the air tank are accurately controlled to maintain the system pressure constant within the set working range (such as P1 ~ P2 MPa). It effectively solves the pressure attenuation problem caused by pipe network leakage and ensures that the fire protection pipe network is always in a quasi-working state. It has functions such as automatic switching of the main and standby pumps, fault alarm, pressure over-limit protection, automatic/manual control, and an optional remote monitoring interface, providing solid guarantees for the reliability and timely response of the fire protection system.


Core highlights: compliance with national standards, constant pressure principle (pressure stabilizing pump + air tank coordination), precise pressure stabilization range, core functions (automatic switching, protection, control), reliability, and quasi-working state guarantee.


Lift range: 30~150m
Supporting power range: Custom
Rated speed: 2900r/min
Power: 1.1KV-160KW
Flow 1.38L/s
Material: Ball milled pump body, stainless steel shaft
Certificate: CCC

Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System

Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System


Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Send your message to this supplier
Send Now

Fire Fighting Pressurization Pressure Stabilization Water Supply System

Ask Latest Price
Product Detail
Brand Name :
RDC
Place of Origin :
China
MOQ :
1 set
Price :
usd 7055 /sets 1-29 sets
Payment Terms :
D/A,D/P,T/T
Material :
Cast Iron
Contact Supplier
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System
Fire Fighting Pressurization Pressure Stabilization Water Supply System

Sichuan Readycome Trading Co., Ltd.

Verified Supplier
1 Years
sichuan, chengdu
Since 2012
Business Type :
Manufacturer, Seller, Distributor/Wholesaler
Main Products :
Home Reverse Osmosis Water Filter, RO Water Treatment System, Diesel Engine Fire Pump Set
Total Annual :
5000000-20000000
Employee Number :
50~100
Certification Level :
Verified Supplier
