Stainless Steel Stiletto Vertical Fire Pump 2HP Multistage Water Pressure Booster 500GPM Motor

Specifications

MOQ :

20 sets

Price :

USD 829/sets 20-29 sets

Place of Origin :

China

Payment Terms :

D/A,D/P,T/T

voltage :

220V-380V, Customized

Function :

Low Cost

Advantage :

High Performance

Material :

Stainless Steel 304/316

Usage :

Water supply system

Theory :

Booster Pumps

Standard or Nonstandard :

Standanrd

Application scope :

Water Pressurized

Feature :

Energy Saving

Tpye :

Frequency

Description

2HP Stiletto Fire Pump Vertical Multistage Water Pressure Booster 500GPM Motor Stainless Steel

Product Introduction

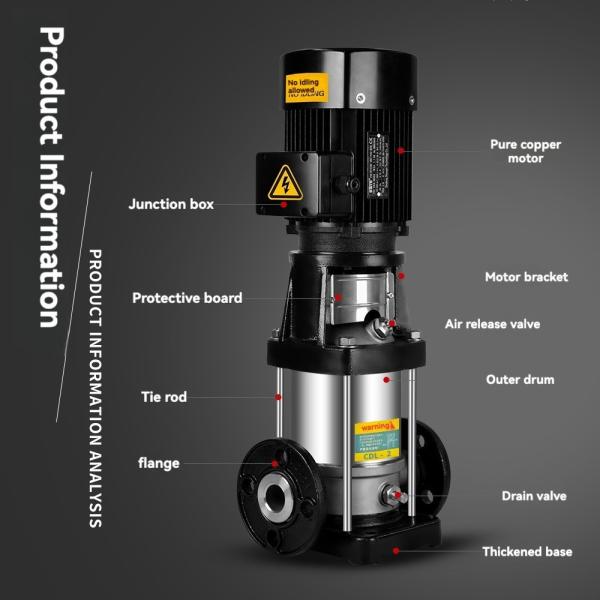

Feedwater pump is special in high pressure, made of stainless steel 304 or 316, all parts touch with liquid are of stainless steel. The pump is vertical non-self priming multistage centrifugal pump, which drived by a standard electric motor.The motor output shaft directly connects with the pump shaft through a coupling.
The pressure resistant cylingder and flow passagecomponets are fixed between pump head and inlet and outlet section with tie-bar bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload

High efficiency

Low noiseFree maintenance

Fullyenclosed structure,lP55, insula-tion grade F,all copper motor,unique"double locking" drive end bearingwhich can withstand higher inletpressure,achieve energy conservation and save water.

Cartridge seal

Quick replacement, easy installationand safe operationMechanical seal have the advantagesof high temperature resistance, longservice life and easy replacementthan ordinary seal.

Impeller with high strengthand high efficiency

Processing technology: precisioncasting, CNC lathe, machiningcenter, laser welding and othermodern technology.

High quality pump corecomponents

Multi-stage impeller interlocking.minimizes the gap between eachstage impeller, improves the hydrau-lic efficiency of impeller, and ensurethe stability, reliability and high effi-ciency of pump core components.

ower Space	220v//380v/600v can be customized.
Temperature:	-20℃~120℃
Type of connection	Flange/thread
Casing:	stainless steel can be customized.
Impeller Type:	Close Impeller
Size:	DN25~DN100
Maximum driver rating	0.37KW~45KW
