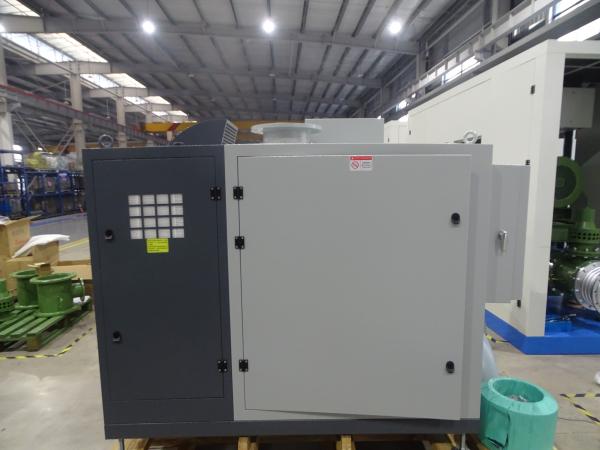

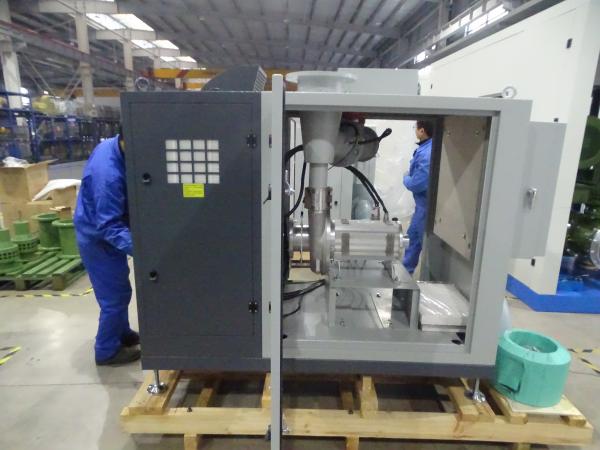

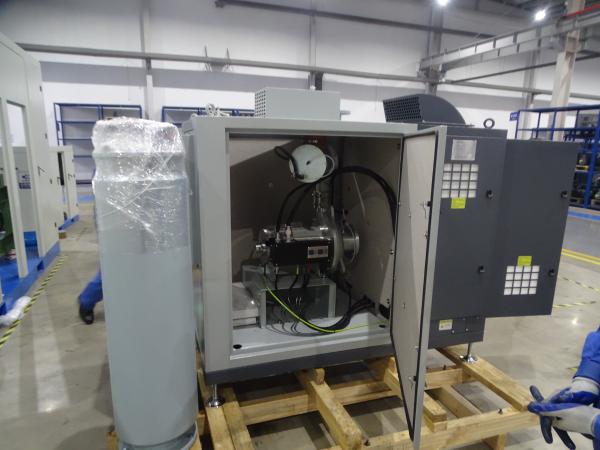

34-65m³/min DN250 40-90Kpa Magnetic Suspension Bearing Blower
34-65m³/min DN250 40-90Kpa Magnetic Suspension Bearing Blower
34-65m³/min DN250 40-90Kpa Magnetic Suspension Bearing Blower
34-65m³/min DN250 40-90Kpa Magnetic Suspension Bearing Blower
34-65m³/min DN250 40-90Kpa Magnetic Suspension Bearing Blower
34-65m³/min DN250 40-90Kpa Magnetic Suspension Bearing Blower
Specifications
Brand Name :
BK
Model Number :
MTB55
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
30 working days
Packaging Details :
exported standard wooden case
Model :
MTB55
Shaft Power :
47KW
Voltage :
380V/400V/415V/440V/Customized
Cable Specifications :
3*50+25/3*70+35
Noise Level :
<80
Output Dia. :
DN250
Cooling Method :
Air Cooling
Cabinet Layout :
All-in-one
Weight :
820kg
Pressure :
40-90Kpa
Volume of flow :
34-65 m³/min
Description

34-65m³/min DN250 40-90Kpa Magnetic Suspension Blower

The MTB Magnetic Suspension Centrifugal Blower integrates advanced magnetic levitation (Magnetic Suspension) technology with centrifugal

blower mechanics to create a high-efficiency, low-maintenance airflow solution.

Machine Specification

34-65m³/min DN250 40-90Kpa Magnetic Suspension Bearing Blower

Model MTB55
Shaft Power(kw) 47
Max Speed(rpm) 35000
Voltage(V) 380
Cable Specification 3*50+25/3*70+35
Noise Level(db) ＜80
Outlet Dia(mm) DN250
Cooling Method Air cooling
Layout Integrated
Weight(kg) 820
Set-up pressure(kpa) Airflow(m³/min)1atm,20℃
40 65
50 52
60 48
70 40
80 37
90 34
100
110
120

Main Characteristic

1,The male and female rotors of oil-free screw blower are precisely designed.Compared with roots blower,it can achieve internal compression in the cavity,with higher efficiency and 20% higher energy saving performance under the same energy consumption conditions.

2,Stable airflow,less airflow fluctuation when pressure changes.

3,Applicable to high pressure,low noise.

4,Available with PLC intelligent remote control and different communication methods,convenient for operation management.

Advantages

High Efficiency: Less friction operation reduces energy consumption comparing with the traditional blowers.

Low Maintenance: No lubrication or mechanical wear parts, minimizing downtime.

Quiet Operation: Reduced vibration and noise suits noise-sensitive settings (hospitals, labs).

Cleanliness: Oil-free design prevents contamination, ideal for semiconductors, pharmaceutical production and food processing.

Long Lifespan: Eliminates bearing wear, extending operational life.

Main Technology

34-65m³/min DN250 40-90Kpa Magnetic Suspension Bearing Blower

1,1,High speed permanent magnet motor

The high-speed motor adopts a permanent magnet synchronous motor. For each model of motor, secondary software and hardware development is carried out for the drive frequency converter, while optimizing the matching of reactors or filters. The efficiency of both the motor and frequency converter is higher than 97%, ensuring stable operation of the motor at low temperatures and high efficiency.

1,2,Pneumatic system

34-65m³/min DN250 40-90Kpa Magnetic Suspension Bearing Blower

Having over ten years of experience in the development and designing of impeller machinery. Each type

of impeller has undergone long-term bench tests to ensure its aerodynamic performance is efficient and

reliable.The impeller efficiency is over 87%. By adopting frequency conversion regulation, the guide

vane adjustment is eliminated, resulting a smaller starting current and a wider adjustable range

for the blower.

1,3,Cooling technology

The blower adopts coaxial air cooling technology, which does not require additional cooling system . The cooling system flow channel design is reasonable and the structure is reliable. This cooling design ensures that the blower maintains reliable performance in various environments and working conditions, making it more energy-efficient and reliable.

34-65m³/min DN250 40-90Kpa Magnetic Suspension Bearing Blower

1,4,Magnetic suspension bearing

Magnetic levitation bearings are a new type of bearing that uses magnetic force to achieve support. They are non-contact, non lubricated and sealed, low vibration, long service life, and low maintenance costs. By collaborating with outstanding domestic and international experts in magnetic levitation bearing design, we have accumulated years of experience in manufacturing and using magnetic levitation bearings. Combined with years of experience in high-speed impeller machinery rotor dynamics, we can provide users with efficient and stable magnetic levitation bearings.

1,

5,5,No performance reduction

Based on magnetic levitation bearing technology, there is no mechanical friction between the rotating and stationary parts during the operation of the motor, ensuring that the performance of the air compressor does not deteriorate due to component wear throughout its entire life cycle.

2,6,Passive safety design

By adopting the patented "passive safety+closed cycle water cooling" technology, the protection level and cooling efficiency of the motor have been greatly improved, which can meet the stable operation of various harsh environmental conditions such as cement and chemical industry.

Applications

1,Industrial: Wastewater treatment, pneumatic conveying, combustion air supply.

2,HVAC: Energy-efficient ventilation in large buildings.

3,High-Tech: Clean rooms, data centers, medical facilities.

4,Renewable: Fuel cells, energy recovery systems.
