Key Techonogy

1. Air Foil bearing

Air foil bearing is lubricated by air buoyancy. The use of air instead of lubricant can realize operation under higher temperature and speed. The advantages of air foil bearing structure include flexible start-up, low-cost operation, no mechanical friction, no need for lubrication oil, no vibration, lower noise and long service life (semi-permanent).



2.Comparisontable of different bearings

3.High Speed Motor

Adopt motor of high-efficiency up to 95%, of which the speed can be controlled precisely. The motor is of minimum usable design, fast speed and air cooling type to achieve high efficiency. Air cooling is more reliable than water cooling type, because it provides easier maintenance and promises safer operation.



4. Inverter & PLC

Inverter

Adopt the international famous brand Japan YASKAWA inverter. The motor can be started up with a small current so as to cut down the investment on electricity and electric cable. Featured of low noise, high-efficiency, soft-start type and digital control efficiency no less than 96%, the inverter is stable and reliable in operation and can response to rapid load change very fast.


PLC

Adopt the programmable logic controller (PLC) of international famous brand, of which the automated solutions standard reaches the world level. The PLC can provide users various solutions from control to final connection to load. Different with MICOM, the PLC needn’t MCP. With single unit or multiple units communication realized by bus wire and center control system, the PLC can lower cost, improve control capability and safety level.


Advantages of ATB Blower

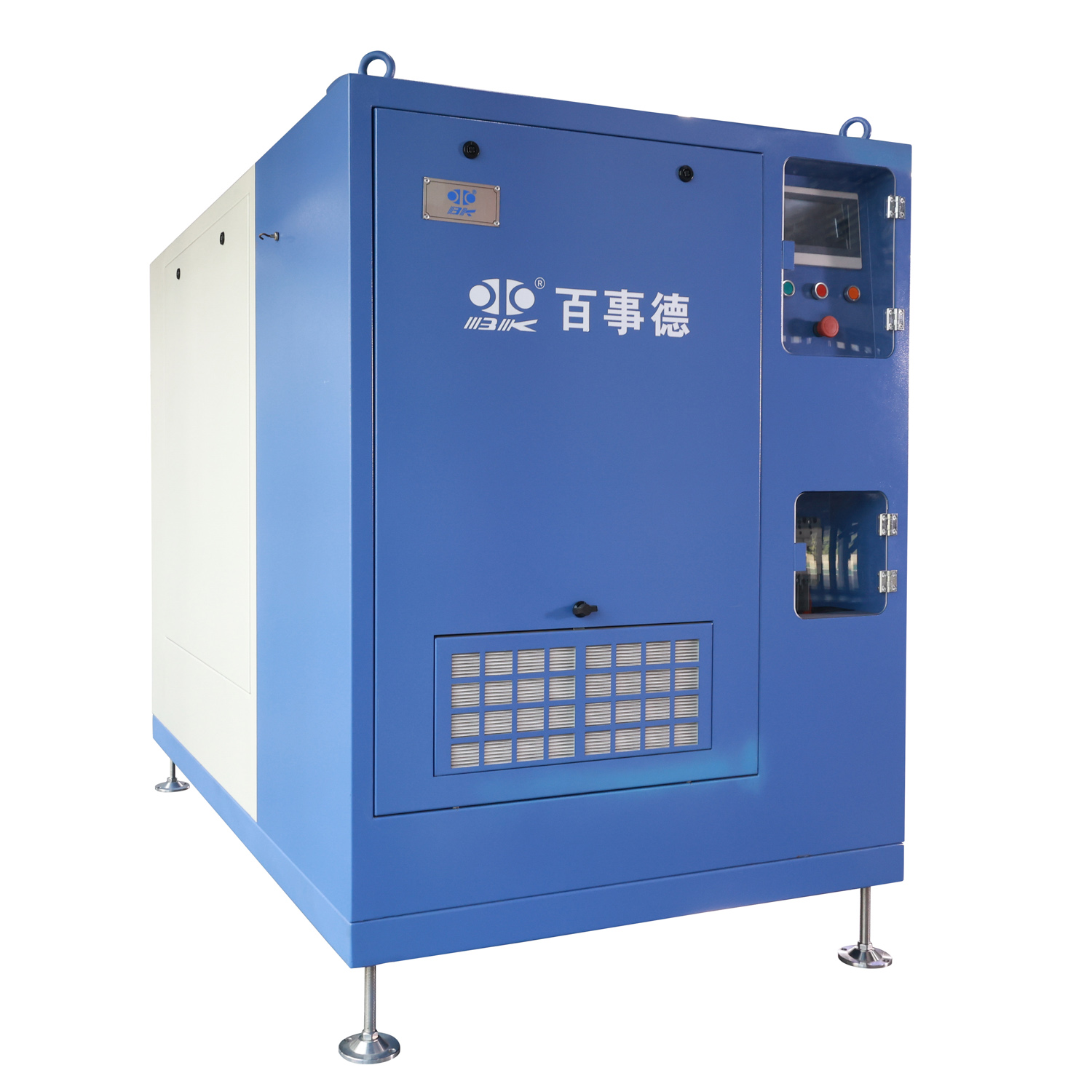

Air bearing turbo centrifugal blower adopts air foil bearings, direct-connection technology, high efficiency impeller and motor. No additional friction will occur, and motor power consumption is automatically adjusted according to the output airflow capacity (adjustable range 20-100%), so the energy-saving effect is remarkable.

Adopt air bearing and direct-connection way without mechanical contact. Noise is lower than 80dB- @ 1.5m, so there’s no need to install acoustic enclosure.

Air quality reaches ISO 8573-1 0 grade without vibration, so anti-vibration work is not required.

Without gearbox and oil-lubricated bearing of traditional blowers, high and new technology is introduced for convenient maintenance

5.Model and Data

6. Summing up

Air suspension centrifugal fan with traditional roots blower, multistage centrifugal blower is different, use air bearing, direct technology, high efficiency impeller and ultra-high speed motor, to breakthrough the economic benefits of the higher energy saving effect.In order to help the ecological environment and stable technology, provide a good comfortable working environment, can expect multiple effects.
