Exhaust Pressure

(KPa)

Airflow

(m³/min)

Motor Power

(Kw)

Main Body Speed

(rpm)

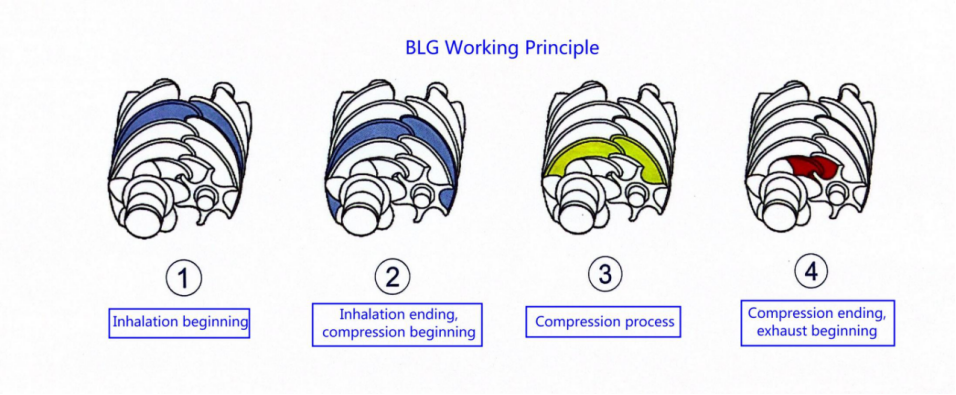

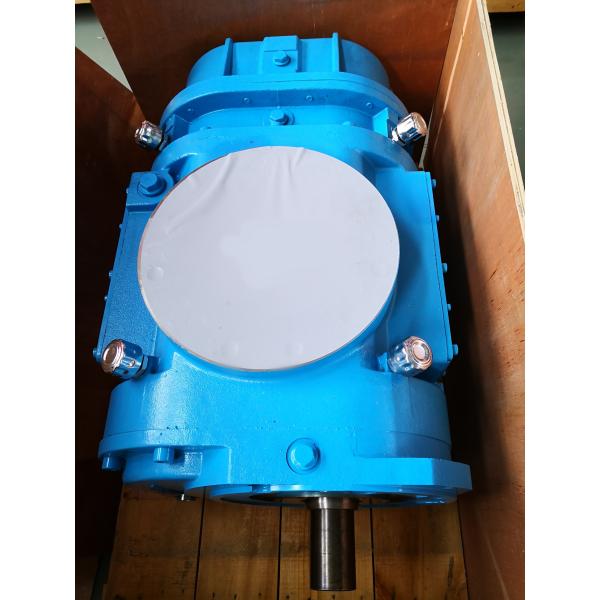

Shaft screw blower main body

high efficiency profile rotor design

● adopt synchronous gear and drive gear of national standard precision grade 5

● Innovative bearing arrangement of screw, fixed radial bearing and thrust bearing adopted to increase the service life

● oil and gas separation between compression chamber and lubricating chamber realized by Labyrinth seal + carbon ring seal, ensuring the discharge of pure air.

Permanent magnet motor

Magnetic properties, no external energy is required to maintain its magnetic field
● High efficiency and energy saving, the average efficiency of 75%- 80% can be achieved in the speed range of 1500-6000r/min.
● High accuracy in voltage regulation can prolong the battery’s service life.
● No brushes, no collector rings, and no sparks generated during operation, so there is no wireless interference, which greatly improves the operation performance.

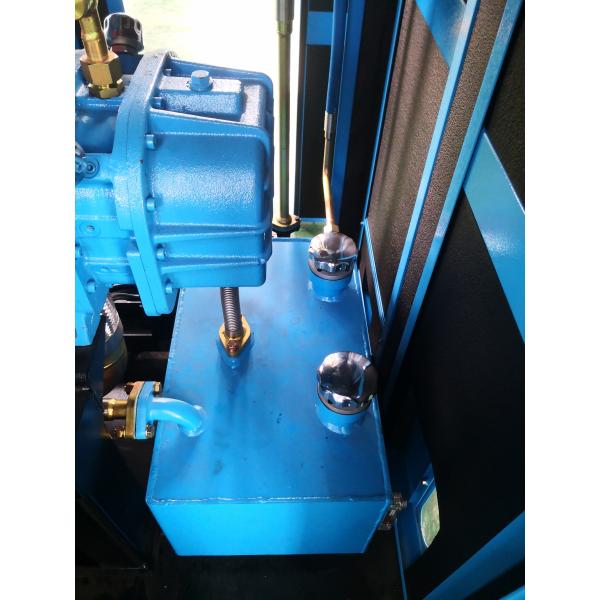

More reliable forced circulation lubrication cooling system separately designed
● advanced oil circuit system composed of oil pump, oil cooling and oil filter
● low oil temperature enables longer service life of bearings and gears

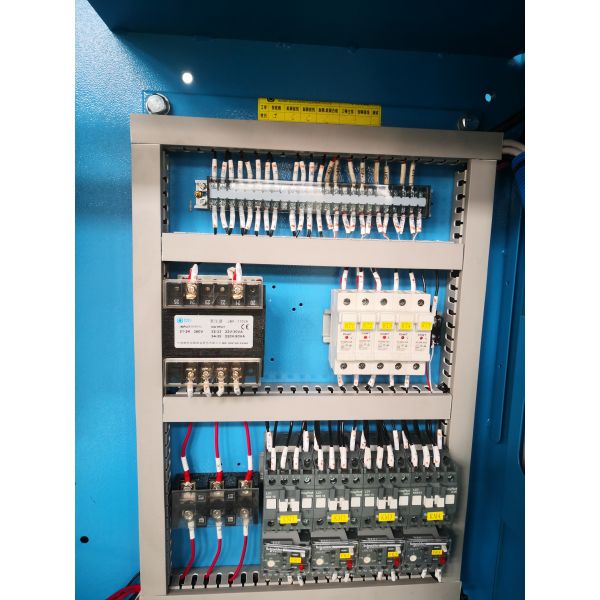

Integrated station monitoring instrument, signal control module, inverter, touch screen, etc., no additional installation required
● the selection of driving components is optimized, and parameter settings can accurately achieve higher efficiency
● Complete automatic control and protection functions, and realize online control and remote control at the same time
● A variety of operating modes, enabling users to adjust the operation to be more power-saving mode according to the changes in working conditions
