Specifications
Brand Name :
BK
Model Number :
D50-（1.4-1.8）
Certification :
ISO9001/ISO14001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 SETS per month
Delivery Time :
20-40 working days, depends on order amount and specification
Packaging Details :
Export standard wooden case
Air capacity :
50 m³/min
Motor power :
55-90KW
Discharge bore :
DN200(8”)
Cooling type :
Water
Driven type :
Coupling
Application :
sewage treatment, smelting furnace, coal preparation plant, mine floatation, chemical gas, vacuum industry, and other gas conveying, etc.
Input Pressure :
98KPa
Input Temp. :
20℃
Output Pressure :
39.2-78.5 KPa
Speed :
2950 r/min
Shaft Power :
45-80KW
Weight :
2200-3200KG
Description

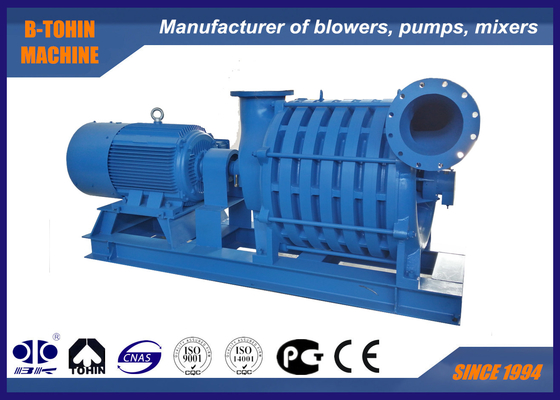

3000m3/h Multistage Centrifugal Blower, air generator for sewage aeration

About D series multi-stage centrifugal blower

D series Multi-stage Centrifugal Blower is designed by famous institute in China and engineers of B-Tohin. The blower has several impellers connected by connection rod. The inlet air is compressed stage by stage and finally discharge air capacity from outlet.

3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas

Specifications

Model Inlet Flow m³/min Inlet Pressure kPa Inlet Temperature℃ Set-up Pressure Speed r/min Shaft Power kW Motor Power kW Weight(Excluding Motor)KG
kPa mmH₂O
D50-1.4 50 98 20 39.2 4000 2950 45 55 2200
D50-1.5 50 98 20 49 5000 2950 55 75 2300
D50-1.6 50 98 20 58.8 6000 2950 66 75 2600
D50-1.7 50 98 20 68.6 7000 2950 74 90 3000
D50-1.8 50 98 20 78.5 8000 2950 80 90 3200

Features

  • Compact structure, elegant appearance, high stability, convenient installation and maintenance
  • Smooth operation
  • Low noise
  • Oil-free Blower
  • Impeller is featured with special composite linear to reduce internal leakage and improve volumetric efficiency.
  • Easy to be adjusted
  • Inlet rings are equipped for impeller of every stage, and labyrinth seals are set between stages and at the two ends of housing for preventing gas leakage.
  • air cooling and water cooling designed for exhaust bearing pedestal, prolonged bearing service life.
  • Two flow direction for option : vertical and horizontal
  • Blower and motor connected by coupling, other connection methods available according to different technique requirements.

Structure of blower main body

3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas

Assembling drawing of blower package

3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas

Standard supply of scope

1. Blower main body

2. Inlet muffler (with air filter)

3. Public base for motor and blower(including coupling cover)

4. Inlet manual butterfly valve

5. Motor

6. Pressure gauge

7. Mounting bolts and connection accessories

8. Check valve

Dimensions of blower

Horizontal flow direction 3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas 3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas
Vertical flow direction 3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas 3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas

1. blower base 2. blower main body 3. inlet silencer 4. butterfly valve 5. coupling 6. electric motor

Model Size(mm)
A B C
D50-1.8 1246 1285 2630
