Specifications
Brand Name :
OCSTAT
Model Number :
STN701
Certification :
CE, UL, ROHS, FCC, CSA
Place of Origin :
China
MOQ :
1PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 0000 PCS/ Month
Delivery Time :
5- 40 working days
Packaging Details :
Cartons
Color :
White/Customized
Display :
LCD Touch Screen Display
Sensor :
NTC Sensor
Relay :
Omron
Backlight :
White/ Blue/ Green
Theory :
Temperature Control
Control Type :
Digital
Feature :
Save energy
Power Source :
Battery or 24V Power
Programmability :
Non- Programmable
Description

Indoor Use Central Air Conditioner HVAC Room Thermostat With 1 Heat / 1 Cool



Product Describtion:

The Thermostat STN701's large display can be clearly read with the background lighting and Can be placed anywhere in the home to detect and control the temperature of an area of the user's choices, and
used in these environment like Underfloor Heating System, Water Heating/Electric Heating System/Boiler, Digital Smart Home Thermostat, Heating digital thermostat, Gas boiler thermostat to main an ideal room temperature purpose.


Features:

• 1 Heat / 1 Cool
• Non programmable
• Batteries or 24V power
• Large, easy to ready clear LCD display
• Various backlight color optional
• Electric or Gas configurable
• Separate B & O terminals
• Separate heating and cooling swing (cycle rate) adjustments
• Room temperature calibration adjustable
• 5 minute compressor delay protection (selectable on or off)
• Contemporary design

Product Specification:

Model No:

STN701

Programmability:

Non- Programmable

Temperature Range (˚F):

32˚F-99˚F (1°C-40°C)

Control Temp.Range (˚F):

44˚F-90˚F (7°C-32°C)

Temp.Meas.Accuracy:

±1°C (at 20°C)

Power Source:

DC 2 x AAA 1.5V Alkaline batteries

Power Supply:

24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)

Contact rating:

8(2)A 230AC Max

Dimensions:

120 x98 x28 mm

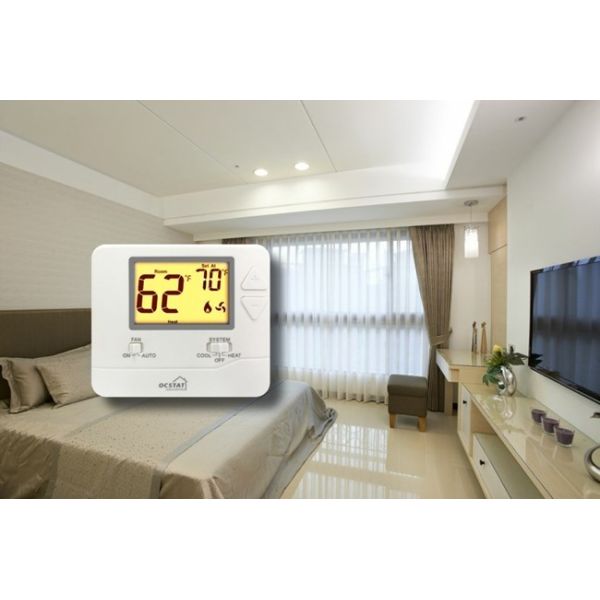

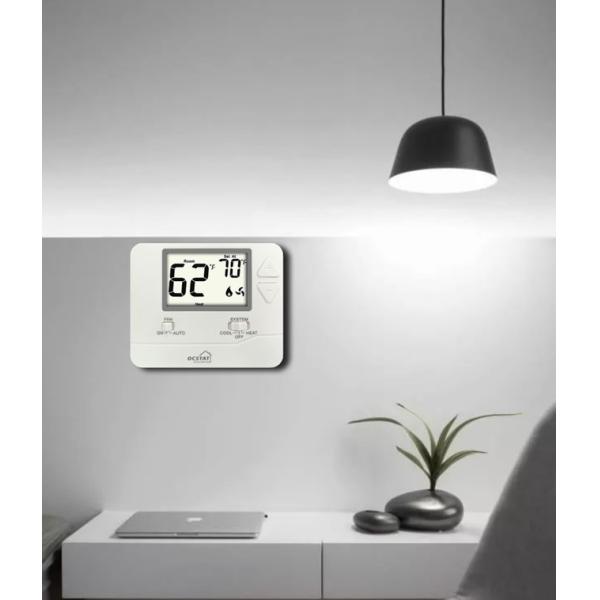

Product Scene:

Central Air Conditioner HVAC Thermostat With 1 Heat / 1 Cool Omron RelayCentral Air Conditioner HVAC Thermostat With 1 Heat / 1 Cool Omron Relay

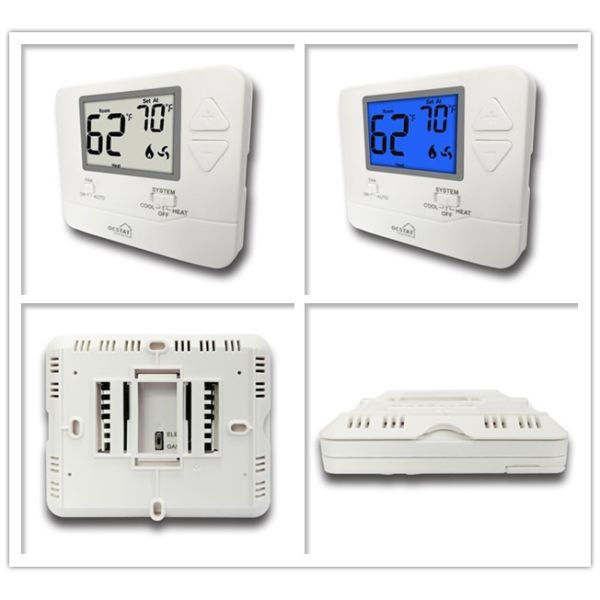

Product Detailed:

Central Air Conditioner HVAC Thermostat With 1 Heat / 1 Cool Omron Relay

Why US:

1.All the production of crystal through the CE,RoHs,LVD,EMC,FCC,UL certification.

2. We provides OEM/ODM service to worldwide customers, including manufacturing, design,engineering and tooling.

3. Our factory has two sets of fully automatic SMT lines,7 sets of injection molding machine and advanced moulding equipments

4. We have a strong R&D team with more than 10 years experience in the thermostat field

Currently our main products includ: non-programmable/programmable thermostats,dial/push button/touchscreen thermostats, wired and wireless thermostats,we can also make timer,immersion/capillary thermostat and other related heating system control parts as per the customer’s request.

Our services:

Sample:

Delivery time is 7 days

Bulk order:

40 working days

Payment:

L/C, D/A, D/P, T/T, Paypal, Western Union, Money Gram

Deliverly:

UPS, DHL, TNT, FEDEX, EMS, CHINA POST

Package:

One pcs per box (special requirements based on clients)

Warranty:

one year (any defects in quality or workmanship and repair)

Other:

OEM, ODM

FAQ:

Q1: Only Bulk Orders?

No, Sample orders are aslo welcome.

Q2: How to place orders?

You can send inquiry or leave messages about your requirements or questions to us. Our sales will get back to you within 24 hours.

Q3: How many days for delivery?

Usually it takes about 3 working days if stock available.

Q4: How to make payment?

After confirming all details, our sales will provide a PI with payment method (TT/WESTERN UNION/PAYPAL/LC).

Q5: Quality Guarantee?

12 months

Q6: After-Sales services?

We shall be grateful if pictures or videos can be provided once there is any problem when you use our product. Our sales will give prompt response and solving method will be provided in the first time.
