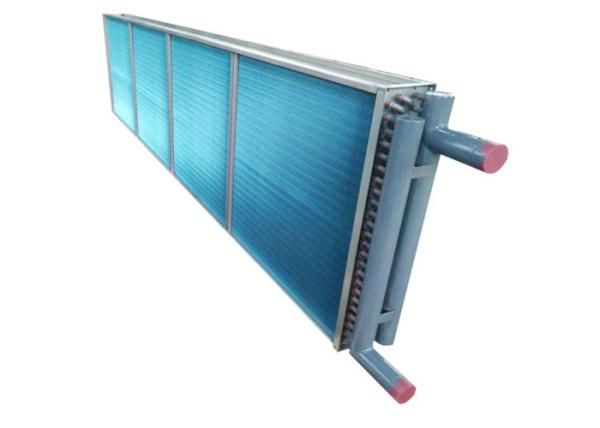

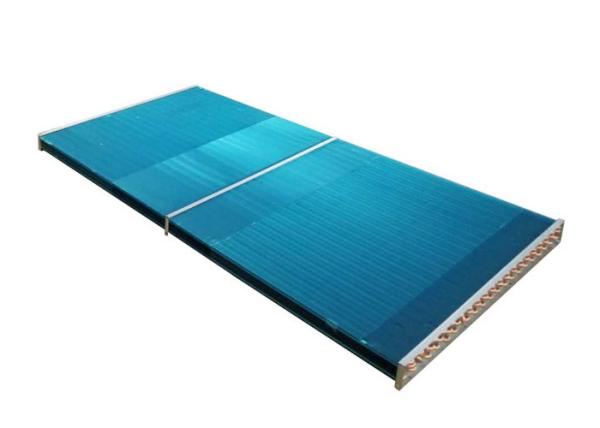

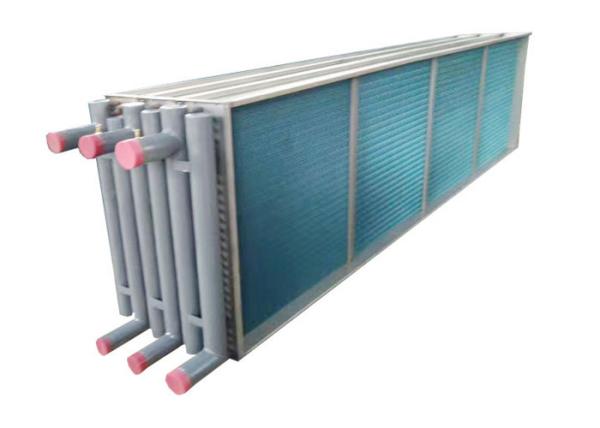

Heating 15.88mm Air Cooling Coils For Air Handling Unit
Heating 15.88mm Air Cooling Coils For Air Handling Unit
Heating 15.88mm Air Cooling Coils For Air Handling Unit
Heating 15.88mm Air Cooling Coils For Air Handling Unit
Heating 15.88mm Air Cooling Coils For Air Handling Unit
Heating 15.88mm Air Cooling Coils For Air Handling Unit
Heating 15.88mm Air Cooling Coils For Air Handling Unit
Heating 15.88mm Air Cooling Coils For Air Handling Unit
Specifications
Brand Name :
Shenglin
Certification :
RoHS
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Pcs Per Month
Delivery Time :
15~20 days
Packaging Details :
Plywood wooden box or pallet
Price :
100~500USD/Unit
Tube material :
Copper
Fin material :
Aluminum
Basic tube material :
9.52/12.75/15.88mm
Plate material :
Galvanized steel or SUS 316L
Media :
Chilled water
Mouting :
Floor mounting
Fin type :
Flat, corrugated/sine wave
HS code :
8415901000
Description

Cooling & Heating coil For Air Handling Unit

Specification:

Item Fin Coil Type Operation Medium Operation pressure(MPa) Application
1 Φ16/Φ9.52/Φ12.7 Copper tube with aluminum fin Φ16/Φ9.52/Φ12.7 Copper tube with aluminum fin Φ16/Φ9.52/Φ12.7 Copper tube with aluminum fin Used for combined air handling unit, fan coil etc air conditioning devices
2 Φ18/Φ20 Steel pipe winding with steel sheet Steam ≤0.2 Used for combined air handling unit, fan coil etc air conditioning devices
3 Φ16/Φ9.52/Φ12.7 Copper tube with aluminum fin Brine ≤1.6 Used for heat transfer in cold storage and all kinds of low temperature systems
4 Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin Ethylene glycol ≤1.6 Used of energy recovery and low temperature system devices
5 Φ16 Copper tube with aluminum fin Ice mud ≤1.6 Used for dry operation condition, fresh air dehumidification etc systems
6 Φ5/Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin R22 ≤1.9 Used for industry and commerce air conditioning system, refrigeration equipment etc
7 Φ5/Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin R407C ≤1.9 Used for industry and commerce air conditioning system, refrigeration equipment etc
8 Φ5/Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin R134a ≤3.1 Used for industry and commerce air conditioning system, refrigeration equipment etc

Tube material range:

Heating 15.88mm Air Cooling Coils For Air Handling Unit

Fin material range:

Heating 15.88mm Air Cooling Coils For Air Handling Unit

Plate material range:

Heating 15.88mm Air Cooling Coils For Air Handling Unit
