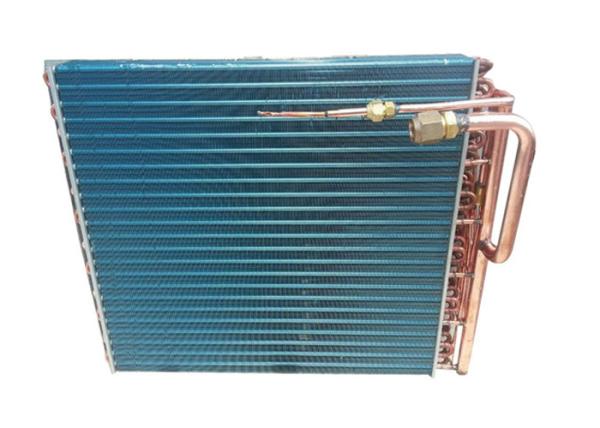

Copper Tube Aluminum Fin Ac Coil Fins For Air Conditioner
Copper Tube Aluminum Fin Ac Coil Fins For Air Conditioner
Copper Tube Aluminum Fin Ac Coil Fins For Air Conditioner
Copper Tube Aluminum Fin Ac Coil Fins For Air Conditioner
Specifications
Brand Name :
Shenglin
Certification :
RoHS
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Pcs Per Month
Delivery Time :
15~20 days
Packaging Details :
Plywood wooden box or pallet
Tube material :
Copper/ Aluminum/Ti/Stainless steel is available
Fin material :
Copper/ Aluminum/Ti/Stainless steel is available
Coating :
Powder coating, epoxy resin, painting, heresite coating is available
Fin type :
Flat, corrugated or window type
Tube type :
Plain copper tube or inner grooved copper tube
Medium :
Freon or water
Cooling way :
Air cooled
Plate material :
Stainless steel/Aluminum/Galvanized steel
Description

Copper Tube And Aluminum Fin Codnenser For Air Conditioner

Feature:

1. Widely used in air conditioning industry, refrigeration industry, cold room and other cooling system.
2. Pitch of fins can be adjusted between 1.8—5.8mm.
3. We can supply products as per customized samples or drawing
4. Did gas examination under 3.0Mpa air pressure to ensure the tightness.
5. Suitable for water, R134A, R22, R404A, R407C refrigerant and so on

Specificaiton:

Fin Type Copper Tube O.D.
(mm)		 Row Space
(mm)		 Hole Space
(mm)		 Fin Thickness
(mm)		 Fin Space(mm)
Flat fin Sine wave
with blade fin		 Smooth sine
wave fin		 Window fin Sesamoid fin
A 7 12.7 21 0.105 / / 1.3 1.3 /
B 7 13.2 17.6 0.105 / / 1.3 1.3 /
C 7 12.7 20.4 0.105 / / 1.3~1.8 1.3~1.8 /
D 7.94 15.88 25.4 0.105 1.8~3.0 1.8~3.0 1.8~3.0 1.8~3.0 /
E 7.94 19.05 22 0.105~0.13 1.4~3.0 1.4~3.0 1.4~3.0 1.4~3.0 /
E 9.52 22 25.4 0.105~0.15 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
F 9.52 22 25.4 0.18~0.4 3.5~6.35 / / / /
G 9.52 21.65 25 0.105~0.18 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
H 9.52 21.65 25 0.15~0.24 3.2~6.35 3.2~6.35 3.2~6.35 / /
I 12.75 27.5 31.75 0.115~0.15 1.5~3.5 1.5~3.5 1.5~3.5 1.5~3.5 1.6~3.2
J 15.88 33 38.1 0.115~0.15 1.5~4.0 1.5~4.0 1.5~4.0 / /
K 15.88 34.64 40 0.115~0.15 / 2.6~3.5 2.6~3.5 / /

Application:

Copper Tube Aluminum Fin Ac Coil Fins For Air Conditioner

Packing way:

Copper Tube Aluminum Fin Ac Coil Fins For Air Conditioner
