Specifications
Brand Name :
FMS
Model Number :
Sandwich Panel Roll Forming Machine
Certification :
CE
Place of Origin :
china
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
20sets per month
Delivery Time :
45 worl days
Packaging Details :
Naked with Plastic Film.
Diameter Of Shaft :
70mm or as your requirement
Material Of Shafts :
High grade 45# forged steel
Cutting Blade :
Cr12 mould steel with quenched treatment
Forming Speed :
5-8m/min
Cutting Blade Material :
Cr12Mov, heat treatment
Power Supply :
380V, 3 Phase, 50Hz
Shaft Material :
High grade 45# steel, diameter 70mm
Thickness :
0.3-0.8mm
Forming Steps :
11 stations
Power :
5.5KW
Material Width :
1200mm
Description
Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine

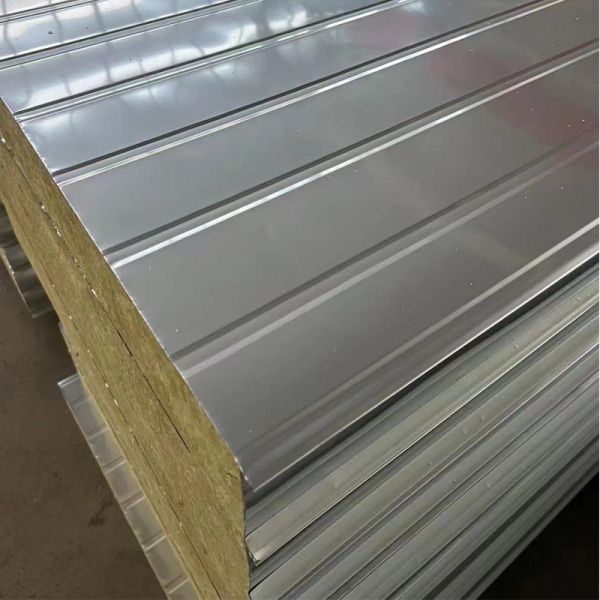

This advanced production line is designed for manufacturing EPS rock wool composite boards, a widely used building insulation material for walls, roofs, and floors. The automated system ensures efficient production of high-quality sandwich panels.
Production Process Overview
  • EPS Board Processing: Precision cutting and trimming operations
  • Rock Wool Processing: Accurate cutting and systematic paving
  • Composite Bonding: Hot or cold pressing to bond materials
  • Final Molding: Formation of specification-compliant composite boards
Equipment Components
  • EPS Board Processing Unit: Cutting and trimming systems
  • Rock Wool Processing Unit: Cutting and paving mechanisms
  • Composite Unit: Bonding and pressing systems
  • Molding Unit: Final shaping and sizing equipment
  • Control System: Automated process control
Technical Specifications
Material of Shaft 70 mm 45# steel forged
Thickness Range 50-250mm
Working Speed 5-6m/min
Dimensions Approximately 34000mm × 2500mm × 2600mm
Total Power 32 KW
Electrical Hydraulic Station Power 4 KW
Hydraulic Station Pressure 12.0 Mpa
Roller Station 11/17 Rows
Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line
Warranty & Guarantee
1-Year Manufacturing Defect Guarantee (excluding electrical parts) from date of purchase.
Warranty Exclusions
  • Damage caused by natural disasters
  • Malfunctions due to user error
  • Issues resulting from unauthorized modifications
  • Problems occurring after relocation or shipment post-installation
Payment & Delivery Terms
Payment Structure: 40% advance payment, 60% balance before shipment
Delivery: FOB Tianjin Xingang Port
Lead Time: 65 days after receipt of down payment
Frequently Asked Questions
Does one machine produce only one style of panel profile?
No. For wider and double-layer making machines, it can produce more than 6 different types of panels.
What support is provided if the machine breaks down?
12-month warranty period. If parts cannot be repaired, we provide replacements (customer covers express costs). After warranty, we offer technical support and negotiated solutions for the equipment's lifetime.
Can you handle transportation?
Yes, we have extensive transportation experience. Please provide your destination port or address.
Are you a manufacturer or trading company?
We operate as both manufacturer and trading company.
Do you provide customization?
Yes, we design machines according to your requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.
How can I verify machine testing before shipping?
We provide testing videos for reference, or welcome you to visit our factory and test the machine personally.
