EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
Specifications
Brand Name :
FMS
Model Number :
Sandwich Panel Roll Forming Machine
Certification :
CE
Place of Origin :
china
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
20sets per month
Delivery Time :
45 worl days
Packaging Details :
Naked with Plastic Film.
Diameter Of Shaft :
70mm or as your requirement
Material Of Shafts :
High grade 45# forged steel
Cutting Blade :
Cr12 mould steel with quenched treatment
Forming Speed :
8-15m/min
Cutting Blade Material :
Cr12Mov, heat treatment
Power Supply :
380V, 3 Phase, 50Hz
Shaft Material :
High grade 45# steel, diameter 70mm
Thickness :
0.3-0.8mm
Forming Steps :
11 stations
Power :
5.5KW
Material Width :
1200mm
Description
EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

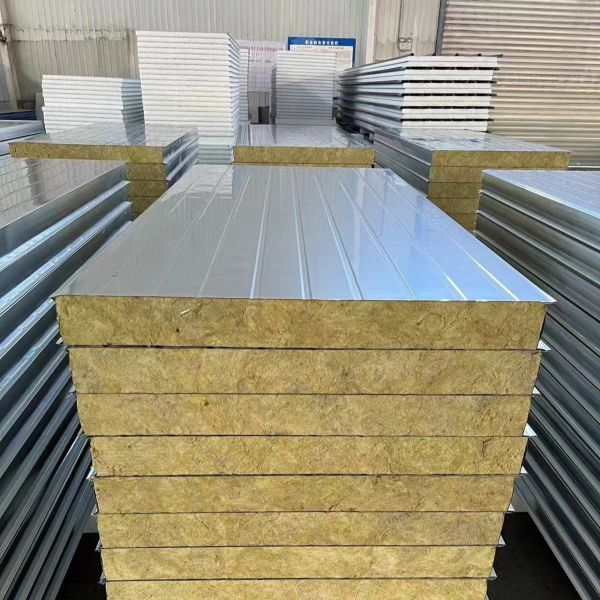

The Sandwich Panel Roll Forming Machine Production Line is specialized equipment designed for manufacturing EPS rock wool composite boards. These composite boards are widely used as building insulation materials for walls, roofs, and floors, providing excellent thermal insulation properties.
Main Functions
  • EPS board processing: cutting and trimming operations
  • Rock wool processing: cutting and precise paving
  • Composite bonding: hot pressing or cold pressing to bond EPS board and rock wool
  • Final molding: forming composite boards to meet required specifications
Equipment Composition
  • EPS board processing unit: handles cutting and trimming of EPS boards
  • Rock wool processing unit: manages cutting and paving of rock wool
  • Composite unit: bonds EPS board and rock wool together
  • Molding unit: ensures composite boards meet dimensional specifications
  • Control system: automated control of the entire production process
Technical Specifications
Material of Shaft 70 mm 45# steel forged
Material Thickness 0.3-0.8 mm
Working Speed 8-15 m/min
Main Motor Power 7.5 KW
Electrical Hydraulic Station Power 4 KW
Hydraulic Station Pressure 12.0 Mpa
Roller Station 11/17 Rows
EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
Warranty & Guarantee
Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (excluding electrical parts).
Repairs will not be performed during the guarantee period in the following circumstances:
  • Damage occurs due to natural disaster
  • Malfunction occurs due to user error
  • Malfunction occurs due to modifications
  • Malfunction occurs due to movement or shipment after installation
Payment Terms
  • 40% in advance as down payment
  • 60% paid before shipment processing
Delivery Information
  • FOB: Tianjin Xingang Port
  • Delivery Time: 65 days after down payment receipt
Frequently Asked Questions
Does one machine produce only one style panel profile?
Not exactly. For wider and double layer making machines, they can produce more than 6 different types of panels.
What support do you provide if the machine breaks down?
Our machines include a 12-month warranty period. If broken parts cannot be repaired, we will send replacement parts (customer pays express costs). After warranty period, we provide technical support for the equipment's entire lifespan through negotiated solutions.
Can you handle transportation?
Yes, please provide your destination port or address. We have extensive experience in transportation logistics.
Are you a manufacturer or trading company?
We operate as both manufacturer and trading company.
Do you provide custom solutions?
Yes, we can design machines according to your specific requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.
How can I verify machine testing before shipping?
We provide recorded testing videos for your reference, or we welcome you to visit our factory and test the machine personally.
