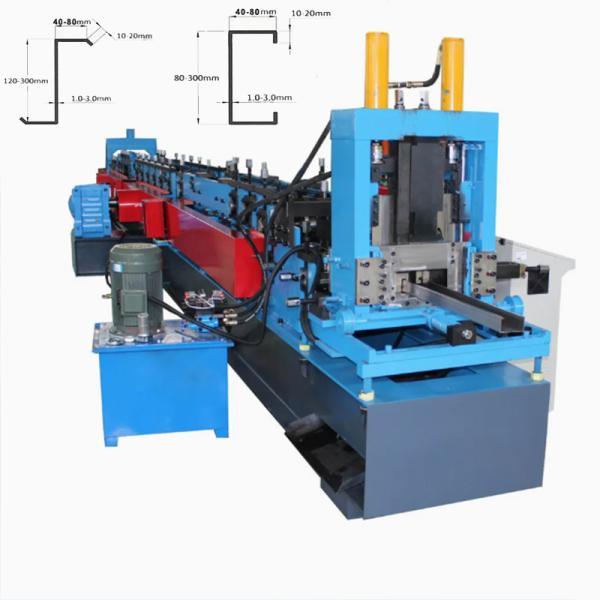

Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame
Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame
Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame
Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame
Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame
Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame
Specifications
Brand Name :
CZ Channel Manual Adjustable Purlin Roll Forming Machine
Model Number :
CZ
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
40' FLC
Product Name :
Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame
Raw Material :
Galvalume, Galvanized
Dimension(L*W*H) :
8000 mm*1500 mm* 1500
Material Thickness :
1-2.2 mm
Weight :
4.8T
Production capacity :
10-28m/min
Voltage :
380V/50HZ/3PH
Main motor power: :
15Kw
Description

Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame

PLC control Size Roof structure Purlin Machine CZ Purlin Roll Forming Machine is a special equipment for producing CZ steel (C and Z steel), mainly used in the construction and industrial fields to manufacture roof and wall support structures. The following are its main features and working principles:

Main features
High automation: It has automatic feeding, forming, cutting and other functions to improve production efficiency.
High precision: Ensure that the size and shape of the steel meet the design requirements and ensure installation accuracy.
Multi-function: It can produce C and Z steel to meet different needs.
High efficiency: Automated operation greatly shortens the production cycle and reduces labor costs.

Working principle
Feeding: Metal coils enter the equipment through the feeding device.
Forming: Through multiple rolling processes, the metal material is processed into C or Z shape.
Cutting: Cut the formed material according to the set length.
Output: The finished steel is output for subsequent processing or direct use.

Application field
Building structure: Used for roof and wall support structure.
Industrial plant: Used for roof and wall support of industrial plant.
Warehousing facilities: Support structures for large warehouses.

Advantages
Reduce costs: Automated production reduces labor and material waste.
Improve quality: High-precision equipment ensures the quality of steel.
Shorten cycle time: Automated processes speed up production.

CZ Purlin forming machines are key equipment in the construction and industrial fields. Through automated and high-precision processing, they meet the manufacturing needs of C- and Z-shaped steels and improve efficiency and quality.

Specification

No. Item Description
1 Coil Galvanized
2 Material Thickness 1 mm- 3.5 mm
3 Working Speed 15- 20 m/min ( not including the cutting time)
4 Roller Station 12-16 Raws
5

Dimension (L*W*H)

 7000 mm*1000 mm*1300 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Panasonic PLC

8

Drive Motor Power

 15KW
9

Hydraulic Station Power

 15 KW
10

Power Supply

360V/60HZ/3PH
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 2 inch
13

Material of Shaft

80 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard
