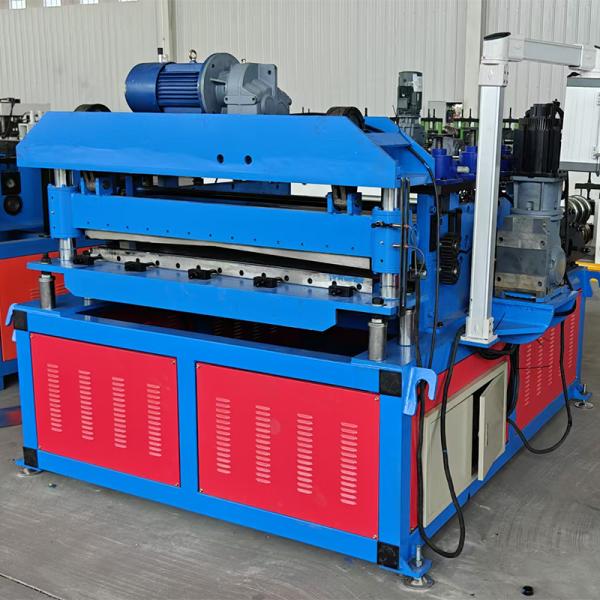

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length
Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length
Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length
Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length
Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length
Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length
Specifications
Brand Name :
CANGZHOU FMS
Model Number :
cut to length
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Set Production Line
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5 Sets Per 60 Days
Delivery Time :
60 Working Days
Packaging Details :
2 Pcs 40' FLC
Product Name :
Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length
Cutting Material :
Cr12Mov
Material Thickness :
0.8mm -1.5mm
Working Speed :
8m/min - 20 m/min
Coil Weight :
5 tons / 7 tons / 10 tons/15tons
Machine Weight :
13000 KG
Cutting tolerance :
±2 mm
Description

Multi-Function Metal Coil Leveling Slitting And Cut To Length

steel Coil Cutting-to-Length Lines are integrated systems of machinery designed to process large, master coils of steel into flat sheets This process is fundamental in metal manufacturing, transforming coiled raw material into ready-to-use flat products for various industries.

These highly automated lines handle the three primary functions: uncoiling, levelling (straightening), and cutting.

Specifications

No. Item Description
1 Main Specification 1 Raw Material Galvanized, Aluminum,Color steel, Handness 235MPa - 485MPa
2 Raw Material Thickness 0.2 mm - 3.0 mm
3 Raw Material Width 600 mm - 1600 mm
4 Tape Inner Diameter φ 480 mm - φ 530 mm
5 TapeOuter Diameter φ 1600 mm
6 Coil Weight 5 tons - 10 tons
7 brand FMS
8 The Highest Slitting LineSpeed 8 m/min - 30 m/min
9 Minimum Cutting Line Width 35 mm
10 Cutting Width Precision ± 0.01 - ± 0.05 mm
11. Rated Operational Voltage 380 V, 3 Phase, 60 Hz
12. Total Weight 14000 KG
12. Working Space(L*W) 20000 mm*6000 mm
2 Decoiler Machine Specification 1 Tape Outer Diameter Max φ 1600 mm
2 Tape Width 600 mm - 1600 mm
3 Tape Inner Diameter φ 480 mm - φ 530 mm
4 Coil Weight 5 /7/10 tons
5 Max Working Speed 8 m/min - 30 m/min
6 Tape Tight Range φ 480 mm - φ 530 mm
7 Shaft Diameter φ180 mm
3 Decoiler Machine Specification 8 Roller Effective Length 1600 mm
9 Drive Moter Power 5 KW
10. Loading Car Diameter φ 700 mm - φ 1500 mm
11 Loading Car Weight 5 /7/ 10 tons
12 Car Speed About 4 m/min

Application

it use to cut the big coils into different width coils,the thickness can 0.3-3mm GI PPGI , the working speed can reach 40 meter per min .

Max width of steel coils can use 1250mm

Advantage

Cangzhou famous cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines.

It is located in botou city. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.
