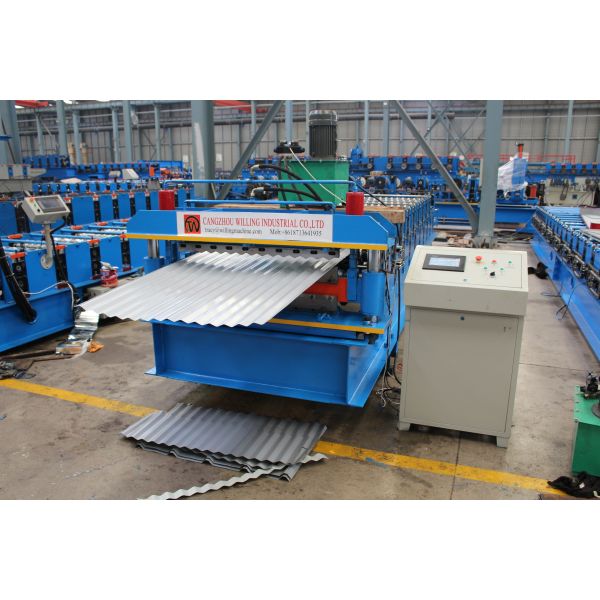

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine
2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine
2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine
2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine
2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine
2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine
2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine
2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine
2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine
2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine
Specifications
Brand Name :
FMS
Model Number :
Double Layer
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
20' FLC
Product Name :
Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836
Dimension(L*W*H) :
7.5*1.3*1.3 m
Raw Material :
Galvalume, Galvanized
Working Speed :
8-15 m/min
Rolling thinckness :
0.3-0.8mm
Shaft material :
45# steel
Motor power :
7.5 kw
Pow supply :
380V, 60Hz, 3Ph
Profile :
as customer requested
Description
2025 Hot Sale Trapezoidal and Glazed Double Layer Roof Sheet Roofing Tile Forming Machine
2025 Factory Price Trapezoidal and Glazed Double Layer Roof Sheet Roofing Tile Roll Forming Machine
Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836
CANGZHOU FAMOUS CO., LTD products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.
Specification
Part details Item Name Specification
Manual uncoiler carrying capacity tons
Stype Manual
Raw coil Coil material steel
Coil thickness 0.3-0.8 mm
Machine body Roller station 15 station
Roller material 45# steel
Shaft material 45# steel
Shaft diameter 75 mm
Machine weight About 8.5 tons
Machine size 5-7.5*1.3*1.3 m
Speed 8-15 m/min
Cutter Operate Hydraulic cutting
Blade material Cr12
Power Operate Chain transmission
Chain size 1 inch chain
Control system PLC brand Taiwan delta
Motor power 7.5 kw
Hydraulic pump power 4 kw
Voltage 380V 50Hz 3phase
Machine color As ur need
Machine language Chinese and English
Advantages
  • The metal system is accurate and solid, and will not move over time or with changes in temperature.
  • There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
  • It is a fast and clean system to erect that allows services to pass through easily.
  • All sections fit together easily and door frames are formed very simply.
Payment Terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
