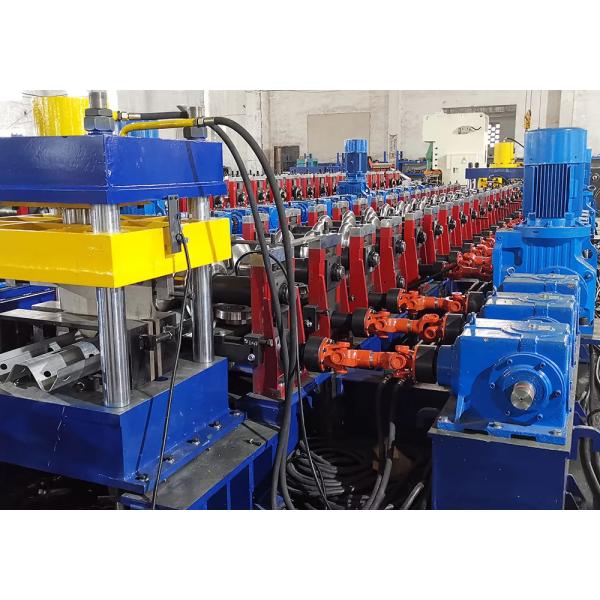

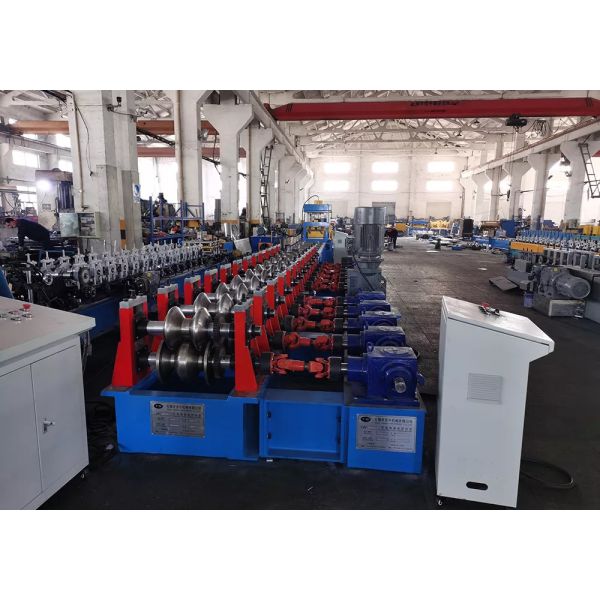

Two Waves Beams Chaindrive Crash Barrier Roll Forming Machine
Two Waves Beams Chaindrive Crash Barrier Roll Forming Machine
Two Waves Beams Chaindrive Crash Barrier Roll Forming Machine
Two Waves Beams Chaindrive Crash Barrier Roll Forming Machine
Specifications
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Free spare parts,Field maintenance and repair service
Product Name :
Two Waves Highway Guardrail Roll Forming Machine Beams Crash Barrier
Voltage :
380V.50HZ.3Phase
Raw material request :
cold rolled or hot rolled steel,galvanized steel,SS316L/Mild Steel
Way of drive :
chain drive,Gearbox drive(optional)
Brand Name :
FMS
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
50 Working Days
Packaging Details :
40' FLC
Control :
PLC
Forming stations :
according to you profile drawings
Rollers material :
GCr15,Cr12,SKD11 quenching treatment:HRC58-62（optional）
Description

Two Waves Highway Guardrail Roll Forming Machine Beams Crash Barrier

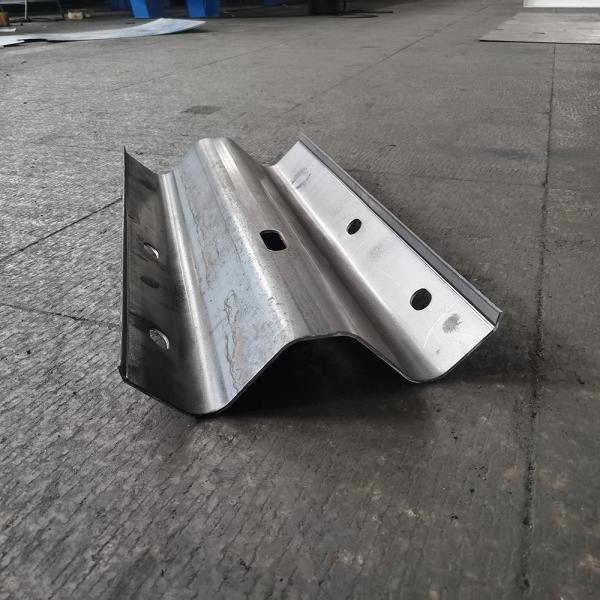

Highway Guardrail plate is mainly used in national high-speed railway, highway road reconstruction projects and industrial hardware products and other industries. When subjected to external forces, the deformation of guardrail plate and column can absorb impact force to protect pedestrians and vehicles.Is a common road safety emergency protection facilities.

Specification

No. Item Description
1 Coil

Q235MPA Steel
2 Material Thickness 3 mm
3 Working Speed 10- 15 m/min ( not including the cutting time)
4 Roller Station 13 Raws
5

PLC

Yaskawa,Mitsubishi,(option Brand)
6

Whole line working speed

0-25m/min
7

Length precision

±0.3mm/10m
8

Punching system

hydraulic punching ,punching press machine(option)
9

Cutting system

pre cutting,hydraulic post cutting,servo Tracking cutting
10

Inverter

Yaskawa,Mitsubishi (option Brand)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
