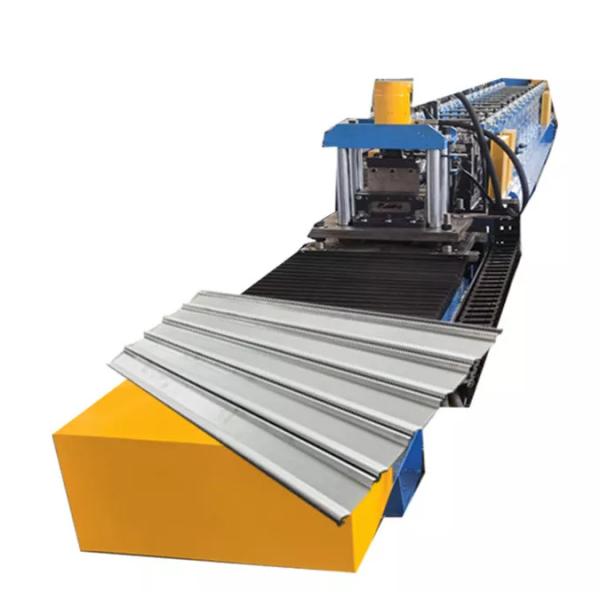

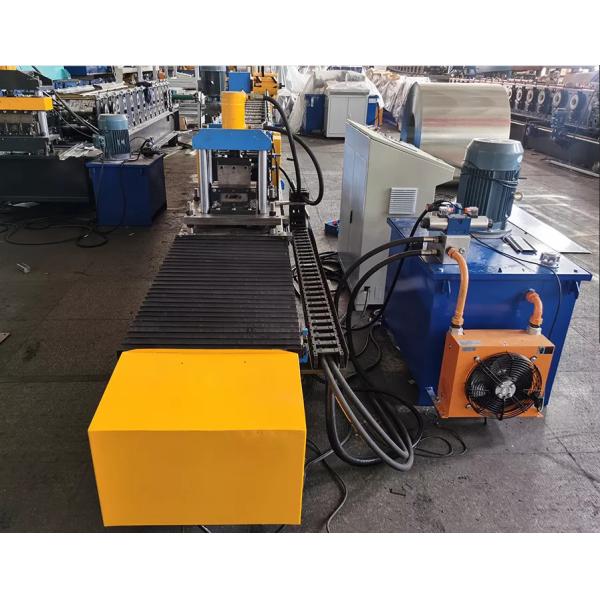

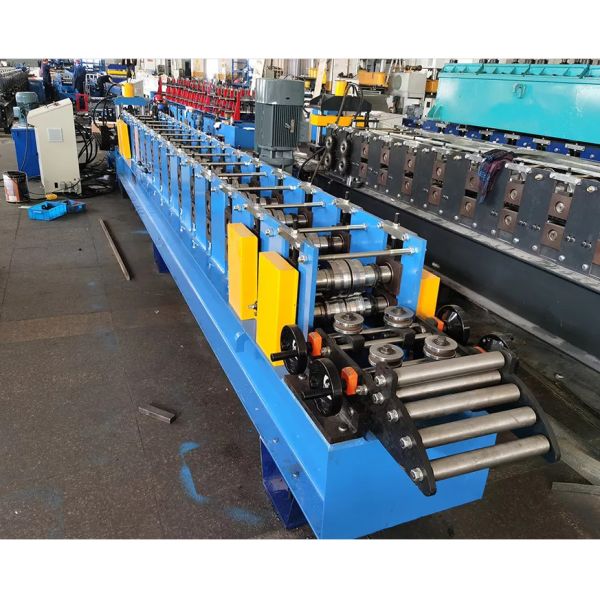

Chain Drive Rolling Shutter Door Roll Forming Machine High Speed Full Auto 25m/Min
Chain Drive Rolling Shutter Door Roll Forming Machine High Speed Full Auto 25m/Min
Chain Drive Rolling Shutter Door Roll Forming Machine High Speed Full Auto 25m/Min
Chain Drive Rolling Shutter Door Roll Forming Machine High Speed Full Auto 25m/Min
Specifications
Voltage :
380V 50Hz 3phases
Length precision :
±0.3mm/10m
PLC :
Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
Forming stations :
according to you profile drawings
Product Name :
High Speed Roller Shutter Door Roll Forming Machine Full Auto
Brand Name :
FMS
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
20' FLC
Whole line working speed :
0-25m/min
Rollers material :
GCr15,Cr12,SKD11 quenching treatment:HRC58-62（optional）
Way of drive :
chain drive,Gearbox drive(optional)
Description

High Speed Roller Shutter Door Roll Forming Machine Full Auto

Rolling door, garage door, European type rolling door, fire door, security door, fire shutter door, inorganic fabric rolling door machinery, fire door frame, security door frame,......Its products are widely used in steel structure industry, building construction, vehicle industry, doors and Windows industry, transportation industry, and various projects.

Specification

No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.8mm - 1.0 mm
3 Working Speed 20-30 m/min
4 Roller Station 12 Stations
5

Inverter

 Yaskawa,Mitsubishi, (option Brand)
6 PLC Yaskawa,Mitsubishi, (option Brand)
7

Electrical Control System

Delta PLC (can be customized)
8

Cutting system

 pre cutting,hydraulic post cutting,servo Tracking cutting
9

Punching system

 hydraulic punching ,punching press machine(option)
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Length precision

±0.3mm/10m
12

Driving Mode

Gear Wheel

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
