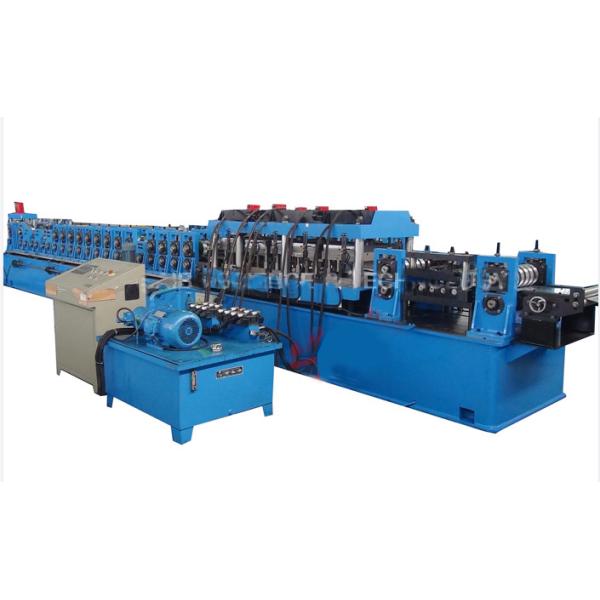

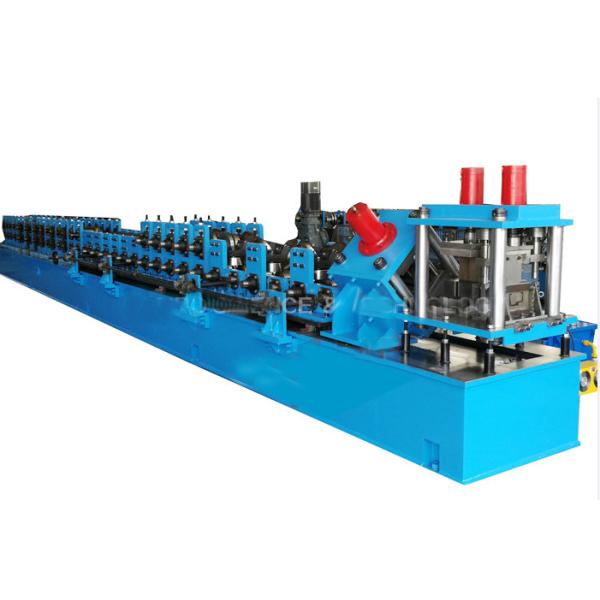

Making 0.8mm Thickness Door Frame Roll Forming Machine 380V
Making 0.8mm Thickness Door Frame Roll Forming Machine 380V
Making 0.8mm Thickness Door Frame Roll Forming Machine 380V
Making 0.8mm Thickness Door Frame Roll Forming Machine 380V
Specifications
Rolling Thickness :
0.8-1.5mm
Hydraulic power :
5.5kw
Voltage :
380V 50Hz 3 phases
Product Name :
Metal Door Steel Frame Roll Making Forming Machine Easy To Operate
Control System :
PLC as list in the note
Rollers material :
GCr15,Cr12,SKD11 quenching treatment:HRC58-62（optional）
Weight :
About 6 Tons
Brand Name :
FMS
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
20' FLC
Description

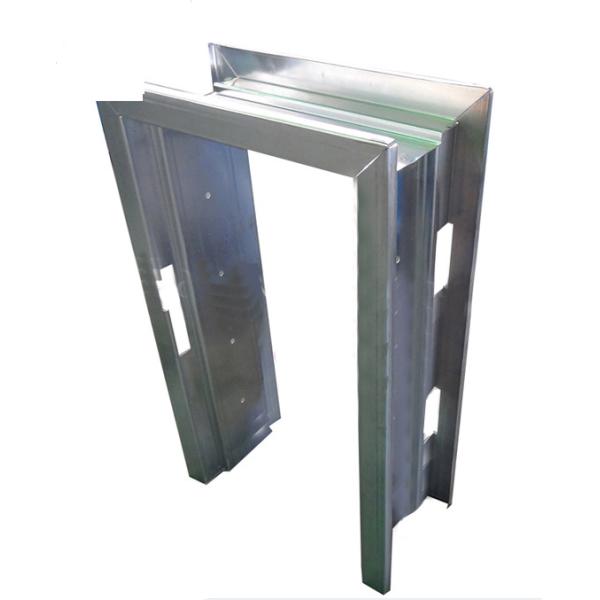

Metal Door Steel Frame Roll Making Forming Machine Easy To Operate

Easy to Operate Door Frame Making Line is cold-rolled into various wave-shaped pressed plates. It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structures. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.

Specification

1
Coil width
295mm
2
Rolling speed
12-15m/min(not include cutting & punching time)
3
Rolling thickness
0.8-1.5mm GI, G550
4
Control system
PLC as list in the note
5
Un Coiler
5T hydraulic decoiler
6
Leveling
Three rollers four
7
Punching
4 sets
8
Shaft Material and DIA
￠65mm, material is 45# forge steel
9
Roller stations
About 19 stations (according the final design)
10
Roller material
Gcr15, HRC55-60 surface coated with chrome
11
Post cutting
Hydraulic cutting after roll forming
12
Material Of Cutting
Cr12Mov quenching 58-62℃
13
Maim Motor Power
11kw
14
Hydraulic Station Power
5.5kw
15
Hydraulic Pressure
12-16Mpa adjustable
16
Sturcture Of The Stations
Wire-electrode cutting
17
Electric Source
380V, 50HZ,3 phase
According to customer's require
18
Way Of Drive
By chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
