Channel C Stop Cutting System 3mm Purlin Forming Machine
Channel C Stop Cutting System 3mm Purlin Forming Machine
Channel C Stop Cutting System 3mm Purlin Forming Machine
Channel C Stop Cutting System 3mm Purlin Forming Machine
Channel C Stop Cutting System 3mm Purlin Forming Machine
Channel C Stop Cutting System 3mm Purlin Forming Machine
Channel C Stop Cutting System 3mm Purlin Forming Machine
Channel C Stop Cutting System 3mm Purlin Forming Machine
Specifications
Brand Name :
CANGZHOU WILLING
Model Number :
Channel C
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
40' FLC
Product Name :
Channel C Stop Cutting System Purlin Roll Forming Machine
Raw Material :
PPGI，PPGL,PL,GL
Speed :
8-15m /min
Material Thickness :
1 mm - 3 mm
Weight :
8 tons
Warranty :
1 Year
power :
15KW
Control system :
PLC
Description

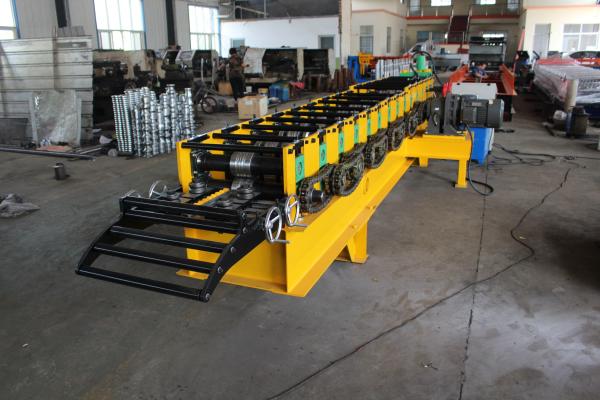

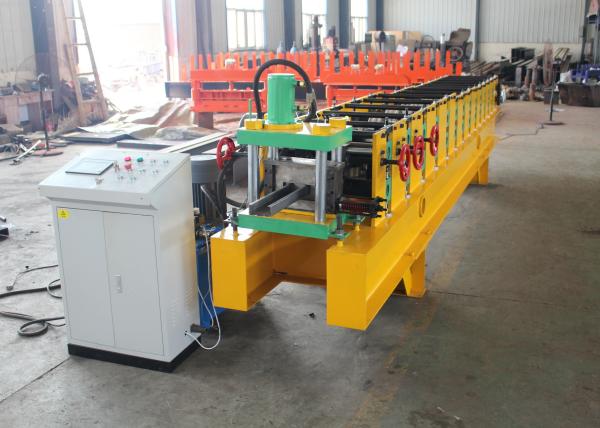

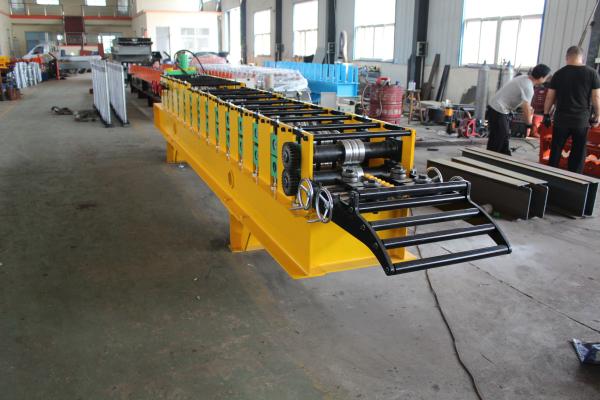

Channel C Stop Cutting System Purlin Roll Forming Machine

Channel C Stop Cutting System Purlin Roll Forming Machine can produce roof slats and ceiling slats of 40mm, 45mm, 60mm and any other size you need.
We can help customers to design machines according to the different requirements of logo punching and embossing, and we can work with customer team to create a good shape with the special characters of customer factory

Specification

No. Item Description
1 Coil Galvanized
Material Thickness 1 mm- 3 mm
3 Working Speed 15- 20 m/min ( not including the cutting time)
4 Roller Station 14 Raws
5

Dimension

 6500*1300*1200
6 Machine Weight 8000 KG
7

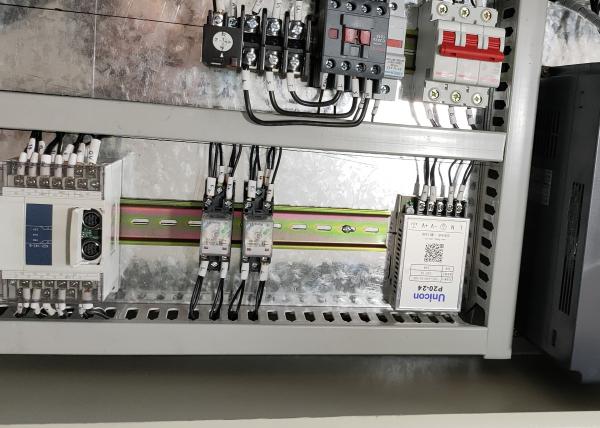

Electrical Control System

PLC

8

Drive Motor Power

 15KW
9

Hydraulic Station Power

 15 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 2 inch
13

Material of Shaft

80 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard

Application

C-slot machine is used to produce C-type purlins, suitable for hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration, roofs and other places. C slot machine materials are galvanized steel sheet, snowflake sheet, cold rolled steel sheet, etc.

Advantage

The C-channel purlin forming machine adopts a servo motor tracking and cutting system, which can produce 8-15 meters per minute. The body is a column structure with a safety shield. It can effectively prevent workers from being injured during the operation.

Channel C Stop Cutting System 3mm Purlin Forming Machine
