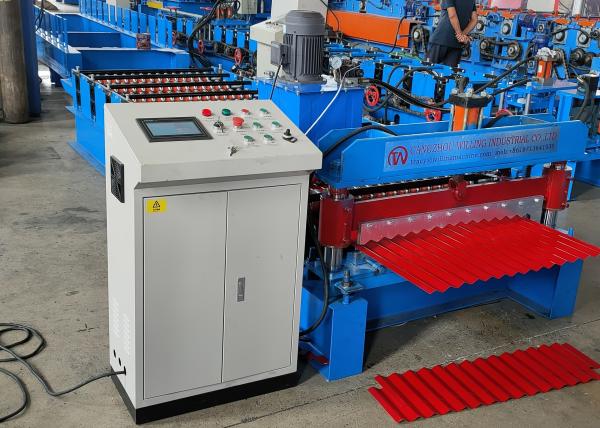

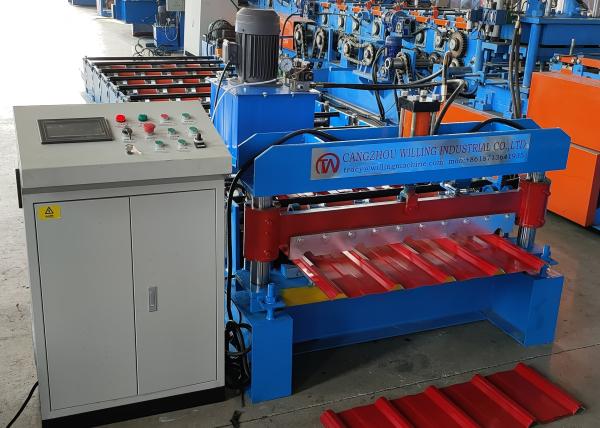

Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine
Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine
Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine
Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine
Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine
Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine
Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine
Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine
Specifications
Brand Name :
CANGZHOU WILLING
Model Number :
Corrugated
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
40' FLC
Product Name :
Corrugated 840 Touch Screen Roof Tile Roll Forming Machine
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support,Field maintenance and repair service,Field installation
Raw material :
PL，GL，PPGI，PPGL
Voltage :
380/50Hz/3PH
Control system :
PLC
Speed :
15-20m/min
thickness :
0.3mm-0.8mm
Power :
3Kw
Raw material width :
1000 mm
Hydraulic station power :
3KW
Description

Corrugated 840 Touch Screen Roof Tile Roll Forming Machine

Corrugated 840 Touch Screen Roof Tile Roll Forming Machine is our main model in the African market. The usage rate of its version in Africa is as high as 95%. The machine has high efficiency, low energy consumption and stable operation, which can effectively save customers' time and labor costs.

Specification
No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3mm-0.8mm
3 Working Speed 15-20/min
4 Roller Station 12 Raws
5

Dimension (L*W*H)

 4500 mm*1200 mm*1200 mm
6 Machine Weight 3800 KG
7

Electrical Control System

PLC

8

Drive Motor Power

 3 KW
9

Hydraulic Station Power

 3 KW
10

Power Supply

380V/60HZ/3 PH
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard

Application

This type of tile is suitable for daily buildings such as warehouses, special buildings, roofs, walls and large-span steel structure houses, etc. The tiles have anti-corrosion and acid-resistant effects. It has light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rainproof, and long life. the service life of this tiles is 10-15 years

Advantage

Cangzhou willing industrial is located in Fuzhuang Development Zone, 104 National Road, Botou City, Cangzhou City, Hebei Province. It is a manufacturer specializing in the design, production and sales of cold-formed machinery and composite board assembly lines. The company covers an area of 14,000 square meters and has 88 employees. , The company has strong strength, perfect quality and perfect after-sales service. It is a professional manufacturer of cold-formed machinery and equipment.
