0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment
0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment
0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment
0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment
Specifications
Main motor power :
22Kw
Voltage :
380V 60 HZ or Customized
Color :
Client's Request
Forming speed :
10-12m/min
Product Name :
0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment
Cutting system :
Automatic Hydyaulic Cutting
Roller stations :
28 stations
Way of Drive :
1.2 inch single chain
Brand Name :
FMS
Model Number :
Floor Deck
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
40' FLC
Description

0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment


0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment .Steel floor deck sheet is rolled by steel floor decking roll forming machine,the finished product are of many features,such as simple shape,large wave height,high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site,in the high story building,it not only can save steel mould board,but also reduce the bearing of the floor: on basis of equal capacity,it reduces the steel amount of engineering useage,so that it saves cost of investment.

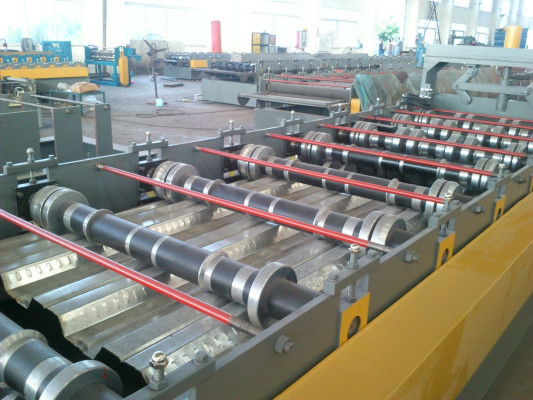

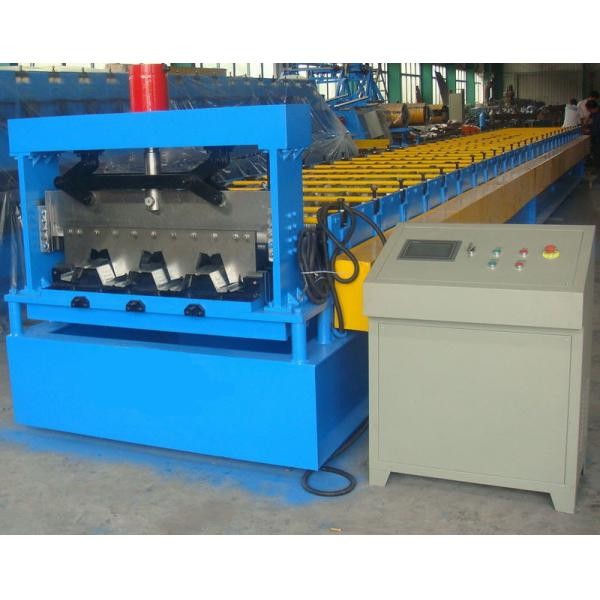

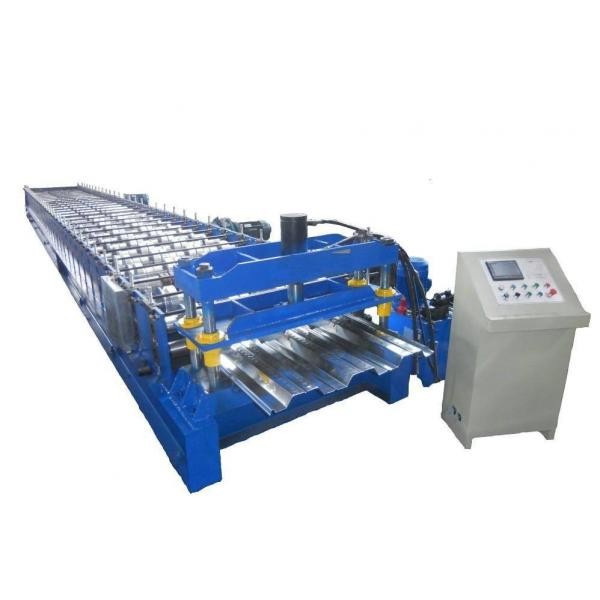

The steel floor deck roll foming machine consists of uncoiler and its base,infeed guides,fixed position driven forming stations,cutting device,hydraulic station,PLC control console and so on. We can design different kinds of profile and fitting for steel deck machine,as per customers’ requirements.

Specification

Item NO Name Description
1 Total power

Motor power-22kw with cycloidal reducer

Hydraulic power-7.5kw
2 Rows of rollers 28 rows
3 Productivity 10-12m/min
4 Diameter of shaft 95mm
5 Voltage 380V 50Hz 3Phases
6 Machine body H-model Steel
7 Shafts 45# steel quenching treatment
8 Rollers Gcr15 forge steel, coated with chrome
9

Width of the raw material/

feeding width

 1000mm
10 Effective width 688mm
11 Electrical Control System PLC
12 Cutting accuracy 1.5mm
13 Hydraulic Station Pressure 12Mpa

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
