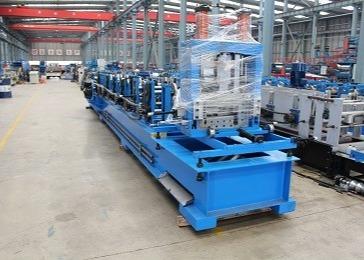

80mm 120mm 300mm Galvalume Cz Purlin Roll Forming Machine
80mm 120mm 300mm Galvalume Cz Purlin Roll Forming Machine
Specifications
Brand Name :
CANGZHOU WILLING
Model Number :
C and Z Machine
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
40' FLC
Product Name :
C Purlin 80-300mm Z Purlin120-300mm CZ Purlin Roll Forming Machine
Raw Material :
Galvalume, PPGI
Dimension(L*W*H) :
9500 mm*1400 mm* 2000
Material Thickness :
1 mm - 3mm
Weight :
9T
Production capacity :
10-25m/min
Voltage :
380V/50HZ/3PH
Main motor power: :
15Kw
Hydraulic motor :
22Kw
Hydraulic pressure :
18-20Mpa
Description

C Purlin 80-300mm Z Purlin120-300mm CZ Purlin Roll Forming Machine

C & Z shape purline forming machine can produce both C &Z shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C & Z shape forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system.

Specification

No. Item Description
1 Coil Galvanized
2 Material Thickness 1 mm- 3 mm
3 Working Speed 15- 20 m/min ( not including the cutting time)
4 Roller Station 12-16 Raws
5

Dimension (L*W*H)

 9500 mm*1400 mm*2000 mm
6 Machine Weight 9000 KG
7

Electrical Control System

Panasonic PLC

8

Drive Motor Power

 15KW
9

Hydraulic Station Power

 22 KW
10

Power Supply

360V/60HZ/3PH
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 2 inch
13

Material of Shaft

80 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard

Application

The products of C & Z purlin forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large scale and mid scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Advantage

CZ purlin roll forming machine is a type C machine and a Z machine into one. It is controlled by the PLC computer in a short period of time to realize the exchange of the purlins of the two models of CZ. It is manual Rotate the fixed rotating plate to realize the CZ interchange. The length, quantity, longitudinal hole distance and other parameters of the purlin can be automatically carried out, and this equipment is stable and reliable in operation, the punching hole is high in precision, and the output is high. At the same time, it is also for the majority of users. Save production space.

80mm 120mm 300mm Galvalume Cz Purlin Roll Forming Machine

Product tags

z-purlin roll forming machine

,

cz purlin roll forming machine

,

z purlin roll forming machine
