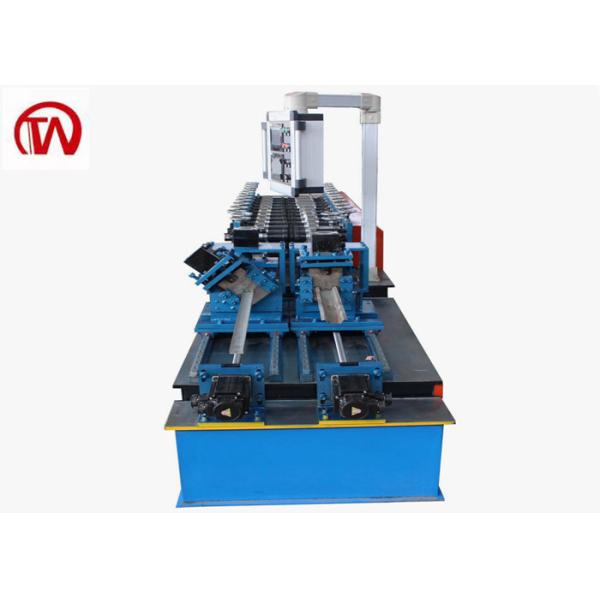

Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines

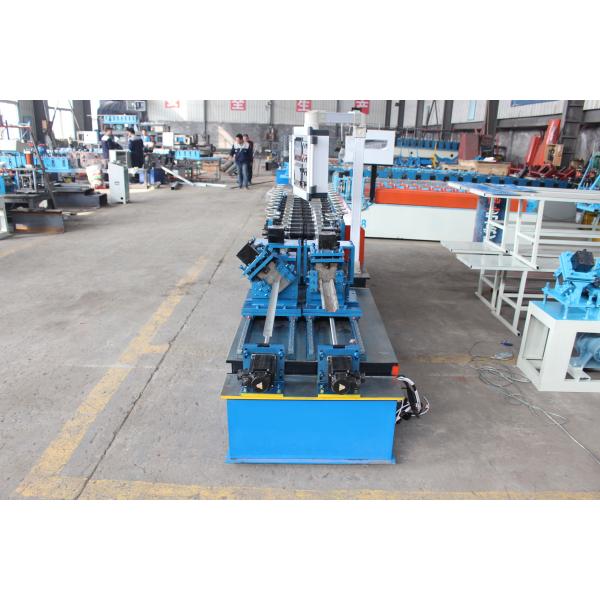

Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines
Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines
Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines
Specifications
Raw Material :
Galvalume, Galvanized Strips
Dimension(L*W*H) :
6500 mm*1500 mm*1500 mm
Brand Name :
CANGZHOU WILLING
Model Number :
Stud and Track
Certification :
ISO CE
Place of Origin :
CHINA MAINLAND
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Working Days
Packaging Details :
20' FLC
Original :
China
Certtificate :
ISO, CE
color :
to order
Weight :
2.3 tons
Voltage :
Customized
Speed :
30m/min - 50 m/min
Material Thickness :
0.3mm - 0.8mm
Description

Tracking Shearing Style Light Gauge Steel Frame Roll Forming Machine

This machine is designed and fabricated as roll former to make light steel frames, such as stud for example. It is a good racking Shearing Style Light Gauge Steel Frame Roll Forming Machine with a shear which cuts the frame without stop. Therefore itt saves time and make the production more efficient. It is very good partner machine that used in light gauge steel frame industry and helpul partner for metal building contractor.

It is available to add any other units into this Roll Forming Machine Line when you want to make some features on the profile. For example, you add a punching unit when need holes, and a die roller when need graphic.

Profile

Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines

Also can punch the hole and lettering

Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines

Specification

No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 20-30 GA
3 Working Speed 30-50 m/min
4 Roller Station 14 Raws
5

Dimension (L*W*H)

 6000 mm*1500 mm*1500 mm
6 Machine Weight 4500 KG
7

Electrical Control System

PLC (can be customized)
8

Drive Motor Power

 7.5 KW
9

Hydraulic Station Power

 5 KW
10

Power Supply

240V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Tracking Shearing Style 0.8mm Light Gauge Steel Framing Machines
