Color Ppgl 600mm Width SGCC Prepainted Steel Coil
Color Ppgl 600mm Width SGCC Prepainted Steel Coil
Specifications
Brand Name :
polygold,discovery
Model Number :
01
Certification :
soncap,ISO,SGS
Place of Origin :
China
MOQ :
25tons
Price :
usd600-1000/ton
Payment Terms :
L/C, T/T
Supply Ability :
11000 tons per month
Delivery Time :
7-30days after receiving deposit
Packaging Details :
export standed packing
Width :
600-1250mm
Application :
roofing sheet
Grade :
SGCC,DX51D,STEEL COIL,DX51D/SGCC/SGHC,SGCC/DX51D/DX52D/DX53D
Type :
Steel Coil
Length :
Customers' Requirement
Technique :
Cold Rolled
Standard :
ASTM,GB,JIS,AISI,DIN
Color :
RAL Color
Coil weight :
3-5 Tons
Product name :
Prepainted Galvanized Steel
Material :
SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z,SGCC/CGCC/DX51D+Z,Q195/Q235/Q235b,Galvanized material,SGCE
Zinc coating :
30-275g/m2
Thickness :
0.12mm-2.0mm
Surface :
Galvanized Coated
Coil id :
508mm/610mm
Description

color steel coil,color coated iron

sheet ppgi color coated steel for roofing sheet / ppgi

steel coil

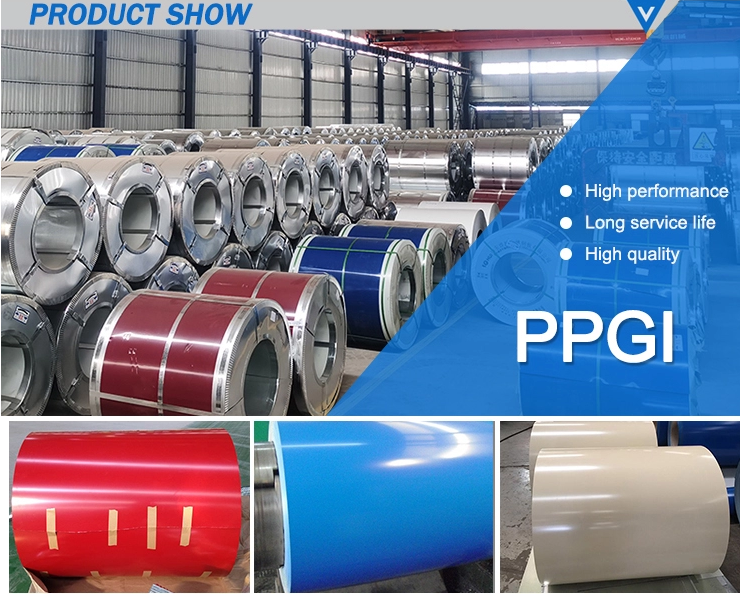

1.products show

Color Ppgl 600mm Width SGCC Prepainted Steel Coil

2. specifications of ppgi coil

Contents
Prepainted Galvanized-PPGI
Prepainted Galvalume-PPGL
BASE METAL
GALVANIZED
GALVALUME / ALUZINC
STANDARDS
JIS G -3312,ASTM A -755 ,
ASTM A 755M,
EN -10169, IS -14246,G300-G550
WITH SUBSTRATE ASTM A792 M
THICKNESS
0.13~1.20 mm
0.13~1.20 mm
Width
600 TO 1300 mm
600 TO 1300 mm
Coil ID
508 & 610 mm
508 & 610 mm
Coil OD
1700 mm max
1700 mm max
Coil WT
3 TO 8 MT
3 TO 8 MT Max – With ref. to width of coil
Substrate
Soft, Medium, Hard
Soft, Medium, Hard
Hardness
YS (Mpa)
240 -700
240 -700
Coating Mass
Z 40-275 (Grams / m2)
AZ 50-150 (Grams / m2)
Paint Systems
Primers: Epoxy, PU
Primers: Epoxy, PU
Polyester (RMP/PE)
Polyester (RMP/PE)
Silicon Modified Polyester (SMP)
Silicon Modified Polyester (SMP)
Poly Vinyl Di Flouride (PVDF)
Poly Vinyl Di Flouride (PVDF)
Back Coating: Epoxy, Polyester, PU
Back Coating: Epoxy, Polyester, PU
Coating
20 – 50 Microns
20 – 50 Microns
Thickness
top can 3 coats and back can 2 coats
top can 3 coats and back can 2 coats
Colour
As Per RAL Chart/Customer requirements.
As Per RAL Chart/Customer requirements.
Surface Finishes
Glossy and Matte
Glossy and Matte
Cut to length
200mm-5000mm
200mm-5000mm
Slits
30mm and above
30mm and above
Packing
Sea Worthy Export Packaging
Sea Worthy Export Packaging

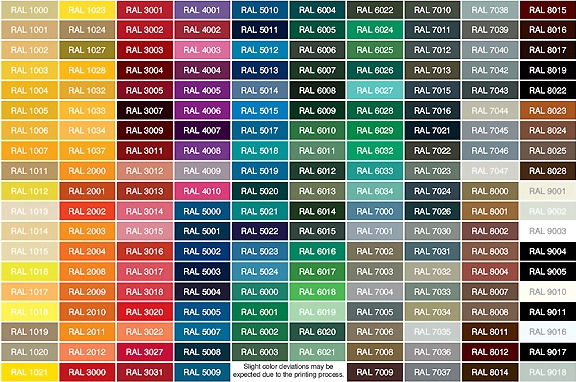

3.Ral color

Color Ppgl 600mm Width SGCC Prepainted Steel Coil

Color Ppgl 600mm Width SGCC Prepainted Steel Coil

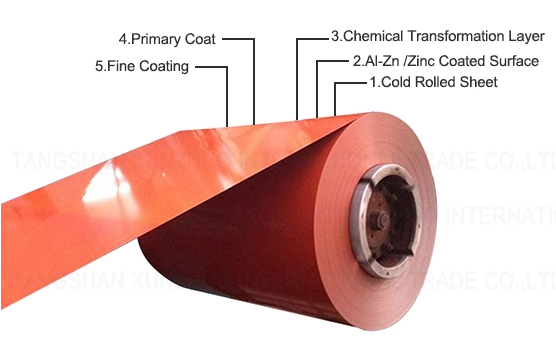

4.COATED TREATMENT

Color Ppgl 600mm Width SGCC Prepainted Steel Coil

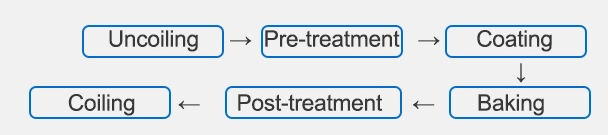

5.PRODUCTION LINE

Color Ppgl 600mm Width SGCC Prepainted Steel Coil

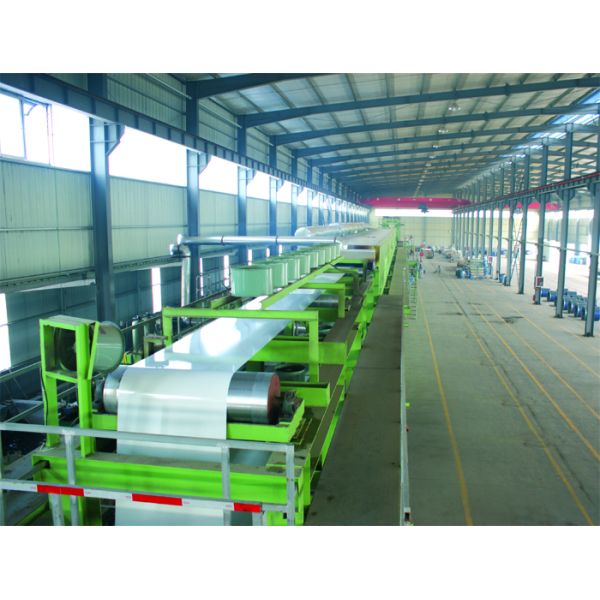

6.FACTORY

Color Ppgl 600mm Width SGCC Prepainted Steel Coil

Color Ppgl 600mm Width SGCC Prepainted Steel Coil

Color Ppgl 600mm Width SGCC Prepainted Steel Coil

Color Ppgl 600mm Width SGCC Prepainted Steel Coil

Color Ppgl 600mm Width SGCC Prepainted Steel Coil

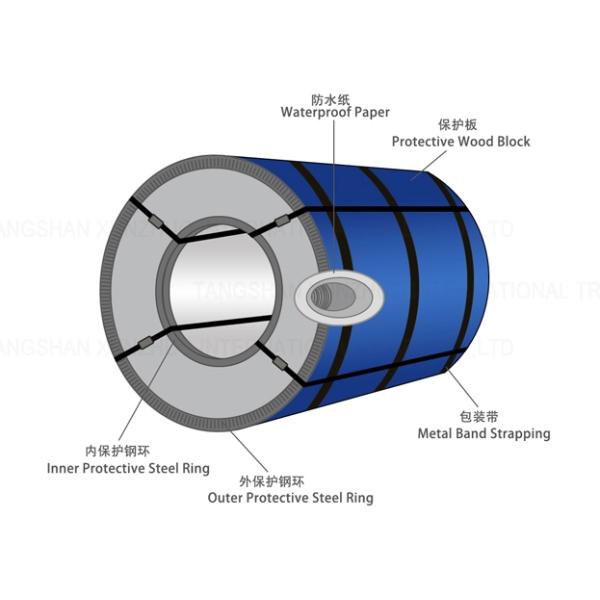

7.package details

Color Ppgl 600mm Width SGCC Prepainted Steel Coil

8. LOADING

Color Ppgl 600mm Width SGCC Prepainted Steel Coil
