Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model NO :
840-900 Double layer roll forming machine
Certification :
CE, SGS
Customized :
Customized
Transmission Mode :
One Inch Chain
Usage :
Roof, Wall, Floor
Cutting Method :

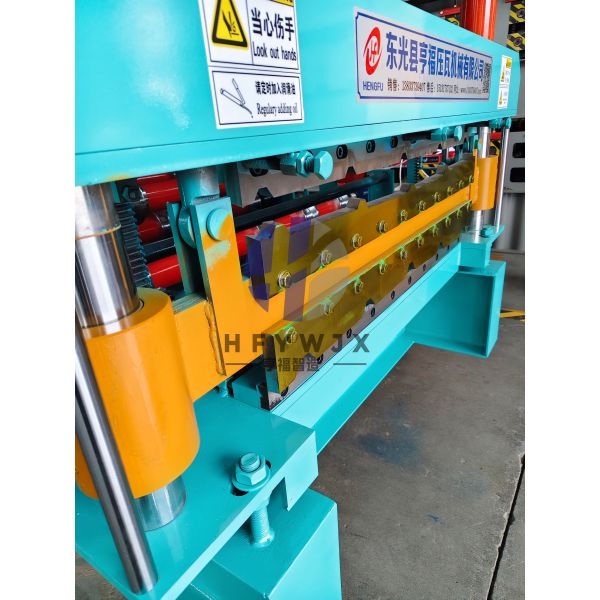

Hydraulic shearing
Tile Type :
Colored Steel
Transport Package :
Plastic Film & Steel Wire Fixed
Control System :
PLC System
Voltage :
380V 50Hz 3phases(Customizable)
Description

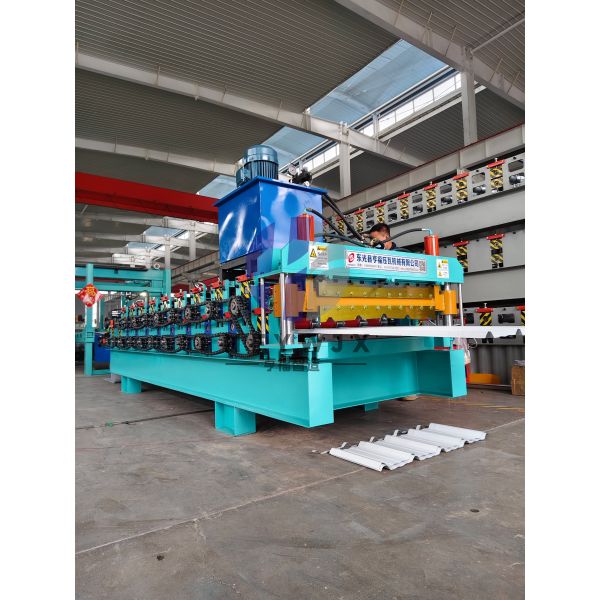

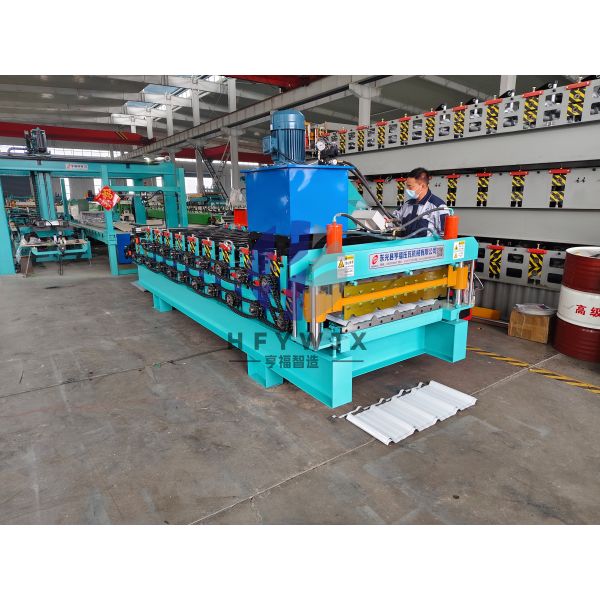

High Efficiency Double Layer 840/900 Roll Forming Machine for Metal Roof and Wall Panel Production
The 840-900 double layer roll forming machine is a highly efficient solution designed for producing color steel roof and wall panels. By integrating two popular profiles—840 and 900—into a single machine, it allows manufacturers to switch between panel types without changing equipment, significantly improving productivity and saving factory space.
This machine is engineered with a robust steel frame and high-precision rollers to ensure stable performance and consistent panel quality. The roll forming process is smooth and continuous, producing panels with accurate dimensions, clean edges, and strong structural integrity, making them ideal for various construction applications.
Advanced Control System

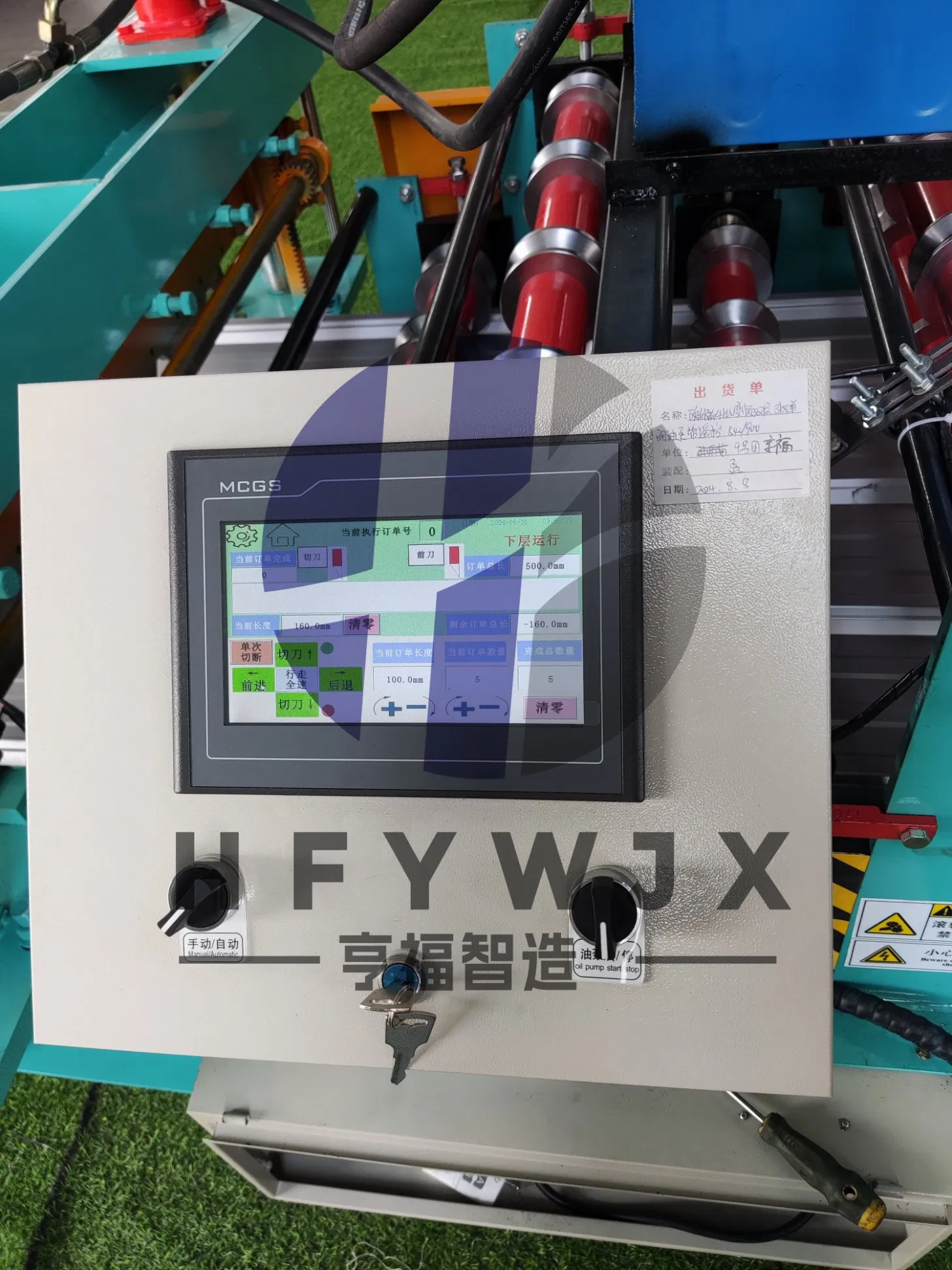

Equipped with an advanced PLC-based control system, the machine offers easy operation and precise length control. Operators can set production parameters through a user-friendly interface, enabling automatic cutting and efficient workflow with minimal manual intervention.
Key Advantages
  • Double-layer design reduces investment costs by combining two machines into one
  • Enhanced flexibility to respond quickly to different market demands
  • Robust construction with high-precision components
  • Ideal for industrial buildings, warehouses, workshops, and residential structures
Technical Specifications
Model NO Double layer roll forming machine
Condition New
Usage Roof
External dimensions 6500mm x 1300mm x 1200mm
Machine frame 300H steel frame
Number of rolling mill sets 13-11 row molding
Roll material 45# steel rough lathe fine lathe outer circle grinding and electroplating treatment
Spindle material 45 steel
Spindle diameter Φ70mm (Solid shaft)
Type of Driven Chain drive
Forming Speed 0-35M/min
Main motor power 7.5KW
Electric control system PLC
Customized Customized
Origin Cangzhou, Hebei
Warranty 1 year
Product Gallery
Double Layer 840/900 Roll Forming Machine with PLC Control for Metal Roof and Wall Panels Double Layer 840/900 Roll Forming Machine with PLC Control for Metal Roof and Wall Panels Double Layer 840/900 Roll Forming Machine with PLC Control for Metal Roof and Wall Panels Double Layer 840/900 Roll Forming Machine with PLC Control for Metal Roof and Wall Panels
Frequently Asked Questions
Q1: Are you a trading company or a factory?
A1: We are a manufacturer located in Cangzhou, Hebei. We have our own product design team. Welcome to visit our factory and inspect the quality of our machines on-site.
Q2: Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3: Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4: What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine. If the broken parts can't be repaired, we can send new parts to replace the broken parts freely, but you need to pay the express cost. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply technical support for the whole life of the equipment.
Q5: Can you finish the machine during the delivery time?
A5: We will finish the machine in time according to determined lead time.
