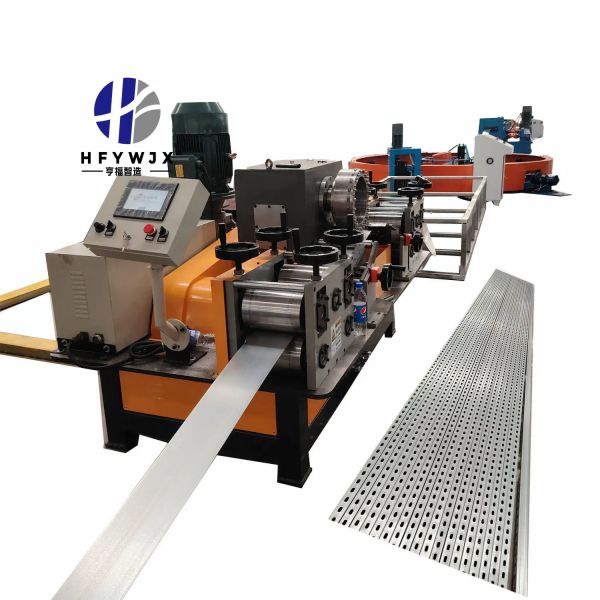

Automatic Solar Bracket Roll Forming Machine With High Accuracy And Adjustable PV Mounting Structure Production Line
Automatic Solar Bracket Roll Forming Machine With High Accuracy And Adjustable PV Mounting Structure Production Line
Automatic Solar Bracket Roll Forming Machine With High Accuracy And Adjustable PV Mounting Structure Production Line
Automatic Solar Bracket Roll Forming Machine With High Accuracy And Adjustable PV Mounting Structure Production Line
Automatic Solar Bracket Roll Forming Machine With High Accuracy And Adjustable PV Mounting Structure Production Line
Automatic Solar Bracket Roll Forming Machine With High Accuracy And Adjustable PV Mounting Structure Production Line
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Certification :
SGS
Application :
Industrial
Material :
Steel
Type :
Roof Bracket
Automaticity :
Highly Automatic
Efficiency :
Efficient
Accuracy :
High Accuracy
Economy :
High Efficiency
Flexibility :
Adjustable
Security Properties :
Stable and Reliable
Specification :
2255mm*1250mm*1400mm
Description
Solar Bracket Roll Forming Machine
The Automatic Solar Mounting System Photovoltaic Bracket Forming Machine is a specialized roll forming solution designed for the fast-growing solar energy industry. It efficiently produces high-strength photovoltaic mounting brackets that are essential for supporting solar panels in various installation environments.
This production line features a fully automated workflow, integrating uncoiling, leveling, servo feeding, punching, roll forming, and cutting into one continuous system. With forming speeds ranging from 8 to 50 meters per minute and a multi-roll forming structure, it delivers both high efficiency and excellent forming accuracy.
Manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd., this equipment represents a productivity solution tailored for the renewable energy sector, providing efficient, customizable machinery to support the rapid expansion of solar energy projects worldwide.
Technical Specifications
Material Galvanized sheet 2.0mm-2.5mm
Machine Frame Box welding frame
Wall Panel T=55mm archway style
Number of Roller Groups 24 groups of main rollers
Roll Material CR12 precision turning and hard chrome plating
Spindle Material 45# high quality steel tempered
Spindle Diameter Φ80mm solid shaft
Transmission Mode Gearbox transmission
Production Speed 8m-50m/minute
Hydraulic Shearing Power 11kw large valve blade pump station
Cutting Hydraulic twisting and shearing without stopping the machine
Cutting Mold Cut with two blades, Cr12 quenching treatment, HRC58-60
Electronic Control System Industrial computer PLC frequency conversion control, cutting length error ≤ 2mm 55KW variable frequency touch screen vertical electric control box with remote control
Overall Dimensions Length 2250, Width 1250, Height 1400
Product Images
Automatic Solar Bracket Roll Forming Machine With High Accuracy And Adjustable PV Mounting Structure Production Line Automatic Solar Bracket Roll Forming Machine With High Accuracy And Adjustable PV Mounting Structure Production Line Automatic Solar Bracket Roll Forming Machine With High Accuracy And Adjustable PV Mounting Structure Production Line
Frequently Asked Questions
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
