High Precision Fence Roll Forming Machine with 25 m/min Rolling Speed and 380V / 50Hz Power Supply
High Precision Fence Roll Forming Machine with 25 m/min Rolling Speed and 380V / 50Hz Power Supply
High Precision Fence Roll Forming Machine with 25 m/min Rolling Speed and 380V / 50Hz Power Supply
High Precision Fence Roll Forming Machine with 25 m/min Rolling Speed and 380V / 50Hz Power Supply
High Precision Fence Roll Forming Machine with 25 m/min Rolling Speed and 380V / 50Hz Power Supply
High Precision Fence Roll Forming Machine with 25 m/min Rolling Speed and 380V / 50Hz Power Supply
High Precision Fence Roll Forming Machine with 25 m/min Rolling Speed and 380V / 50Hz Power Supply
High Precision Fence Roll Forming Machine with 25 m/min Rolling Speed and 380V / 50Hz Power Supply
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Max. Rolling Speed :
≤ 25 m/min
Installed Power :
12 kW
Voltage/Frequency :
380V / 50Hz ±0.4Hz
Inlet Width :
156.2mm / 125mm
Material Thickness :
0.35mm – 0.5mm
Overall Dimensions :
9m × 1m × 1.3m
Net Weight :
3100 kg
Required Operators :
1–2 persons
Uncoiler :
Cantilever, Manual Tension
Operation Modes :
Debug / Auto
Description
Durable Steel Fence Panel Production Line High Precision Metal Picket Cold Roll Former for Residential Construction
As a leading manufacturer in the roll forming equipment industry, Dongguang Hengfu Roll Forming Machine Co., Ltd. proudly presents its premium Fence Roll Forming Machine, a masterpiece of engineering designed to meet the rigorous demands of modern fence production. This state-of-the-art machine embodies the company's commitment to quality, efficiency, and innovation, making it the ideal solution for businesses seeking to enhance their production capabilities.
Technical Excellence
With years of expertise in cold roll forming technology, Dongguang Hengfu has crafted a machine that delivers exceptional performance while ensuring long-term reliability. The machine features impressive technical parameters that set it apart from competitors, reflecting our dedication to engineering excellence.
Parameter Specifications
Rolling Speed ≤ 25 m/min (excluding downtime)
Installed Power 12 kW
Power Supply 380 V, 50 Hz ± 0.4 Hz
Inlet Width 156.2 mm / 125 mm
Material Thickness Range 0.35 mm - 0.5 mm
Overall Size (L×W×H) 9 × 1 × 1.3 m (excl. receiving table)
Equipment Weight ~3100 kg
Required Operators 1-2 persons
Uncoiler Type Cantilever (manual tensioning)
Operation Modes Debugging / Automatic
Material Versatility
One of the key advantages of our Fence Roll Forming Machine is its exceptional versatility in material handling. The machine efficiently processes materials with an inlet width of 156.2mm/125mm and a thickness range of 0.35mm to 0.5mm, accommodating various fence panel designs and specifications without extensive reconfiguration.
Operational Efficiency
Designed with the operator in mind, our Fence Roll Forming Machine prioritizes user-friendliness and low maintenance. It features both manual adjustment and automatic operation modes, providing flexibility for different production scenarios. The machine requires only 1-2 operators to run efficiently, significantly cutting labor costs while ensuring smooth workflow.

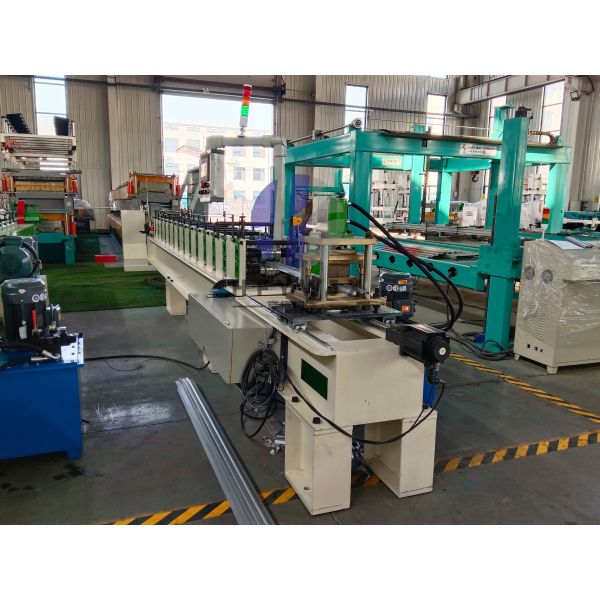

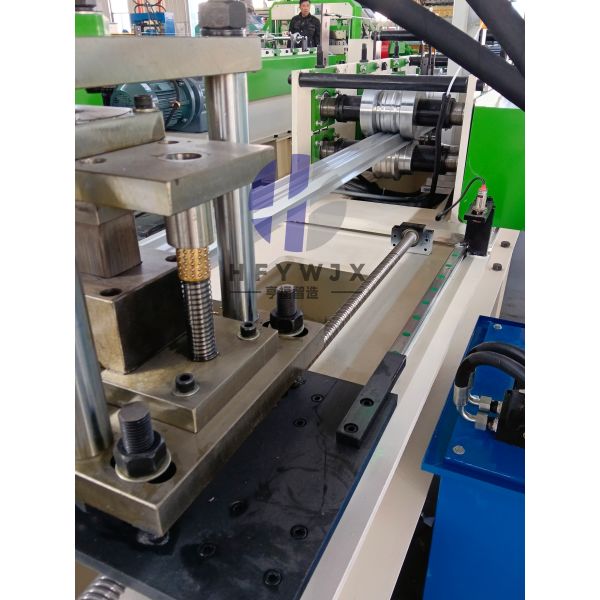

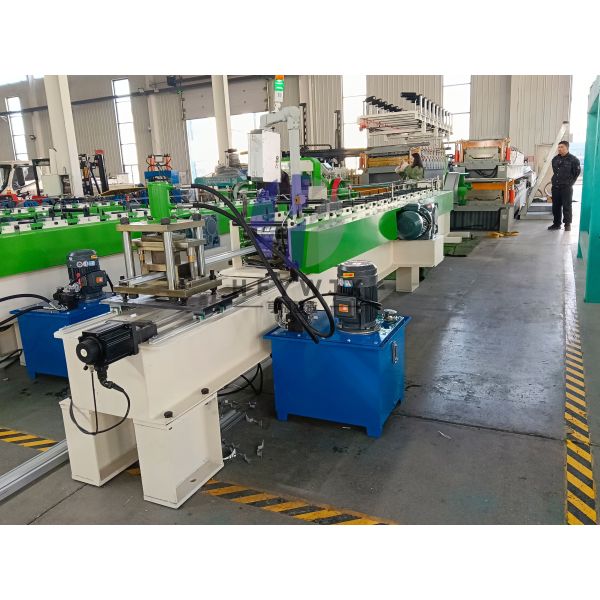

Product Gallery
High Precision Fence Roll Forming Machine with 25 m/min Rolling Speed and 380V / 50Hz Power Supply High Precision Fence Roll Forming Machine with 25 m/min Rolling Speed and 380V / 50Hz Power Supply High Precision Fence Roll Forming Machine with 25 m/min Rolling Speed and 380V / 50Hz Power Supply
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
