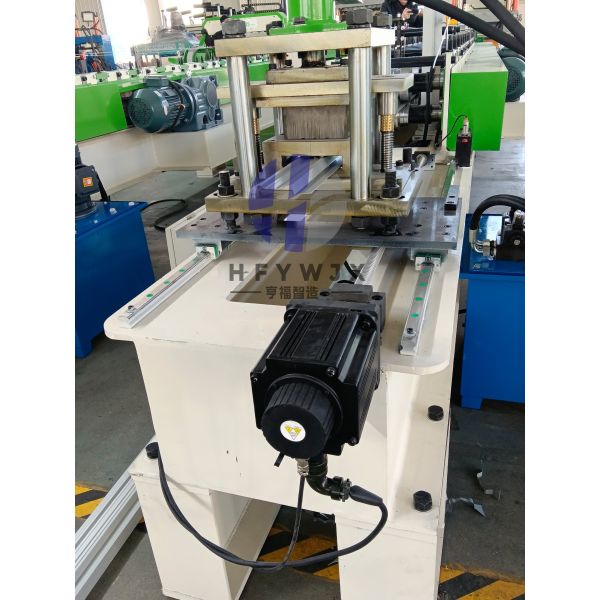

High Speed Fence Roll Forming Machine With 14 Forming Stations And PLC Control System For Metal Palisade
High Speed Fence Roll Forming Machine With 14 Forming Stations And PLC Control System For Metal Palisade
High Speed Fence Roll Forming Machine With 14 Forming Stations And PLC Control System For Metal Palisade
High Speed Fence Roll Forming Machine With 14 Forming Stations And PLC Control System For Metal Palisade
High Speed Fence Roll Forming Machine With 14 Forming Stations And PLC Control System For Metal Palisade
High Speed Fence Roll Forming Machine With 14 Forming Stations And PLC Control System For Metal Palisade
High Speed Fence Roll Forming Machine With 14 Forming Stations And PLC Control System For Metal Palisade
High Speed Fence Roll Forming Machine With 14 Forming Stations And PLC Control System For Metal Palisade
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Material Thickness :
0.35–0.5 mm
Feeding Width :
125 mm / 156.2 mm
Forming Stations :
14 rows
Main Shaft :
Φ56 mm, 45# steel
Roller Material :
45# steel, hard chrome plated
Rolling Speed :
≤25 m/min
Total Power :
12 kW
Voltage :
380V 50Hz 3Phase
Machine Size :
9×1×1.3 m
Weight :
3100 kg
Description
High Speed Fence Roll Forming Machine Automatic Metal Palisade Post Making Equipment
Dongguang Hengfu Roll Forming Machine Co., Ltd. presents a fully automatic fence panel roll forming machine, engineered for high-efficiency, precise, and stable production of metal fence panels. This integrated production line combines coil uncoiling, servo feeding, roll forming, punching, cutting, and material collecting into one seamless workflow, delivering consistent profile quality, smooth surface finish, and strong structural rigidity.
This fence panel forming machine is specially optimized for processing galvanized steel coils and color-coated steel coils—materials widely recognized for their corrosion resistance and durability in outdoor environments. It supports flexible production of fence panels with customizable dimensions, adapting to diverse application scenarios such as residential boundaries, industrial zones, highway isolation, and garden enclosures.
At the core of the machine is a heavy-duty structural design built for long-term industrial use. It features a welded steel frame with thickened vertical plates, providing exceptional rigidity and minimizing vibration during high-speed operation. The forming system is equipped with precision-machined rollers made from high-quality alloy steel (CR12MOV), which undergo hard chrome plating to enhance wear resistance and prevent material scratches.
Technical Specifications
Item Specification
Material Thickness 0.35-0.5 mm
Feeding Width 125 mm / 156.2 mm
Forming Stations 14 rows
Main Shaft Φ56 mm, 45# steel
Rolling Speed ≤25 m/min
Total Power 12 kW
Voltage 380V 50Hz 3Phase
Machine Size 9×1×1.3 m
Weight 3100 kg
Control System PLC + Touch Screen
Operation Language Russian / English
Decoiler Capacity 1000 kg
Cutter Type Hydraulic Flying Shear
Product Gallery
High Speed Fence Roll Forming Machine With 14 Forming Stations And PLC Control System For Metal Palisade High Speed Fence Roll Forming Machine With 14 Forming Stations And PLC Control System For Metal Palisade High Speed Fence Roll Forming Machine With 14 Forming Stations And PLC Control System For Metal Palisade
Frequently Asked Questions
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
Can it be integrated into a complete color steel production line?
Yes, it can—forming a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
Can a laminating machine be added?
Yes, it allows for an integrated production line combining lamination and forming.
