Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Specifications
Brand Name :
HENGFU
Model Number :
Fence Panel Forming Machine
Place of Origin :
CHINA
MOQ :
1 Piece
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Delivery Time :
45Days
Packaging Details :
Plastic Film & Steel Wire Fixed
Tile Type :
Glazed Steel
Certification :
SGS
Condition :
New
Customized :
Customized
Usage :
Roof, Wall
Transmission Method :
Electric
Transmission Mode :
4kw Servo Gear Transmission
Electronic Control System :
PLC
Package Size :
500.00cm * 100.00cm * 120.00cm
Package Gross Weight :
2000.000kg
Description
Fence Panel Forming Machine
Technical Specifications
Model NO Fence plate forming machine
Condition New
Usage Wall
Feeding Width 119mm
Machine Frame 80 square tube frame
Forming Speed 20-30M/min
Color Customized
Type of Driven Chain drive
Transmission Method Electric
Number of Rolling Mill Sets 12 row molding
Spindle Diameter 55mm (Solid shaft)
Continuation Rack Shake the feeding rack with both hands and press the material roller
Customized Customized
Operating Interface Language Chinese/English/Russian
Specification 5000mm x 1000mm x 1200mm
Origin Cangzhou, Hebei
Warranty 1 year
Production Capacity 400 sets/year
Product Overview
The metal fence plate forming machine is specialized equipment for manufacturing metal fence panels. It consists of a robust body structure, precision transmission system, and customizable forming molds. The machine's stable frame ensures operational reliability, while the transmission system delivers accurate power control to drive the forming process. Different mold configurations enable production of various fence panel styles including pointed and wave patterns.
During operation, metal raw materials are fed into the machine and undergo sequential rolling and forming stages. The forming molds perform bending, squeezing, and shaping operations to transform metal sheets into finished fence panels. This equipment delivers high production efficiency with consistent dimensional accuracy, making it ideal for construction, horticulture, and industrial protection applications.

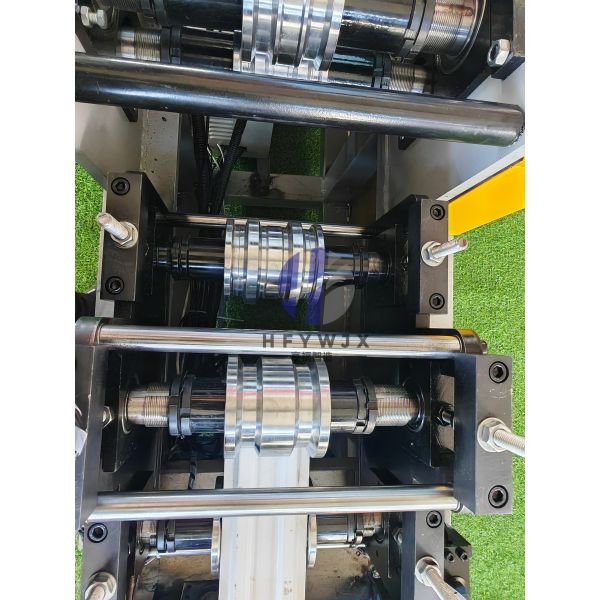

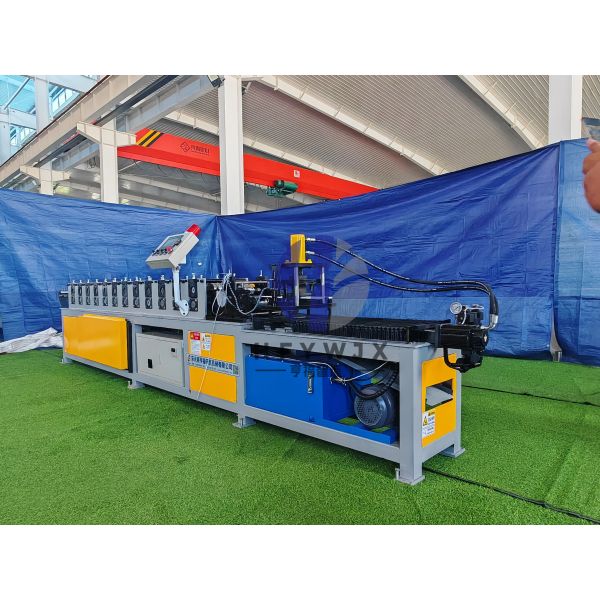

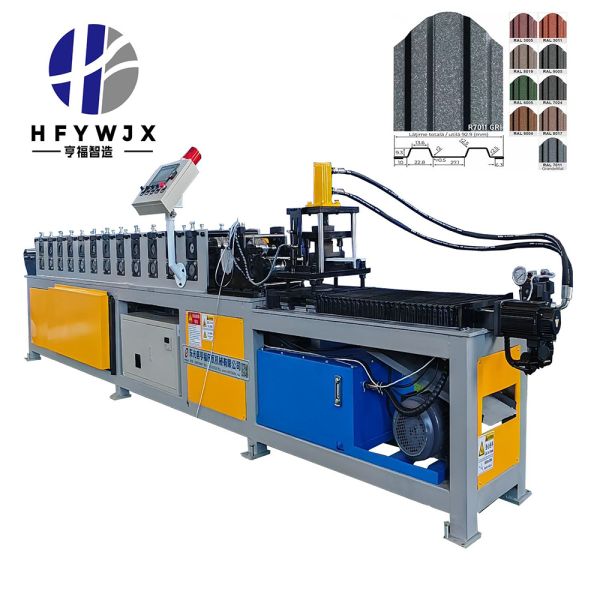

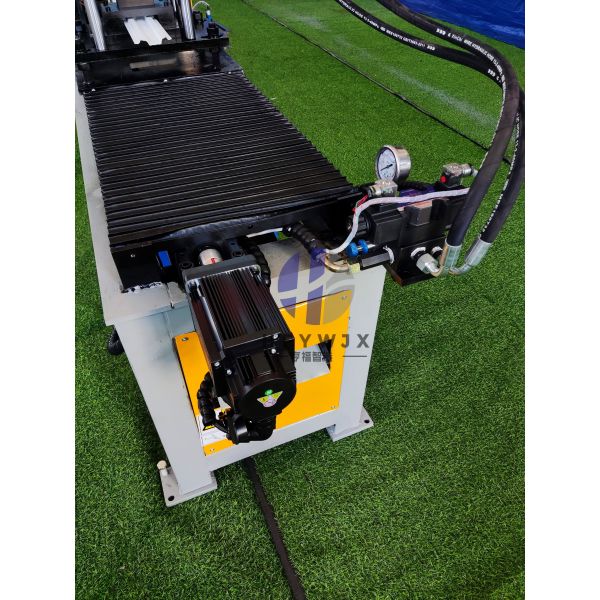

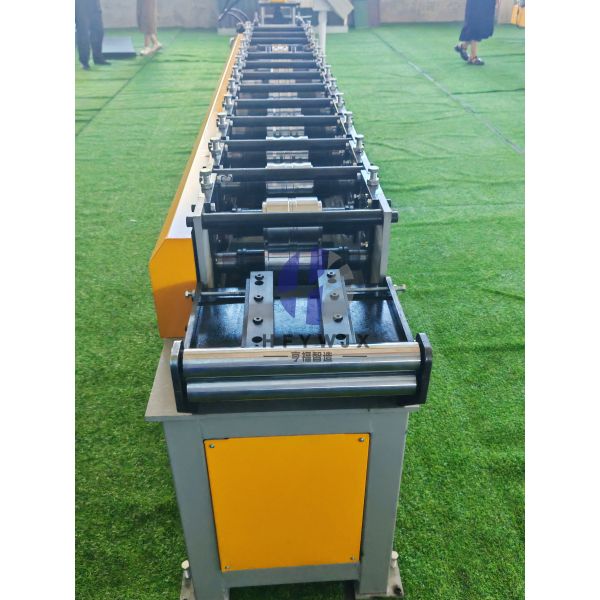

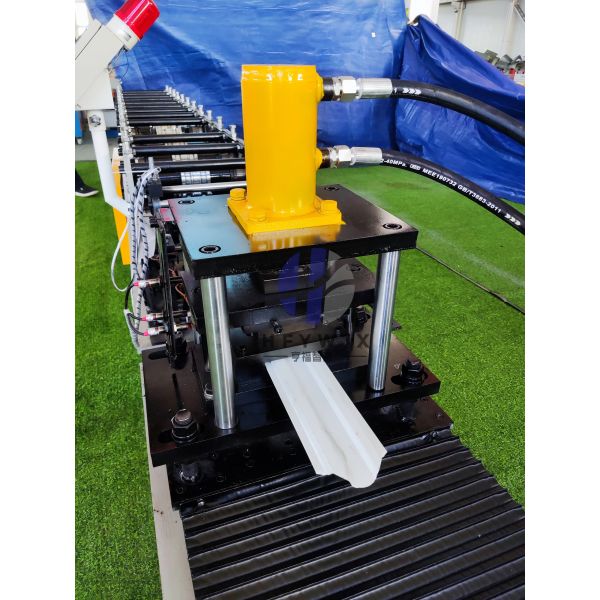

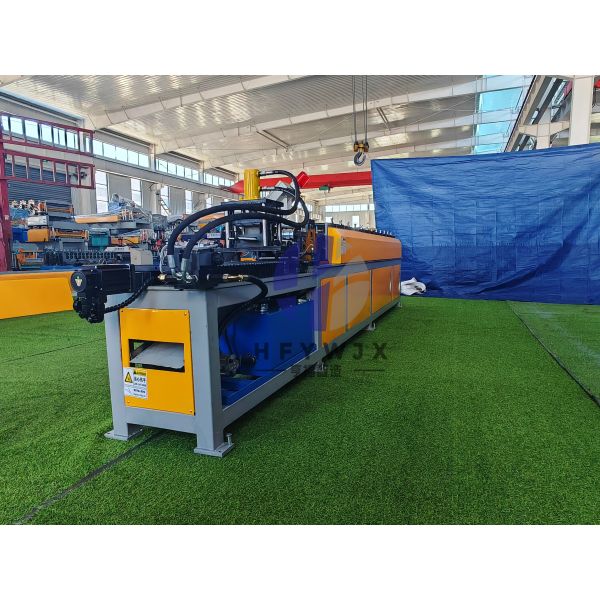

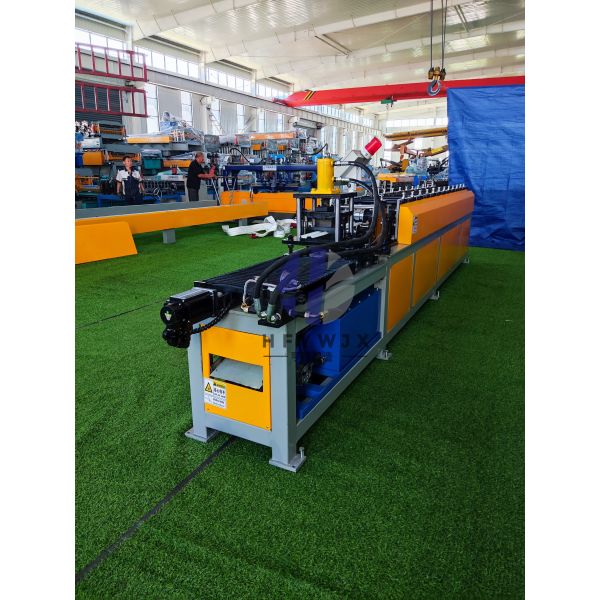

Product Images
Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission Customized Metal Fence Plate Forming Machine With 12 Row Molding 4kw Servo Gear Transmission
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
