Fence Panel Roll Forming Machine with 12 Row Molding PLC Electronic Control System
Fence Panel Roll Forming Machine with 12 Row Molding PLC Electronic Control System
Fence Panel Roll Forming Machine with 12 Row Molding PLC Electronic Control System
Fence Panel Roll Forming Machine with 12 Row Molding PLC Electronic Control System
Fence Panel Roll Forming Machine with 12 Row Molding PLC Electronic Control System
Fence Panel Roll Forming Machine with 12 Row Molding PLC Electronic Control System
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model NO. :
Fence Panel Forming Machine
Certification :
CE, SGS
Customized :
Customized
Transmission Method :
Electric
Transmission Mode :
4kw Servo Gear Transmission
Transport Package :
Plastic Film & Steel Wire Fixed
Origin :
Dongguang, Cangzhou City
Production Capacity :
400sets/ Year
Tile Type :
Glazed Steel
Condition :
New
Usage :
Roof, Wall
Model :
Fence Plate Forming Machine
Electronic Control System :
PLC
Specification :
5000mmx1000mmx1200mm
HS Code :
8455229090
Description
Fence Panel Roll Forming Machine
This Metal Steel Wall Panel Fence Making Roll Forming Machine is a high-performance industrial solution designed to produce robust and visually appealing metal fence panels with outstanding precision. Engineered for continuous cold roll forming, it efficiently converts steel coils into uniform wall panels that offer excellent strength, corrosion resistance, and aesthetic appeal for residential, commercial, and industrial fencing applications.
The machine structure is built with heavy-duty welded steel and precision-aligned rollers, ensuring stable operation and consistent dimensional accuracy throughout the production process. Its optimized forming sequence produces smooth, straight panels with consistent profiles, eliminating deformation and enhancing the final product's structural integrity and longevity.
Equipped with an intelligent PLC control system and user-friendly touch screen interface, this line allows operators to set parameters such as panel length, production speed, and cut positions with ease. The integrated hydraulic cutting unit delivers clean, burr-free cuts, reducing material waste and ensuring each fence panel meets strict quality standards.
Adaptable to a wide range of material thicknesses and panel designs, this machine offers excellent flexibility to meet diverse market requirements. Its efficient production flow and automated features greatly reduce labor intensity while boosting output for high-volume manufacturing environments, making it ideal for modern fence panel production lines.
Dongguang Hengfu Roll Forming Machine Co., Ltd. is renowned for manufacturing high-quality equipment with meticulous craftsmanship and dependable performance. Their fence panel roll forming machines are built with premium components, strict quality control, and robust engineering design, providing customers with reliable, long-lasting machines and professional after-sales support.
Technical Specifications
Model NO Fence plate forming machine
Condition New
Usage Wall
Feeding Width 119mm
Machine Frame 80 square tube frame
Forming Speed 20-30M/min
Color Customized
Type of Driven Chain drive
Transmission Method Electric
Number of rolling mill sets 12 row molding
Spindle diameter 55 (Solid shaft)
Continuation rack Shake the feeding rack with both hands and press the material roller
Customized Customized
Operating Interface Language Chinese/English/Russian
Specification 5000mm x 1000mm x 1200mm
Origin Cangzhou, Hebei
Warranty 1 year
Production capacity 400 sets/year

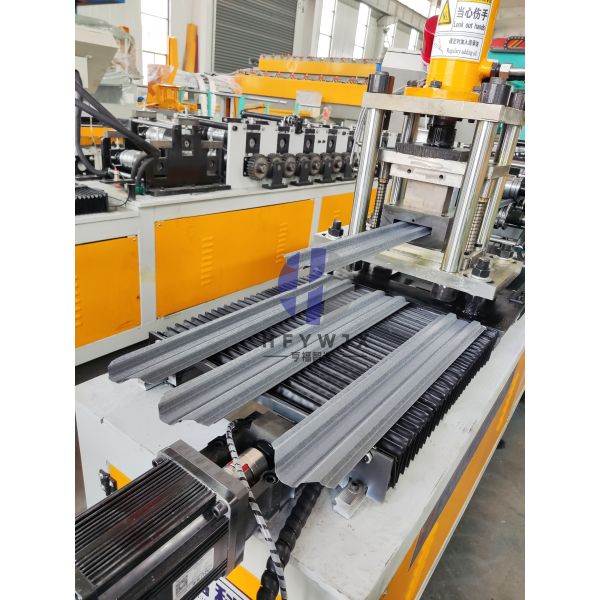

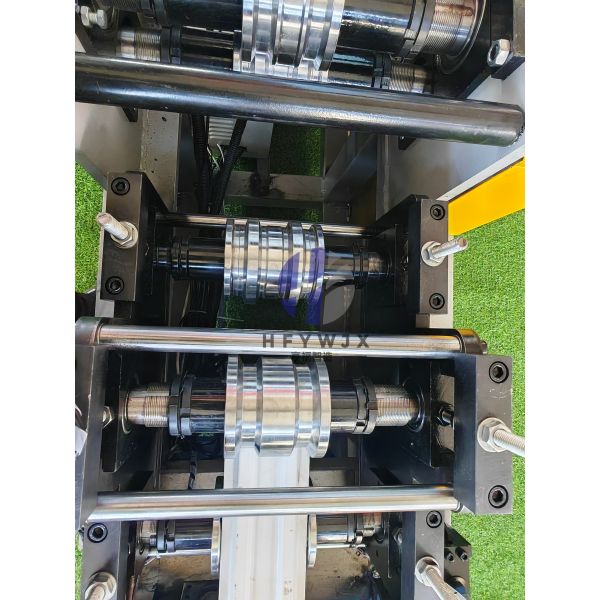

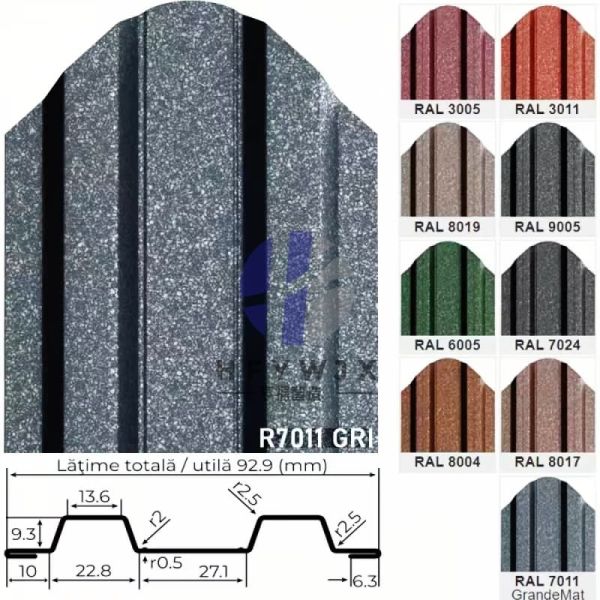

Product Gallery
Fence Panel Roll Forming Machine with 12 Row Molding PLC Electronic Control System Fence Panel Roll Forming Machine with 12 Row Molding PLC Electronic Control System Fence Panel Roll Forming Machine with 12 Row Molding PLC Electronic Control System
Frequently Asked Questions
Can it be integrated into a complete color steel production line?
Yes, it can—forming a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
Can the machine produce curved or irregularly shaped panels?
Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
How long is the warranty period?
The entire machine comes with a 12-month warranty, excluding wear parts.
Does the machine require a foundation?
It simply requires a level concrete floor; no complex foundation is necessary.
