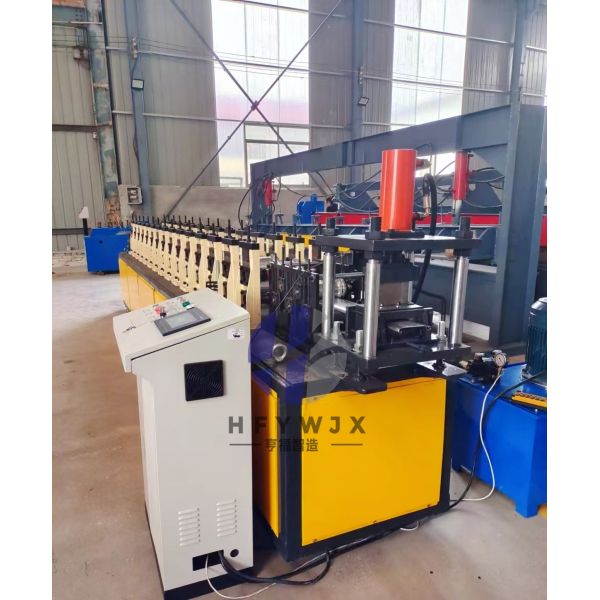

Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw
Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw
Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw
Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw
Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw
Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw
Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw
Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Tile Type :
Galvanized Steel / Color Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roller Shutter Door, Garage Door
Transmission Method :
Gear Transmission
Control System :
PLC
Transport Package :
Plastic Film & Steel Wire Fixed
Hydraulic Pump Power :
4kw
Frame Thickness :
16mm Wall Plate
Description
Rolling Shutter Door Roll Forming Machine Automatic Slat Making Line

The Automatic Roller Shutter Door Production Line is a fully integrated system designed for efficient manufacturing of high-quality shutter slats. It combines decoiling, roll forming, punching, and cutting processes into one continuous operation, ensuring stable performance and consistent product output.

This production line adopts advanced roll forming technology to produce precise and durable shutter slats from galvanized steel or aluminum coils. With optimized roller design and high-strength structure, the finished products feature excellent surface quality, uniform shape, and strong resistance to deformation, meeting international standards for roller shutter doors.

Equipped with a PLC control system and user-friendly touch screen interface, the production line allows operators to easily set parameters such as length, quantity, and speed. The system ensures high automation, accurate cutting, and reliable operation, significantly improving efficiency and minimizing human error during production.

Technical Specifications
Model NO Roller Shutter Door Roll Forming Machine
Condition New
The machine itself 80*80 square tube heavy frame
Number of molding passes 15
Shaft material 45# steel (solid shaft, Φ50mm)
Transmission structure Gear transmission
Frame thickness 16mm wall plate
Hydraulic pump station 4kw (with air cooling)
Cutting section motor 4kw main motor
Production speed 15-16m/min
Control system Industrial PLC + frequency control (Delta brand)
Cutting method Post-forming double-blade shearing
Pull rod 35mm galvanized
Reducer Type 4 cycloidal series
Operation language Chinese, Russian

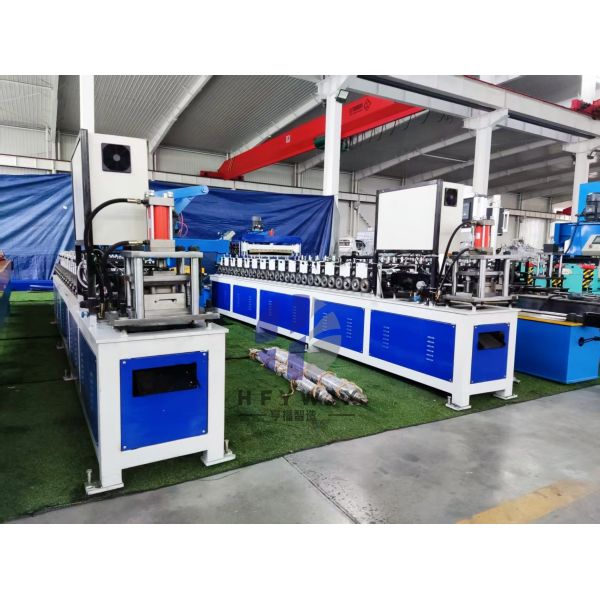

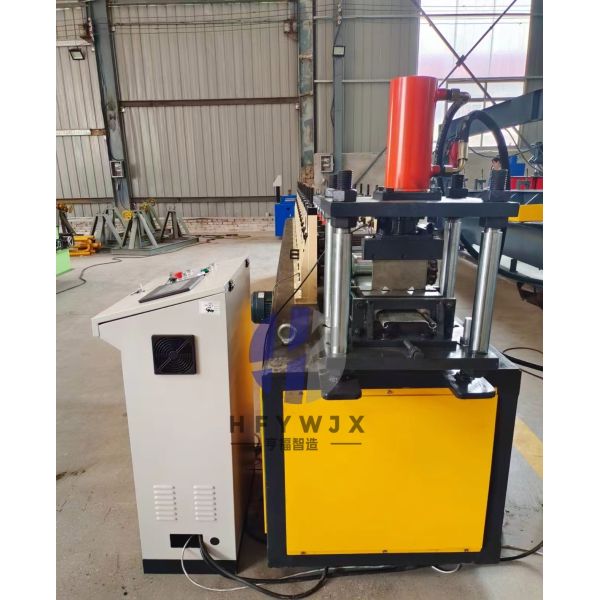

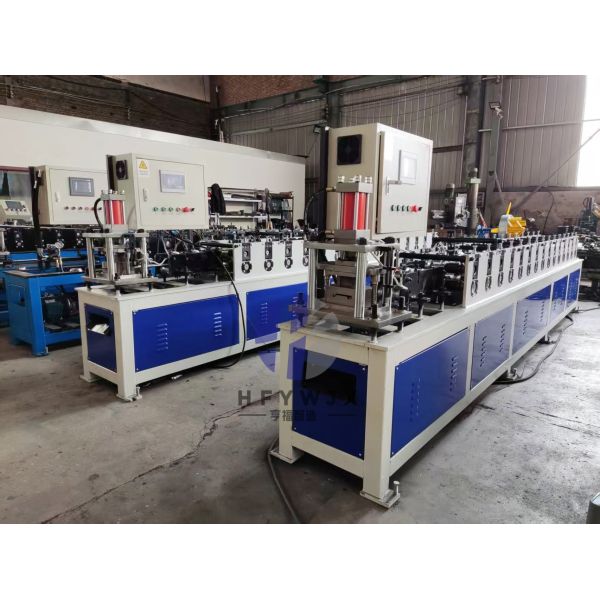

Product Gallery
Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw Automatic Slat Roller Shutter Door Forming Machine Gear Transmission With Hydraulic Pump Power 4kw
Frequently Asked Questions
Q: What are the available cutting methods?
A: Hydraulic Flying Shear or Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Q: Can it be connected to an automatic stacker?
A: Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
Q: Can it be integrated into a complete color steel production line?
A: Yes, it can form a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
Q: Can a laminating machine be added?
A: Yes, it allows for an integrated production line combining lamination and forming.
Q: Can the voltage be customized to meet our country's standards?
A: Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
