Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Q：Do you have customers for your equipment in our country? A:Yes, we have established customers in t :
2.0 tons
Max Strip Width :
400 mm
Uncoiler Inner Diameter :
Φ500 mm
Tension Mode :
Manual tensioning
Main Shaft of Uncoiler :
Φ80 mm
Forming Stands :
55 stations
Roller Material :
Cr12 mould steel, HRC55–58
Roller Shaft :
45# steel, Φ60 mm
Transmission :
Motor + reducer + gearbox
Laser Welder :
3 KW high-end split type
Control System :
PLC + touch screen HMI
Description
Professional Laser Welded Tube Machine Automatic High Frequency Steel Pipe Production Line

Dongguang Hengfu Roll Forming Machine Co., Ltd. specializes in developing and manufacturing high-precision roll forming and laser welding equipment. Our laser welded pipe machine is a fully integrated production solution that combines stable forming, high-quality laser welding, and efficient automatic cutting. It is engineered to deliver consistent performance, reliable operation, and long service life, making it the first choice for manufacturers who pursue high-quality pipe production and stable output.

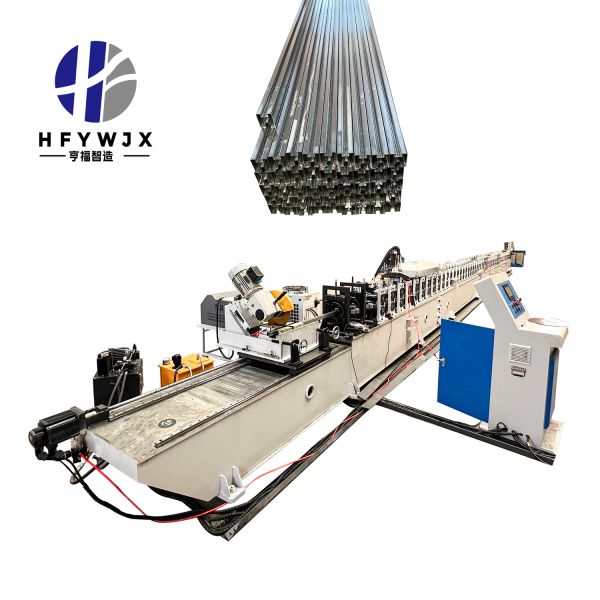

This machine features a complete and optimized process flow: feeding, roll forming, laser welding, straightening, and non-stop cutting. It is specially designed for 0.6mm galvanized steel strip, ensuring smooth material flow, uniform forming, and excellent welding results. The whole process is highly stable, reducing material waste and ensuring every finished pipe has accurate dimensions, smooth surface, and good straightness.

The uncoiler adopts a heavy-duty integrated tension structure with 2.0 tons loading capacity, supporting a maximum width of 400mm and Φ500 coil inner diameter. Manual tensioning provides stable and reliable uncoiling, while the Φ80 solid main shaft ensures strong rigidity and smooth running. This stable feeding system lays a solid foundation for high-precision forming and welding quality.

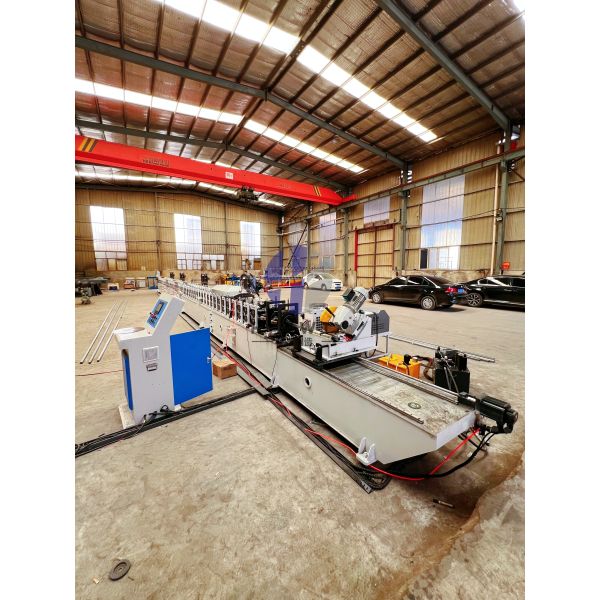

The main forming machine uses a 30mm thick gantry frame processed by CNC milling for excellent precision and rigidity. It is equipped with 55 forming stations, using Cr12 mould steel rollers with hardness HRC55-58 and Φ60 high-strength 45# steel shafts. Four 5.5KW motors drive the gearbox transmission system, with Harbin bearings for stable and durable operation. The production speed is adjustable from 1-15m/min via PLC inverter control.

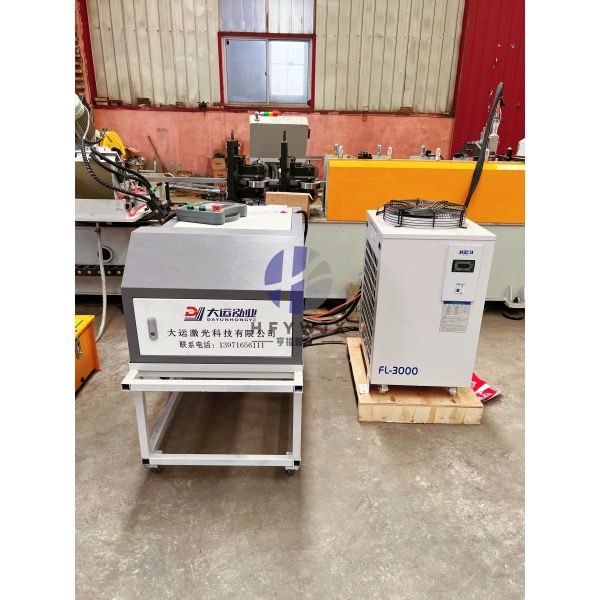

Powered by a 3KW high-configuration laser welding system and a user-friendly PLC touch screen control system, this machine ensures stable welding quality and easy operation. Every part is carefully selected and strictly assembled by Dongguang Hengfu Roll Forming Machine Co., Ltd. to ensure low failure rate, easy maintenance, and long-term stable running. It is a high-efficiency, high-reliability, and cost-effective pipe production equipment.

Technical Specifications
Item Specification
Material Galvanized steel, 0.6 mm thickness
Process Flow Decoiling -> Forming -> Welding -> Straightening -> Non-stop cutting
Uncoiler Manual tension; 2.0 tons load capacity; max width 400 mm; inner diameter Φ500
Forming Stands 55 stations
Roller Material Cr12 mould steel, HRC55-58
Speed 1-15 m/min (PLC inverter adjustable)
Laser Welder 3 KW high configuration
Control System PLC + touch screen
Dimension approx. 25 m × 1.5 m × 1.5 m
Professional 3KW Laser Welded Tube Forming Equipment With 55 Stations And PLC Touch Screen Control Professional 3KW Laser Welded Tube Forming Equipment With 55 Stations And PLC Touch Screen Control Professional 3KW Laser Welded Tube Forming Equipment With 55 Stations And PLC Touch Screen Control
Frequently Asked Questions
Will the machine's precision be compromised during transport?
Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
Can it be integrated into a complete color steel production line?
Yes, it can—forming a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
What is the structure of the machine frame?
It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
