Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Certification :
CE, SGS
Customized :
Customized
Condition :
New
Control Type :
CNC
Automatic Grade :
Automatic
Profile Type :
C Stud / U Track / Custom Profile
Application :
Drywall System / Light Steel Framing / Partition W
Material Type :
Gi / PPGI / Galvanized Steel
Transport Package :
Transport Package
Specification :
1175*1700*1500
Package Size :
117.50cm * 170.00cm * 150.00cm
Package Gross Weight :
13000.000kg
Description
High Speed Production Low Failure 50-75-100 Light Steel Keel Roll Forming Machine

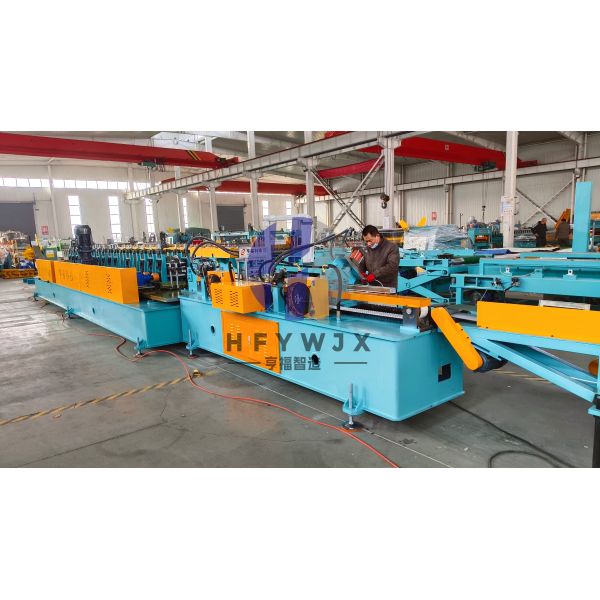

Introducing our brand-new 50-75-100 High Speed Stud and Track Roll Forming Production Line, the ultimate automated solution for drywall metal stud and track production! This top-tier equipment is built for light steel framing and interior construction, taking your workshop efficiency to the next level.

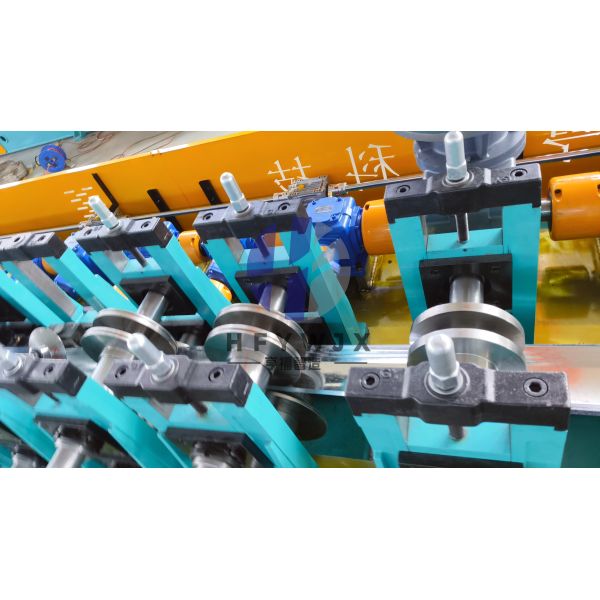

Boasting an integral welded 35mm thick steel plate frame, 16 forming passes, 40CR high-strength shafts and gearbox transmission, the line offers unbeatable structural rigidity and durability. It can easily withstand long-term heavy-duty production, ensuring reliable performance year after year.

Equipped with an 11kw hydraulic pump station and 2.3kw cutting motor, the line runs smoothly at an adjustable speed of 0-60m/min, drastically cutting production time and labor costs for your business, while guaranteeing precise dimensions and smooth surface quality.

Technical Specifications
Model NO 50-75-100 Light Steel Keel Roll Forming Machine
Condition New
The machine itself Integral welding of steel plates
Number of molding passes 16
Shaft material 40CR
Transmission structure Gearbox transmission
Frame thickness 35mm
Hydraulic pump station 11kw
Cutting section motor 2.3kw
Production speed 0-60m/min
Control system PLC
Product Gallery
60m/Min Light Steel Keel Roll Forming Machine CNC Control Automatic Stacking 60m/Min Light Steel Keel Roll Forming Machine CNC Control Automatic Stacking 60m/Min Light Steel Keel Roll Forming Machine CNC Control Automatic Stacking 60m/Min Light Steel Keel Roll Forming Machine CNC Control Automatic Stacking 60m/Min Light Steel Keel Roll Forming Machine CNC Control Automatic Stacking
Frequently Asked Questions
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
What is the difference between your machines and cheaper alternatives?
  • The machine frame is thicker and will not deform even after prolonged use
  • The rollers feature high precision, ensuring a standard and consistent panel profile
  • The cutting system is stable, guaranteeing precise length accuracy
  • It boasts a low failure rate and low maintenance costs
  • It offers a significantly longer service life
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you provide semi-automatic or fully automatic receiving tables?

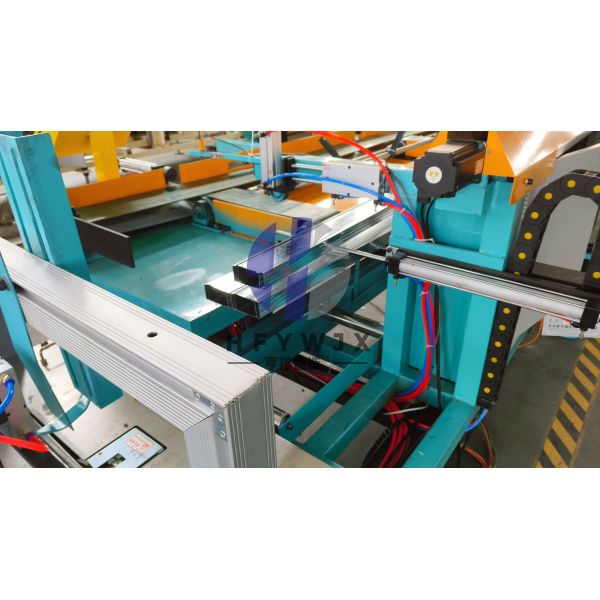

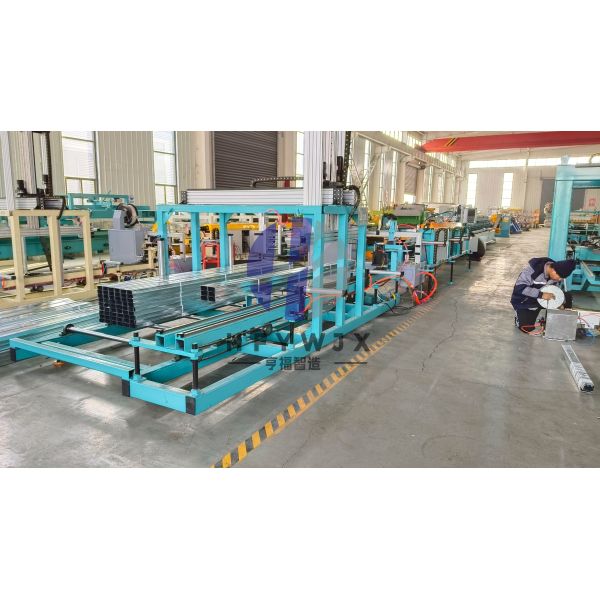

Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
