Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Specifications
Brand Name :
HENGFU
Model Number :
DownSpout Making Machine
Place of Origin :
CHINA
MOQ :
1 Piece
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Delivery Time :
45Days
Packaging Details :
Plastic Film & Steel Wire Fixed
Tile Type :
Colored Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof, Wall, Floor
Transmission Method :
Hydraulic Pressure
Transmission Mode :
Gearbox Transmission
Cutting Method :
Hydraulic Shearing
Package Size :
900.00cm * 60.00cm * 150.00cm
Package Gross Weight :
5000.000kg
Description
DownSpout Making Machine
Technical Specifications
Model NO Gutter Downpipe Spout Roll Forming Machine
Customized Customized
Transmission Method Hydraulic Pressure
Material Thickness 0.3-0.8 mm or Customized
Shaft Diameter Φ60mm (Solid shaft)
Main Motor Power 5.5kw
Control System PLC Control
Forming Roller 16row
Raw Material Color Steel Sheet, Stainless Steel or Galvanized
Forming Roller Material 45#
Origin Cangzhou, Hebei
Production Capacity 30 Sets/Month
Usage Roof, Wall
Machine Features
As a professional Chinese manufacturer, our gutter roll forming machine features a heavy-duty box frame with 25mm thick plates and 16 forming stations. Its 45# steel rollers are chrome-plated for durability, paired with a 5.5kW motor for a production speed of 20-25m/min. The 4000W hydraulic three-blade shear ensures burr-free cutting, while the Wuxi Xinjie PLC system guarantees ≤1mm length accuracy. With galvanized tie rods and dual-hand feeding, this CE certified machine is reliable, low-maintenance, and customizable for your gutter production needs.

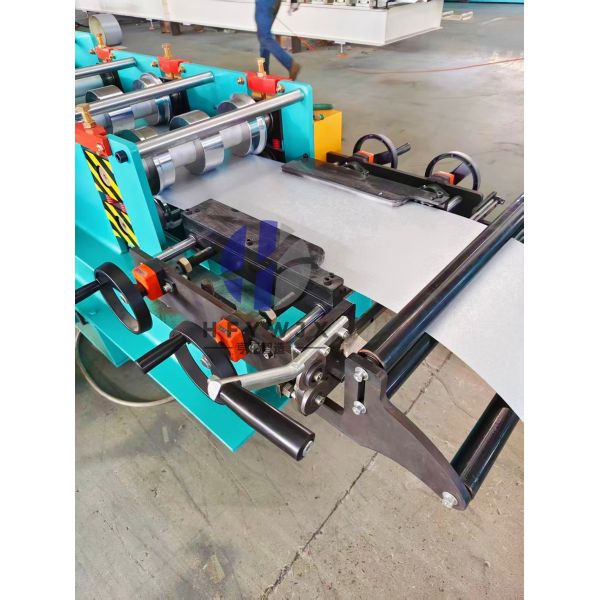

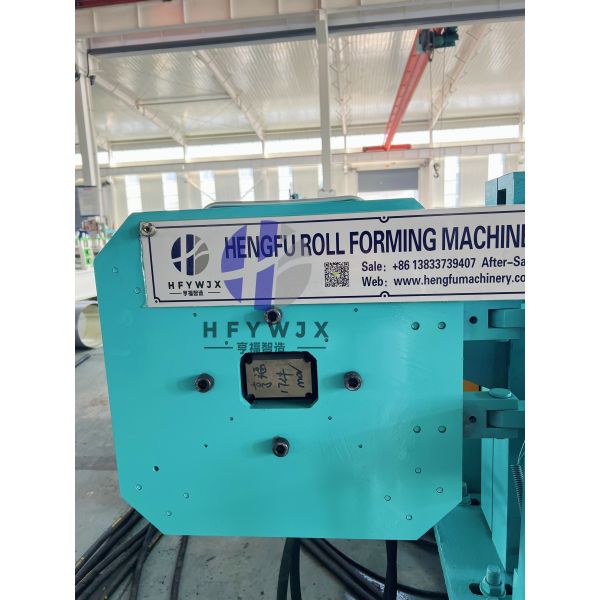

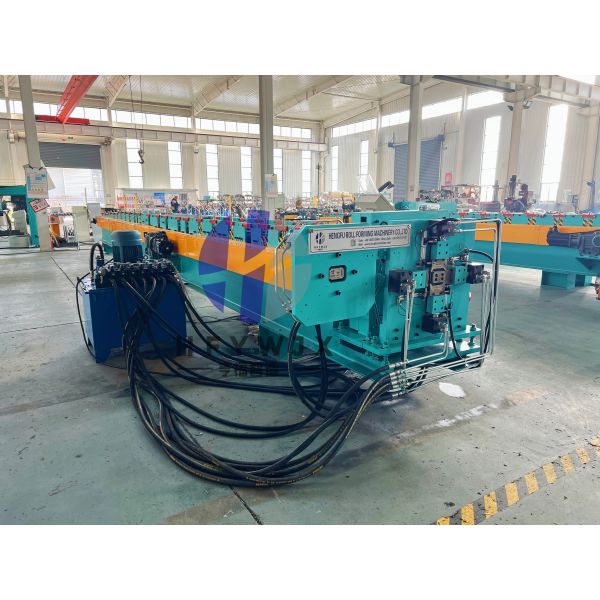

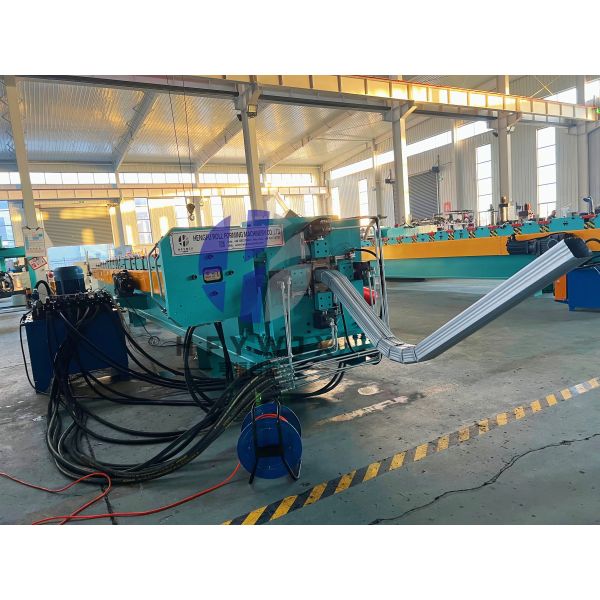

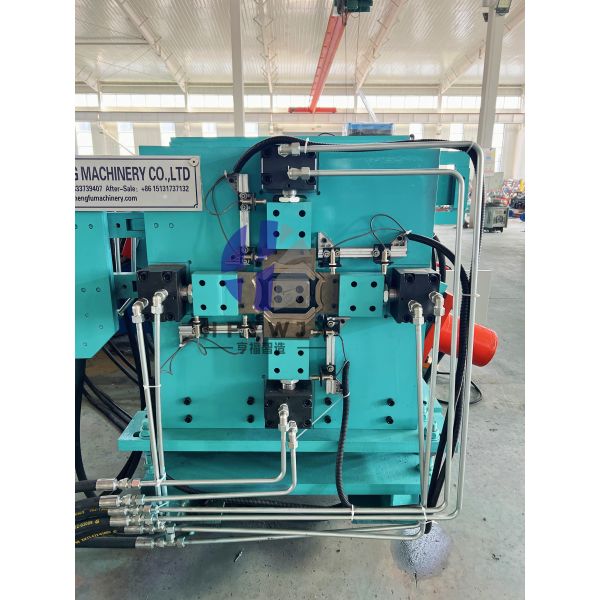

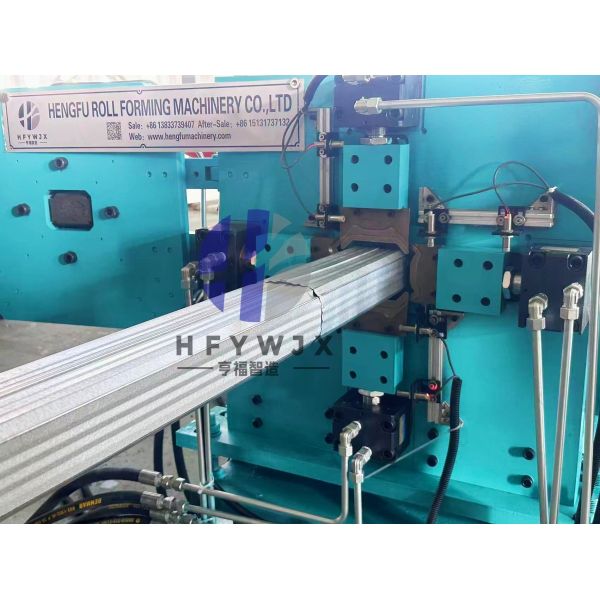

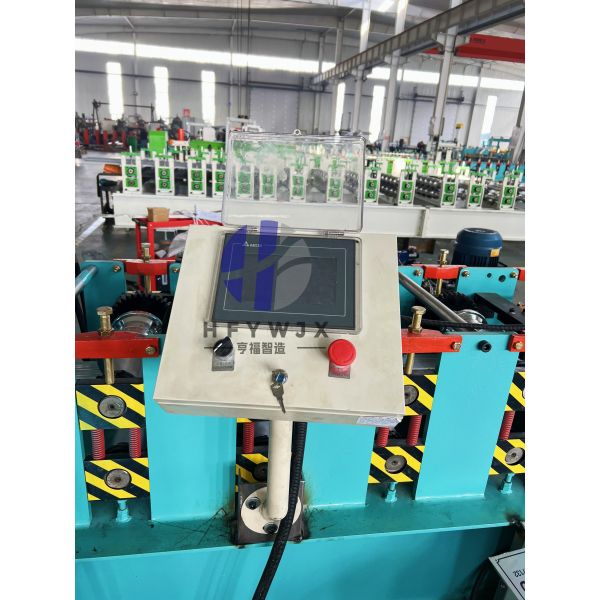

Product Images
Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall Hydraulic Pressure DownSpout Making Machine with PLC Control and 16 Forming Stations for Roof and Wall
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
Q: What's the delivery time?
A: Normally it takes about 45 days.
Q: What service can you provide before order?
A: We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Q: Can you finish the machine during the delivery time?
A: We will complete production on time according to the confirmed lead time.
Q: Do you have after-sale support?
A: Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Q: Any other service?
A: We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
