Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Machine Name :
1.3m Stainless Steel Leveling Machine
Material :
Stainless Steel (1–2mm, standard 2mm)
Feeding Width :
1300mm
Effective Width :
1250mm
Forming Passes :
7 upper, 6 lower
Main Shaft :
90mm solid shaft
Motor Power :
7.5KW
Working Speed :
15–25m/min
Cutting Type :
Electric shearing, burr-free, remote control
Control System :
PLC touch screen
Voltage :
380V 50Hz 3-phase
Description
Premium 1.3M Stainless Steel Leveling Machine

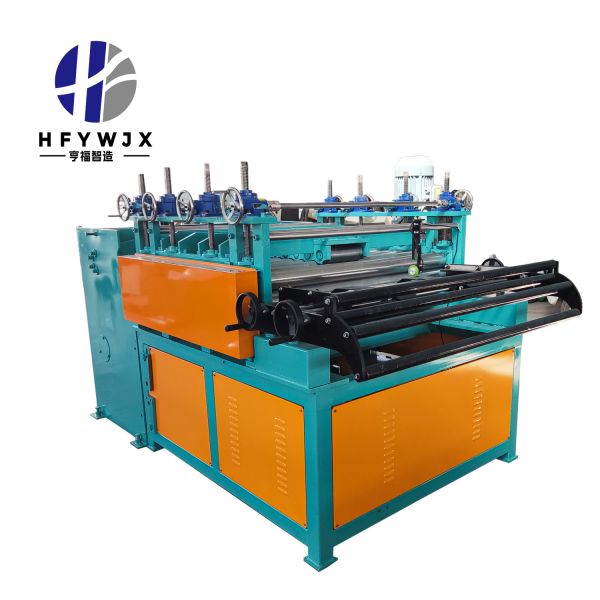

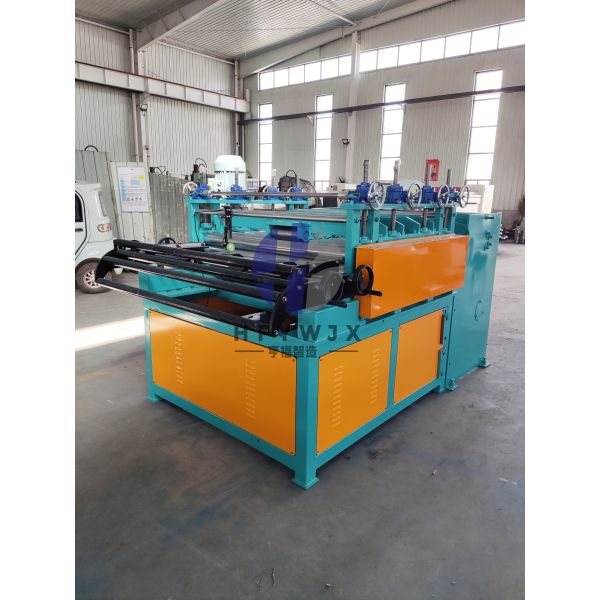

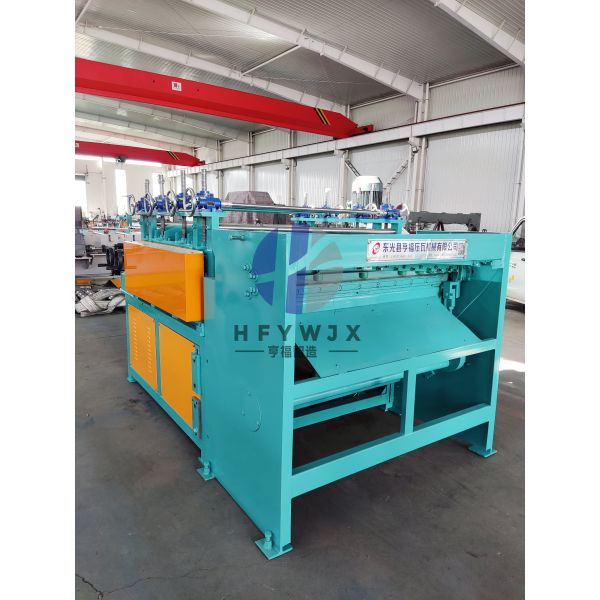

The 1.3m Stainless Steel Leveling Machine manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd. is a high-efficiency integrated production line designed for leveling and cutting stainless steel sheets. It integrates uncoiling, feeding, roll forming, fixed-length cutting and finished sheet output, providing a complete and stable solution for modern metal processing factories.

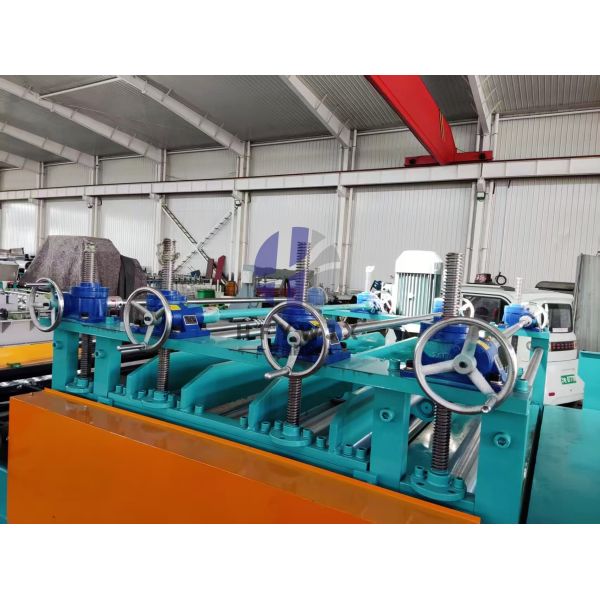

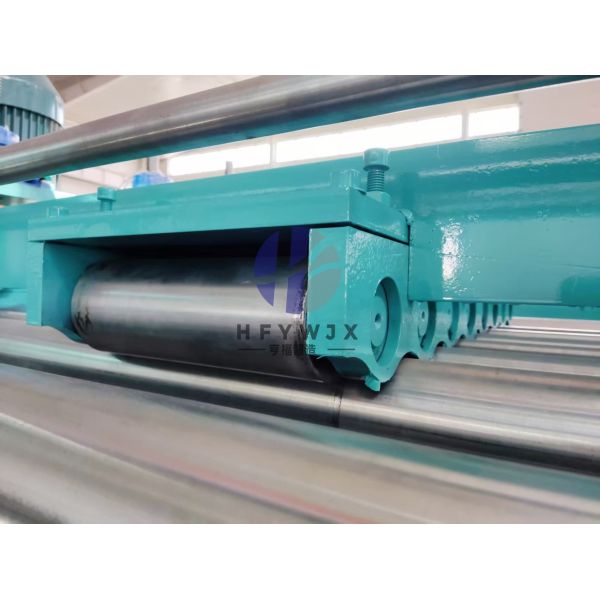

This machine adopts a heavy-duty and durable structure to ensure stable operation under long-term working conditions. The solid frame, thickened wall panels, 90mm solid main shafts and high-strength chrome-plated rollers work together to provide strong rigidity and low vibration. The 7-upper and 6-lower roller design with full pressing function ensures uniform stress on the sheet surface, achieving perfect leveling effect without deformation or scratches.
It is specially designed for stainless steel sheets with a thickness range of 1-2mm, feeding width of 1300mm and effective forming width of 1250mm, which can meet most industrial production requirements. Equipped with a 7.5KW high-performance motor and gear transmission, the machine runs stably with a speed of 15-25m/min, greatly improving production efficiency while ensuring consistent product quality.
The intelligent control system adopts PLC and touch screen for easy operation and accurate parameter setting. Combined with a high-precision rotary counter, the length error can be controlled within ±1mm. The electric shearing system with Cr12 blades provides clean and burr-free cutting, with low noise and extremely low maintenance rate. Remote control is also available for safer and more flexible operation.
Technical Specifications
Machine Model 1.3m Stainless Steel Leveling Machine
Applicable Material Stainless Steel
Material Thickness 1-2mm (Standard: 2mm)
Feeding Width 1300mm
Effective Forming Width 1250mm
Forming Passes 7 upper, 6 lower
Main Shaft Φ90mm solid shaft
Roller Material 45Cr, quenched, tempered, chrome-plated
Motor Power 7.5KW
Working Speed 15-25m/min
Cutting System Electric shearing, burr-free, remote control
Blade Material Cr12
Control System PLC + touch screen
Length Accuracy ±1mm
Voltage Three-phase 380V 50Hz
1.3M Stainless Steel Leveling Machine PLC Touch Screen Control for Industrial Sheet Metal Straightening 1.3M Stainless Steel Leveling Machine PLC Touch Screen Control for Industrial Sheet Metal Straightening 1.3M Stainless Steel Leveling Machine PLC Touch Screen Control for Industrial Sheet Metal Straightening
Frequently Asked Questions
Can a single machine produce multiple types of profiles?
Standard models are typically designed to produce one specific profile type per machine. However, customizable models—such as those with interchangeable rollers, double-layer machines, or triple-layer machines—can be configured to enable a single machine to serve multiple purposes.
Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?
Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
Is the electrical system susceptible to moisture damage?
The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
Will the machine's precision be compromised during transport?
Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
