YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker
YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker
YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker
YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker
YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker
YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker
YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker
YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker
YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker
YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker
Specifications
Brand Name :
NKH MACHINERY
Model Number :
YX22-143.5-1004.5
Certification :
CE/SONCAP/CSA/ISO
Place of Origin :
China
MOQ :
1 SET
Price :
negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
10 sets/month
Delivery Time :
90 WORKING DAYS
Packaging Details :
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Material :
PPGI,GI
Roller Material :
45# steel or Based On Design
Max. Forming Speed :
50-60m/min
Stacker :
8 meters long//Based on design
Description

YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker

High speed roof roll forming machine, roofing sheet making machine

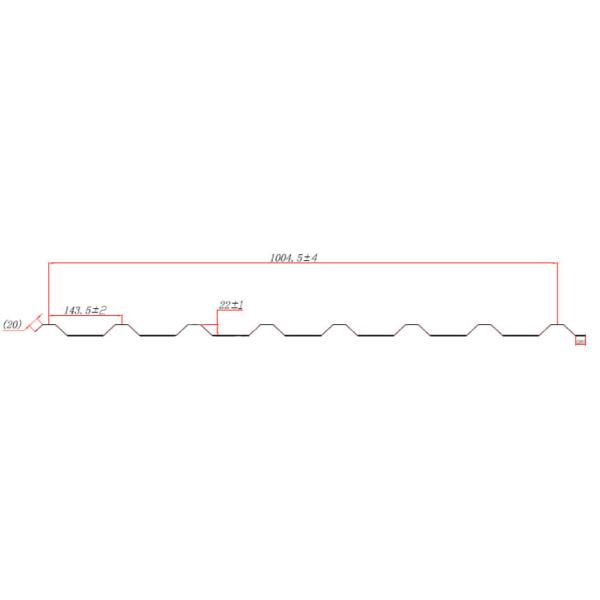

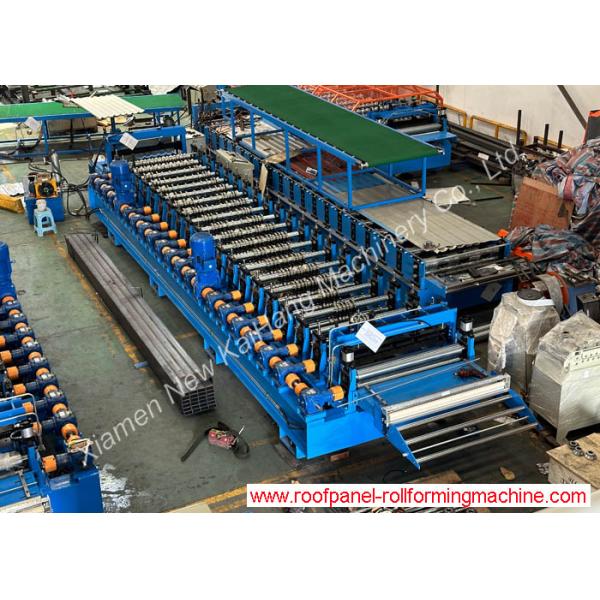

Profile Drawing/Layout/Equipment reference pictures:

YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker

Quick Detail:

  1. Thickness : 0.3-0.7mm
  2. Material : G350-550MPa, pre-painted sheets
  3. Input width : 1220mm
  4. Effective width: 1008mm

Machine list:

  1. 10Tons*1250mm Hydraulic un-coiler with coil car

  2. Roll forming machine
  3. Hydraulic flying cutting device
  4. 8 Meters Pneumatic Stacker
  5. PLC control system

YX22-143.5-1004.5 Roof Panel Roll Forming Machine with Stacker
