2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine
2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine
2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine
2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine
2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine
2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine
2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine
2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine
Specifications
Brand Name :
NKH MACHINERY
Model Number :
C80-250
Certification :
CE/SONCAP/CSA
Place of Origin :
CHINA
MOQ :
01 UNIT
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
05 UNITS/MONTH
Delivery Time :
40 WORKING DAYS
Packaging Details :
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
name :
purlin roll former
Raw material :
GI sheets, G350
Shaft Diameter :
75mm
Cutting blade material :
Cr12, heat treatment
Coil Weight :
3T or as request
Voltage :
220V/60Hz/3Ph
Description

Full Automatic 2.5mm C80-250 Channel Purlin Roll Forming Machine by spacers

Quick Detail:

  1. Thickness : 1.5mm-2.5mm
  2. Material : Galvanized sheets
  3. Material weight : 3Mt
  4. Coil inner diameter : 508mm
  5. Driven way: by 15kw driven motor
  6. Cutting way: by hydraulic power pack, post punch, post cut
  7. Cutting tolerance : ±1mm

Application:

It is used to colume as C80,C125, C250

  1. Hydraulic De-coiler or Manual Un-coiler rack
  2. Roll forming machine
  3. Hydraulic Post-punch & Post- cut device
  4. Run out table
  5. PLC control systems

Description/Technical Parameter details of complete line:

  • 3TX600mm Hydraulic Un-coiler

You can adopt to :

Manual de-coiler

Driven de-coiler

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 1.5-2.5mm
Carriage Frame design wall-plate-frame-type
Rolling mills forming stages 15 stages
Material of forming roller Cr12, heat treatment
Shafts Diameter Φ75mm
Main motor power 15Kw
Production speed 18m/min (without punch time)
Hydraulic group power 11Kw
Material of cutting blade Cr12, heat treatment
Electric Voltage Standard 220V/60Hz/3Ph or as request
Major Color of Machine Painted RAL 5012(Sky Blue) or as request
  • PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Control voltage 24V

  • Product Rack 4 meter long ,rolled type

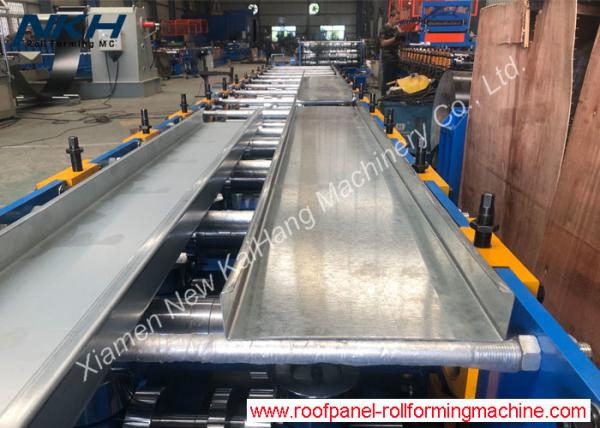

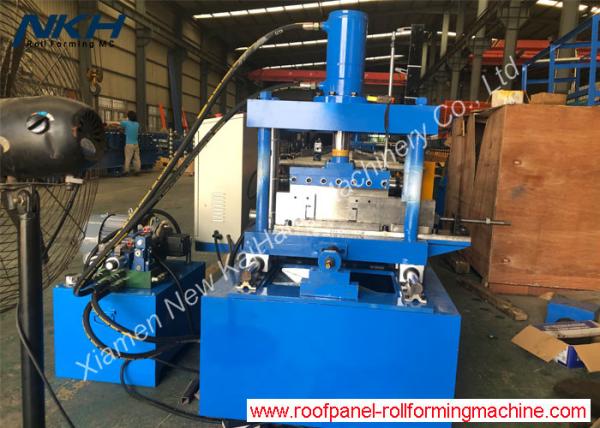

Profile Drawing/Layout/Equipment reference pictures:

2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine
