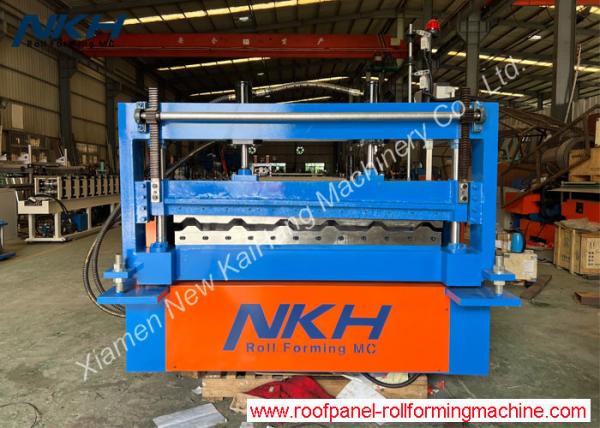

Roof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheets
Roof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheets
Roof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheets
Roof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheets
Roof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheets
Roof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheets
Roof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheets
Roof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheets
Specifications
Brand Name :
NKH ROLL FORMING MC
Model Number :
YX23-210-1050
Place of Origin :
China
MOQ :
1
Price :
USD17000-20000/SET
Supply Ability :
10 sets per month
Delivery Time :
45 working days
Packaging Details :
nude cargoes for roll former, wooden box for control system, one machine/40 ft
Certification :
Soncap certificate
Material :
PPGL sheets
Thickness :
0.4mm-0.8mm
Stages :
20 stages to form
Shaft :
75mm
Driven Motor :
7.5Kw
After-sales service provided :
Engineers available to service machinery overseas,Online support
Condition :
New
Tile type :
roll forming machine/building material machinery
Warranty :
1 Year
Control system :
PLC with touch screen
Roller material :
45# steel
Product name :
metal iron roof sheet roll forming machine
Description

Roof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheets

Roof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheets

Technical Parameters

  • 5TX1250mm Hydraulic Un-Coiler with coil car

Please refer to the un-coiler items for details

  • Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control, to cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

  • The general roll former parameter as below
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 0.4mm-0.80mm
Strip width Approx.1250mm
Frame design Wall-plate-frame-design /New-stand-frame-design
Roll stages 20 stages
Material of forming roller

45# steel, CNC lathes, Hard Chrome Coated

Option : with roller heat treatment
Shafts Diameter Φ75mm
Main motor power 7.5Kw with reducer
Max. Line speed of roll former 15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power 4.0 Kw
Material of cutting blade Cr12, hear treatment
Electric Standard 380V/50Hz/3PH or as the customer's requirements
Major Color of Machine Painted RAL 5015(Blue) or as per customer’s requirements

  • PLC Control System
  • Product Rack
  • Packing

Roof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheetsRoof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheetsRoof panel roll forming machine, trapezoid, roofing profile, 0.4-0.8mm metal sheets
