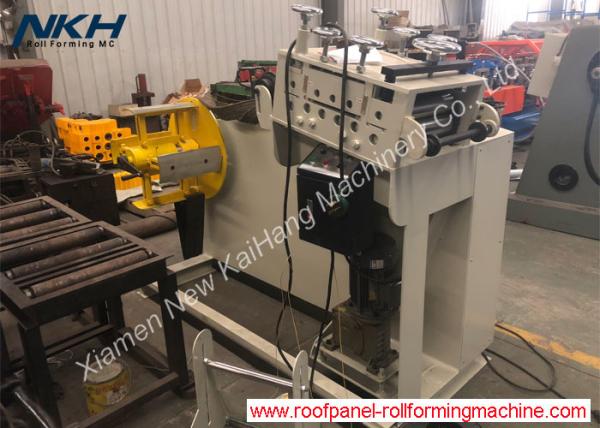

1.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling
1.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling
1.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling
1.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling
Specifications
Brand Name :
NKH MACHINERY
Model Number :
1.5T*300MM
Certification :
CE/SONCAP/CSA
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 UNITS/MONTH
Delivery Time :
10 WORKING DAYS
Packaging Details :
NUDE CARGOES WITH ROLL FORMER IN 20FT/40FT CONTAINER
Condition :
New
Use :
Roof/wall
Production capacity :
12-15m/min
Color :
Client's Request
Warranty :
12months
Tile type :
work with roll forming machine/building material machinery
Description

Trim and flashing driven un-coiler rack with leveling, 2 in 1 de-coiler for roof panel roll forming machine

Application:

Driven de-coiler with straightening or leveling is working with the presser and roll former for profile with high precision and large quantity holes with fast speed for efficient production

Quick Detail:

  1. Thickness : 0.4mm-0.8mm, 0.8-1.2mm
  2. Material : GI,PPGI
  3. Input width : < 300mm
  4. Material weight : 2MT
  5. Rotation way: by driven motor
  6. Coil inner diameter : 470-510mm

Description/Technical Parameter details of the de-coiler

Coil inner hole expand by manual, four palms

Motorized driving coil rotation, auto stop/start control

Load capacity=2Ton

Coil Inner – diameter: 450-530mm

Coil outer-diameter=Max.1200 mm

Coiler Width=Max. 300 mm

Pre-straighten device share in the same driving motor of un-coiler

7 shafts for straightening the sheet

Solid shaft, made from GCr15, hart chrome-coated

Features:

The de-coiler is touch the roll former speed by limit switch

To start/stop automatically

Suit with 15-18 mpm roll former

Profile Drawing/Layout/Equipment reference pictures:

1.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling1.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling1.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling
