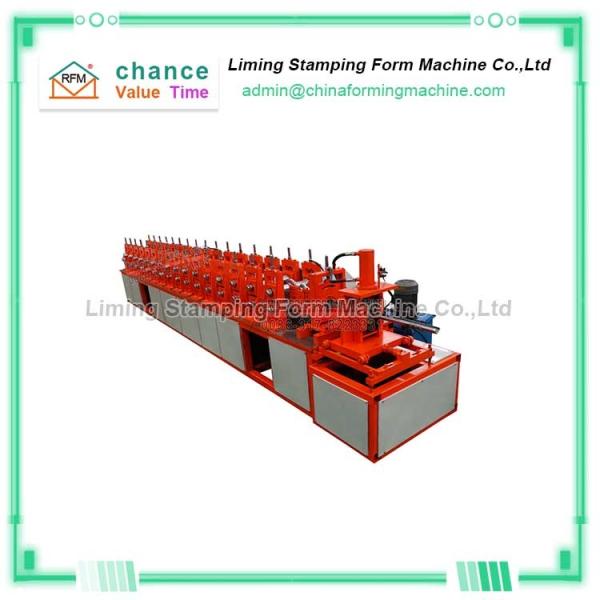

Grape Truss Column 45kw 30m/Min Rack Roll Forming Machine
Grape Truss Column 45kw 30m/Min Rack Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-rack10
Certification :
SGS、BV、ISO、CE
Place of Origin :
Botou Hebei China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
50set/Year
Delivery Time :
35 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Type :
Punching Machine
Hydraulic oil: :
46# oil
Power: :
45kw
Tile Type: :
Construction
Dimension(L*W*H): :
5*1.5*1.2m
Production Capacity: :
10-30m/min
Warranty :
12month
Gear oil: :
18 # hyperbolic gear oil
Voltage: :
380v
thickness: :
0.8 to 1.5mm
Description

Corrosion resistance, good linearity, grape truss column forming machine

Grape racks are the most commonly used tools in agricultural greenhouses. Grape column is often used as an important tool for grape planting due to its advantages of easy installation, corrosion resistance and long service life. So very popular

The base frame of the grape frame column forming machine developed by Liming has a large CNC gantry milling machine milling plane and CNC automatic drilling and milling keyway to ensure the accuracy of the forming machine. The equipment of our company adopts one-piece casting mid-plate structure, which is easy to assemble and debug, and the benchmark accuracy is always consistent.

The grape truss column forming machine uses Siemens motors and one-inch chains as the transmission mode. The international brand Siemens motor has strong power; one-inch chain has small inertia, high precision, low noise and long life.

The grape truss column forming machine also adopts die cutting, so that the product section is clean and free of burrs. At the same time, the 50L hydraulic pump station device configured for die-cutting uses multiple metal filters inside to ensure that the hydraulic oil inside the hydraulic pump station will not have a magazine, so that the die-cutting life will be longer.
Main Parameters Of Corrosion resistance, good linearity, grape truss column forming machine

NO. Item Description
1 Product' sizes According to customer's request
2 Processing material GI
3 Processing thickness 1.0-2.0mm
4 Main motor power 22kw
5 Power of hydraulic station 7.5kw
6 Quantity of roller stations 22
7 Production speed Approximate 15-25 m/min
8 Diameter of shafts Φ90mm
9 Material of rollers Cr12 steel with vacuum heat treatment HRC57°-60°
10 Material of shafts 45# steel quenched and tempered
11 Material of cutting blades Cr12 mould steel with quenched treatment
12 Size of machine Approximate 7500mm(L)×1200mm(W)×1300mm(H)
13 Theoretical weight Approximate 7000KGS
14 Driven method Gearbox drive
15 Brand of PLC Delta
16 Cut mode flying cutting
17 Power supply 380V 50HZ 3Phases or at buyer's requirement
