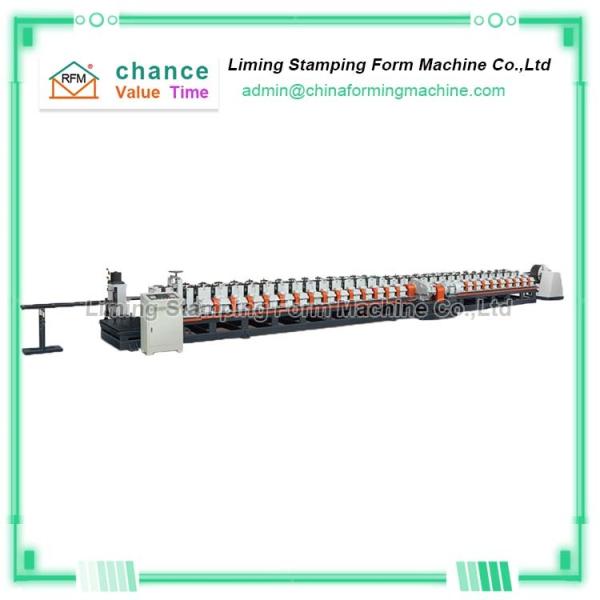

Customization Precise Size Ppgi 0.3mm Steel Roll Forming Machine
Customization Precise Size Ppgi 0.3mm Steel Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-Door 8
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
450set/Year
Delivery Time :
15 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Marketing Type: :
New Product 2021
Rolling thinckness: :
0.3-3mm
Product name: :
Door Frame Machine
Warranty :
2 years
Certification: :
CE BV STV ISO
Voltage :
380v 50Hz
Weight: :
8T
Raw material: :
PPGI PPGL GI GL
Description

Factory customization, precise size, door frame forming machine

The door frame is an important component used to install and support the security door, and it is also the place to ensure the beauty of the security door installation. There are many patterns, sizes and specifications of the security door frame. We need to customize the production according to the size you provide. If you do not have the size of the anti-theft door frame, we can also provide you with the hot-selling version of the anti-theft door frame in your country for your choice.

Components Details
Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate 16mm. We use thicker plates to ensure stability
of our products.
Forming Steps 15, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.
Treating process: tempering- finish turning,
high rigidity, hard to deform.
Cutting Cr12, hardness HRC60-62.
Blade Material Treating process: heat treatment- plane abrasion- wire electrode cutting.
Electric Components
Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP 14ES
well-adapted to various conditions, such as moisture,
electromagnetic disturbance.
Frequency Converter Delta VFD-M. It has the advantage of slowing down before cutting,
to ensure the length accuracy (±1mm,
far better than industrial standard ±3mm).
Length Omron, made in Japan.
Measurement Device It features with high accuracy and stability.

The door frame forming machines we produce all adopt an integrated casting middle plate, so that the door frame forming machine has sufficient compressive capacity, so as to ensure the stability of the door frame forming machine.

The door frame forming machine is also equipped with rollers made of Gr12 to ensure the toughness and lightness of the rollers, so that the door frame forming machine will not have the problem of scratches or damage to the rollers when producing thicker door frame profiles, thus greatly improving Improve the work efficiency of the door frame forming machine.

At the same time, the three-piece cutting blade used by the door frame forming machine is made of Gr12MOV material, so that the cut door frame profile will not be deformed, and the cutting section is tidy, which can bring you good economic benefits.
