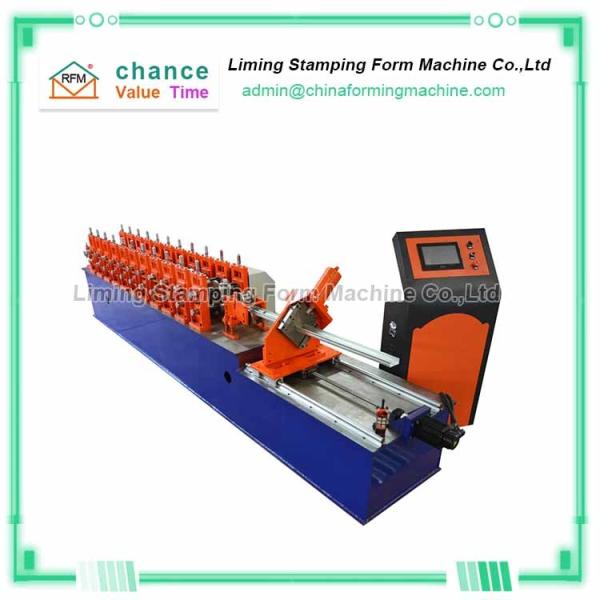

50mm Shaft C Type Keel Roll Forming Machine For Decoration
50mm Shaft C Type Keel Roll Forming Machine For Decoration
Specifications
Brand Name :
LIMING
Model Number :
LM-purlin 1
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
35 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Applicable Industries: :
Building Material Shops, Farms, Construction works
Voltage: :
380V 50HZ
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Warranty of core components: :
2 years
Shaft material: :
High grade 45# forged steel
Weight: :
3.5 tons
Shaft Diameter: :
50mm
Description

C-type keel roll forming machine for decoration

C-shaped keel roll forming machine for decoration is equipment used to produce c-shaped keel.

Because the C-shaped keel has the advantages of easy installation, corrosion resistance and good load-bearing capacity, it is widely used in hotels, terminal buildings, passenger stations, stations, theaters, shopping malls, factories, office buildings, old buildings, renovations, interior decoration settings, ceilings And other places.

The C-type keel forming machine is composed of an uncoiler, a feeding device, a roll forming unit, a hydraulic die cutting device, and a receiving device. The whole machine is controlled by a plc system, and the operation is simple, which can help you save labor costs.

The C-type keel forming machine uses Omron encoders to automatically measure the length, so that the products produced are accurate in size and consistent in length, so as to achieve the purpose of direct installation and sales.

The C-type keel forming machine is also equipped with a servo shearing device, which keeps the shearing device at the same speed as the product, and the cut section is clean and free of burrs, which helps you greatly improve your work efficiency.

At the same time, we also designed and installed a protective device for the C-shaped keel forming machine to ensure that you can safely and quickly produce and avoid personnel and equipment damage.

Technical parameters of C-type keel roll forming machine for decoration

Material Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet 0.3-0.8 mm
Roller material High grade 45# forged steel, surface hard chromium plating
Shaft material High grade 45# forged steel
Cutting blade Cr12 mould steel with quenched treatment
Diameter of shaft 50mm or as your requirement
Main frame 300 H steel
Forming steps 14 stations
Productivity 10-15m/min
Hydraulic station power 5.5 KW
Hydraulic pressure 10-12MPa
Appearance size 6.5*1.5*1.5 m
Hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating
