Double Layer Roofing Sheet Roll Forming Machine
Double Layer Roofing Sheet Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-DL1
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
300set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Control system :
PLC(Touch Screen)
Forming speed :
12~25m/min
Weight :
4.8T
Oil paint :
National standard Orange or as your request
Color :
Customers Requirement
Power(w) :
7.5KW/5.5KW
Name :
Metal Step Tiles Roofing Sheets Roll Forming Machine
Use :
Roof/wall
Dimension(l*w*h) :
6500*1300*1100
Warranty :
24 months
Description

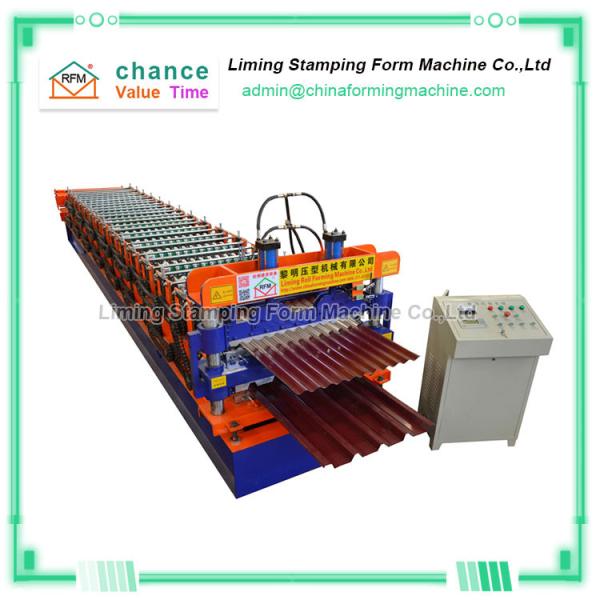

Double Layer Roofing Sheet Roll Forming Machine

All the customers want used the less cost but can get the more profit, In other words spend less money and space but can do more different profiles of the roof sheet, For fit this requirement, We manufactured the Double Layer Roofing Sheet roll forming Machine .

This Double Layer Roofing Sheet roll forming Machine is an advanced metal roll former, which is manufacturing corrugated coloured steel or aluminum roofing tile sheets with a high corrugation speed. This roof tile profiles roll forming machine consists of decoiler, sheet guiding equipment, rollforming system, cutter, support table, hydraulic system, and control system.

Application areas of Double Layer Roofing Sheet roll forming Machine

Roofing Manufacturing

Construction Industry

Channels Making

Technical parameters of Double Layer Roofing Sheet Roll Forming Machine

NO. Type Specification
1 Raw material Type PPGI
Feeding width 1250 mm
Thickness 0.3-0..8 mm
2 Decoiler Operation Manual
Weight apacity 5 Tons
3 Main body Roller station 13 row
Diameter of shaft 75 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Type Chinese type
Frame 300mm C-beam
Frame thickness 16 mm
Material Cr 12
Operation Hydraulic automatic
Working speed 8-12 m/min
4 Power Driving way Chain 1 inch
Main motor 5.5 KW
Voltage 380V/50HZ, 3 phase
5 Control box Electric box PLC control system, inventer
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan
Language Chinese and English


Double Layer Roofing Sheet Roll Forming Machine
