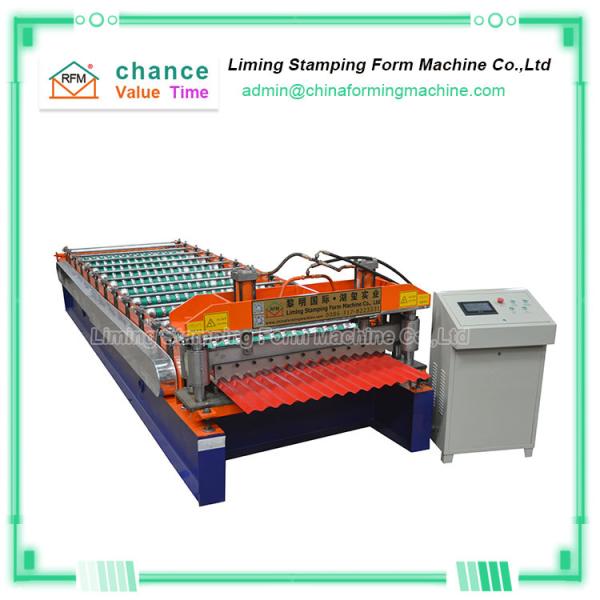

Tanzania Corrugated Metal Roofing Sheet Roll Forming Machine
Tanzania Corrugated Metal Roofing Sheet Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-CT9
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
300set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
ondition :
New
Material :
PPGI,GI,AI
Coil Width :
914, 1000, 1220 or 1250 mm
Total Weight :
4.5ton
Use :
Roof and wall
Total Powder :
8.5kw
Thickness :
0.3-0.8mm
Warranty :
2 Years
Yield strength :
Q235
PLC :
Delta
Description

Tanzania Corrugated Metal Roofing Sheet Roll Forming Machine

Since this process was first developed in 1840, corrugated metal roofs have been used.

Therefore, Tanzania's corrugated metal roofing sheet roll forming machine has a long history.

The material appearance and manufacturing method of the corrugated metal roof produced by the Tanzania corrugated metal roofing sheet roll forming machine are the easiest to distinguish. Traditionally, materials are cold rolled after casting to form periodic wrinkles in the metal. This is not the case for appearance cold rolling. Cold rolling can significantly increase the strength of the material and enhance its physical and mechanical durability. Reinforce the material only in the direction parallel to the corrugations. Therefore, it is very necessary to choose high-quality Tanzania corrugated metal roofing sheet roll forming machine.

Technical parameters of Tanzania Corrugated Metal Roofing Sheet Roll Forming Machine

Name Tanzania Corrugated Metal Roofing Sheet Roll Forming Machine
Suitable Material Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range 0.3-0.8 mm
Coil Width Range 914, 1000, 1220 or 1250 mm.
According to your actual drawing.
Electric Power 380V, 50 Hz, 3 phase
or according to your need.
Dimension About 7.2*1.3*1.1m(L*W*H), as per the drawing
Cutting Automatically stop and cutting when it comes to the set length.
Length of the Sheet You can set the length according to your need.
It is controlled by PLC
length accuracy: ±1mm

Tanzania Corrugated Metal Roofing Sheet Roll Forming Machine
