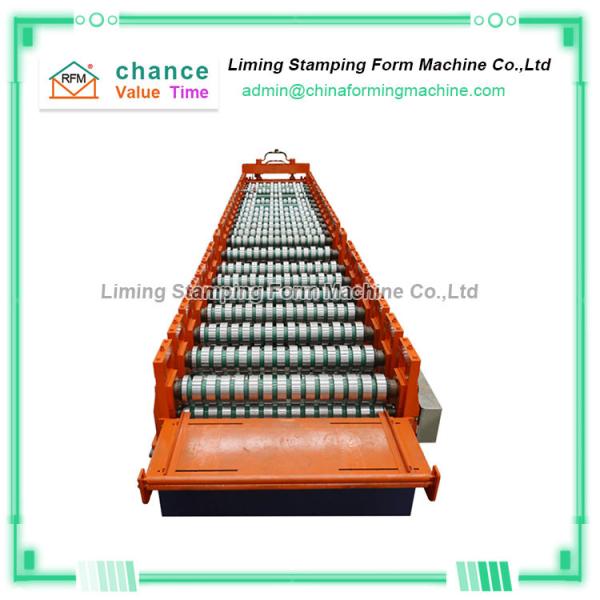

25M/Min Carriage Board Roll Forming Machine Galvanized Sheet Q235
25M/Min Carriage Board Roll Forming Machine Galvanized Sheet Q235
Specifications
Brand Name :
LIMING
Model Number :
LM-carr12
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Applicable Industries: :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , cold roll forming machinery
After Warranty Service: :
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Production Capacity: :
25M/min
Rolling thinckness: :
0.3-0.8mm
Warranty :
2 years
Voltage :
380V/220V/ 110V
Dimension(L*W*H): :
7800mm*2000mm*1250mm
width :
1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
Key Selling Points: :
Long Service Life
Description

Green environmental Carrier Board roll Forming Machine

The "green environmental carrier board roll forming machine" is reliable in quality and durable. The finished product produced by the "Green Carrier Roll Forming Machine" is strong, wear-resistant, and easy to install and unload.

The "green environmental carrier board roll forming machine" will be equipped with a set of lubrication systems. When the machine is running, it will automatically lubricate all bearings and motion guides of the gearbox gear mechanism.

The "green environmental carrier board roll forming machine" is composed of a loader, an uncoiler, a straightening machine, a turning bracket, a feed rail, a roll forming machine, spot welding, finished product straightening, flying saw and telescopic frame, and an electrical control system composition.

The "green environmental carrier board roll forming machine" has the characteristics of simple and reasonable structure, strong storage capacity, stable and reliable operation.

The "green environmental carrier board roll forming machine" can be customized for transport plates with a width of 500-1800mm and a thickness of 1-5mm.

Technical parameters of Green environmental Carrier Board roll Forming Machine

Green environmental Carrier Board roll Forming Machine
Feeding material Galvanized sheet Q235
Thickness of the plate 2mm
Coil width 1200mm
Machine size About 60000mmX1600mmX1000mm
Diameter of the axle Φ130mm
Rolling material Gcr15
Rolling stages 11stages
Productivity 10-12m/min
Total power 15kw+15kw+7.5kw
Voltage 380V 60Hz 3phase or as requirement
Weight About 7T
Base frame 400H steel
Side board thickness 25mm
Cutting blade Cr12 with heat treatment
Cutting system Hydraulic cutting system after forming
Control cabinet PLC and frequency changer in it
