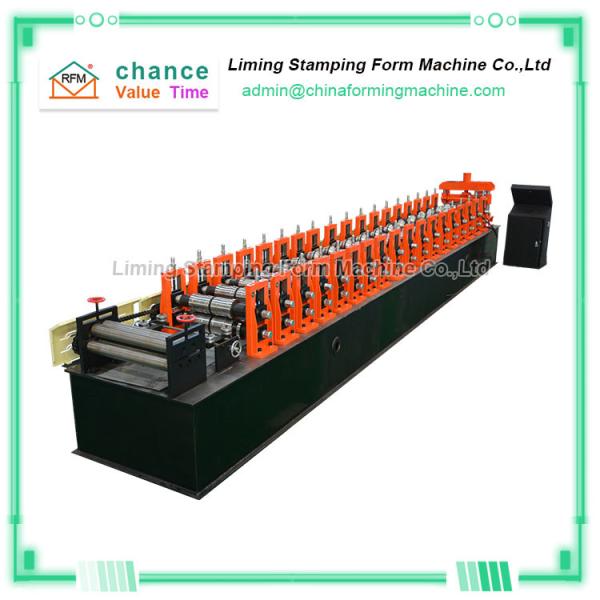

Dustproof Carriage Board Roll Forming Machine 12m/min
Dustproof Carriage Board Roll Forming Machine 12m/min
Specifications
Brand Name :
LIMING
Model Number :
LM-carr6
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Type: :
Tile Forming Machine
Tile Type: :
Steel
Production Capacity: :
8-12m/min
Condition: :
New
Warranty :
2 years
Voltage :
380v 3ph 50hz
Dimension(L*W*H): :
7800*1500*1200mm
Cutting blade material: :
Cr 12 High Grade Steel
Weight: :
6.5 ton
Description

Model 1150 Dustproof Carriage Board Roll Forming Machine

With the continuous emergence of new materials, the development of the automobile manufacturing industry has become more comprehensive and standardized. We can produce products that meet our needs through the professional "model 1150 dustproof carriage board roll forming machine" and help improve the efficiency of equipment assembly.

With the rise of the material industry, reducing the weight of heavy trucks will also be a development trend. Through technological improvement, the manufacturing quality of the "model 1150 dustproof carriage board roll forming machine" can be improved, the quality of the car body can be reduced, and the car body carrying capacity can be improved.

"model 1150 dustproof carriage board roll forming machine" has high raw material utilization rate. Users can use the "model 1150 dustproof carriage board roll forming machine" to produce car plates, while also helping the society save energy and meet environmental protection requirements.

Technical parameters of Model 1150 Dustproof Carriage Board Roll Forming Machine

Material Spec car panel forming machine
Main motor power 4.0kw
Forming speed 8-12 m/min
Diameter of roller 80 millimeter
Thickness of input sheet 1.0-3.0 millimeter
The width of the plate 1200 millimeter
The effective of the plate 1080 millimeter
Hydraulic station pressure 4kw
Hydraulic pressure 10 - 12Mpa
Total Weight 4.5 ton
Voltage 380 volt
Roll stand 13 groups
Controlling system PLC automatic frequency convertion controlling system.
Size length*width*high 6.0m*1.7m*1.3m
Roller material 9Cr-Si quenched
Material of cutter fly saw incise
Molding method overall shape
