350h Steel Wall Panel Machines 900mm Feeding Width
350h Steel Wall Panel Machines 900mm Feeding Width
Specifications
Brand Name :
LIMING
Model Number :
LM-cladding10
Certification :
CE、ISO、BV
Place of Origin :
Hebei China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60set/Year
Delivery Time :
35 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
machine frame: :
350h steel
Rolling thinckness: :
0.3-0.8mm
Tile Type: :
Colored Steel
Production Capacity: :
8-12 m/min
production experience: :
25 years
Feeding width: :
900mm
Weight: :
3000kg-20000kg
Roller material: :
45#steel Chrome Plated
Warranty: :
2 years
Dimension(L*W*H): :
6500mm*1300mm*1400mm
Description

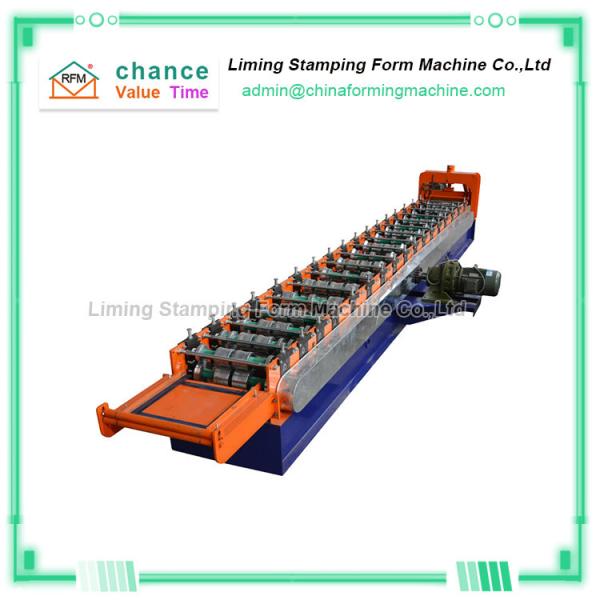

Cladding Wall Metal Sheet Panel Roll Forming Machine Price

The surface of the metal exterior wall suspension panel produced by "Cladding Wall Metal Sheet panel Roll Forming Machine price" is a specially treated high-quality color embossed metal plate. The middle layer is a flame-retardant rigid high-density polyurethane foam insulation layer, and its bottom surface is used for heat insulation. Aluminum foil protective layer for heat preservation and moisture proof.

When we want to renovate old houses, we can also choose metal exterior wall panels produced at the "Cladding Wall Metal Sheet panel Roll Forming Machine price", which will completely solve the problems of peeling, penetration, cooling, condensation and mold.

Of course, the metal exterior wall panels produced at the "Cladding Wall Metal Sheet panel Roll Forming Machine price" also have good self-cleaning ability, and also have the functions of anti-corrosion, rust prevention, sound insulation and heat preservation. In summary, "The price of the coated sheet rolling machine is very promising.

The "Cladding Wall Metal Sheet panel Roll Forming Machine price" is controlled by the computer controller program, which automatically determines the length, automatically cuts, and operates through the touch screen. The operation is simple and only one person can operate.

Main parameters of Cladding Wall Metal Sheet Panel Roll Forming Machine Price

1 Suitable to process Color steel plate
2 Thickness of the plate 0.3-0.8mm
3 De-coiler Manual one, can load 5 tons raw material
4 Rollers for forming 13-15 rows
5 Diameter of the roller 60mm
6 Rolling material Carbon Steel 45#
7 Main motor power 4kw
8 Productivity 10-15m/min
9 Cutting method Cr12
10 Hydraulic cutting power 4kw
11 Control system Delta PLC control
12 Side panel of machine as customers request
13 Main structure of the machine Steel plate welded
14 Dimensions 4.8*0.8*1.2m
15 Weight About 2 tons
16 Voltage 380V 50Hz 3phases(changeable as needs)
