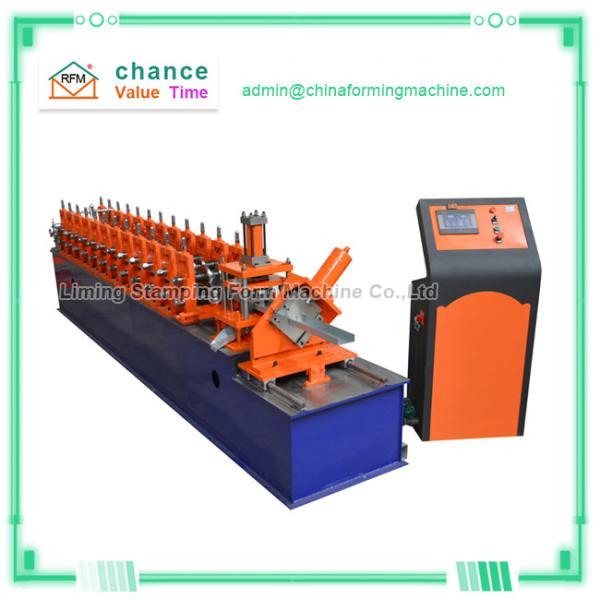

Hotel Ceiling Partition Wall C U Type Keel Forming Machine Gr12 Wheel 12 Lanes
Hotel Ceiling Partition Wall C U Type Keel Forming Machine Gr12 Wheel 12 Lanes
Specifications
Brand Name :
LIMING
Model Number :
LM-LG-36
Certification :
CE、ISO
Place of Origin :
Hebei China
MOQ :
1
Price :
USB 23000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Name :
CU roll forming machine
Machinery Test Report :
Provided
Type :
roll forming machine
Tile Type :
steel
Warranty :
12 month
Servo controller :
Servo controller
plc brand :
Delta
Weight :
4.5T
product speed :
30-40m/min
After-sales Service Provided :
Engineers available to service machinery overseas
Description

Hotel Ceiling Partition Wall C U Type Keel Forming Machine Gr12 Wheel 12 Lanes

When performing ceiling and partitions during hotel decoration, the designer will consider the safety, longevity, beauty, and cleanliness of the hotel, and choose to use'C-shaped keel' and'U-shaped keel' as the'ceiling' and The main frame of the'partition wall'. Therefore, the'C'U'-shaped keel forming machine is needed to help produce the'C'-shaped keel and the'U-shaped keel.

The'C'U' type keel forming machine can produce two types of keel profiles ('C-shaped keel' and'U-shaped keel'), so you do not need to buy two keel machines to perform the comparison of the'C-shaped keel' and the'U-shaped keel. The production of "shaped keel" can help you greatly save space and cost.

The ‘C’U’ keel forming machine is equipped with a high-strength bracket and an Omron encoder to ensure that the counter slipping and inaccurate counting problems will not occur during high-speed production.

‘C’U’ type keel forming machine, the whole machine is controlled by PLC electric control system, "operation is simple and easy to learn".

At the same time, we have a professional team that can provide you with a cost-effective configuration of the'C'U' keel forming machine according to your country and region to meet your purchase needs, so as to ensure that you buy a value-for-money machine.

Hotel Ceiling Partition Wall C U Type Keel Forming Machine Gr12 Wheel 12 Lanes

Sidewall structure Memorial Archway Type
Roller Station 12 Steps
Roller Material Cr12 Steel,after rough turning then NC Lathe
Shaft diameter 50mm
Shaft material 45# steel with forging treatment
Motor Power Hydraulic 5 5KW
Reducer Type 250#
Production Speed 50m/min(include forming/utting)
Transmission Gear and Sprocket
Cutting Device Servo tracking cutting
Cutting Motor 5.5KW
Cutting Mold Cr12MoV

Hotel Ceiling Partition Wall C U Type Keel Forming Machine Gr12 Wheel 12 Lanes
