Reducer Drive Omega Keel Forming Machine 50m / Min Keel Forming Machine For House Ceiling
Reducer Drive Omega Keel Forming Machine 50m / Min Keel Forming Machine For House Ceiling
Specifications
Brand Name :
LIMING
Model Number :
LM-LG-38
Certification :
CE、ISO、SGS
Place of Origin :
Botou Hebei China
MOQ :
1
Price :
USD26000-USD28000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200set/Year
Delivery Time :
40 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Name :
Omega Forming Machine
Machinery Test Report :
Provided
Type :
roll forming machine
Forming pass :
12 lanes
Warranty :
12 month
Use :
ROOF
Core Components :
PLC（Delta）
Weight :
5T
product speed :
40m/min
After-sales Service Provided :
Engineers available to service machinery overseas
Description

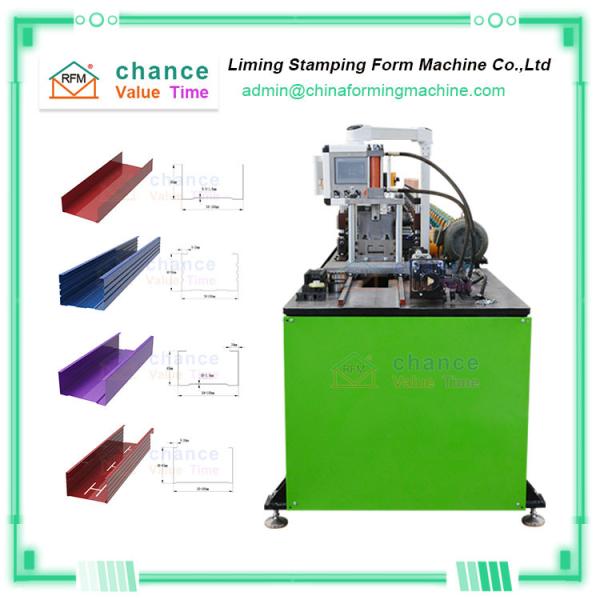

Reducer Drive Omega Keel Forming Machine 50m / Min Keel Forming Machine For House Ceiling

Omega keel is one of the main "materials" for roof decoration. Decoration workers often use Omega as the skeleton of the ceiling. Omega keel is very popular because of its advantages of easy installation, anti-corrosion, and strong load-bearing capacity. So we can provide Omega keel forming machine to help you produce Omega keel.

The Omega keel forming machine integrates various production processes such as uncoiling, feeding, forming, and cutting, and controls the whole machine through the PLC electronic control system, so that only one person can control the entire production process.

In order to improve the production efficiency of the Omega keel forming machine, the Omega keel forming machine adopts a servo twist-off shear, so that the Omega keel forming machine can cut without stopping the machine.

At the same time, the products produced by the Omega keel forming machine have good linearity, convenient and fast installation, no deformation of the cutting cut and no burrs, and are well received by the decoration industry and the engineering industry.

Reducer Drive Omega Keel Forming Machine 50m / Min Keel Forming Machine For House Ceiling

Article No. Item Name Specification
1 Effective width As customer' drawing
2 Thickness of feeding material 0.3-0.8 mm coil sheet
3 Roller station 8-12 stations
4 Shaft Diameter 55 mm
5 Productivity 20-40 m/min
6 Rollers' material 45# steel with 0.05mm chrome
7 Shaft material 45# steel with 0.05mm chromewith 0.05mm chrome
8 Weight 3.5-5 tons
9 length 4.5 m
10 Voltage 380V 50Hz 3phases
11 Control PLC
12 Decoiler 5 tons
13 Motor 3-5.5 kw
14 Driving way Chain transmission
15 Chain size 0.6-2 inch
16 Cutting system Hydraulic cutter

Reducer Drive Omega Keel Forming Machine 50m / Min Keel Forming Machine For House Ceiling
